Cold Rolled Grain Oriented Electrical Steel Grade 35g145 For Large Motor
Cold Rolled Grain Oriented Electrical Steel Grade 35g145 For Large Motor
Specifications
Brand Name :
JC
Model Number :
35G145
Certification :
SGS，CE,UL
Place of Origin :
China
MOQ :
1
Price :
consult
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
200Ton/week
Delivery Time :
5 days
Packaging Details :
Standard export package for ocean transportation
Trademark :
Baosteel; WISCO; Nippon Steel; JFE; AK
Coating :
Electro Galvanized, Hot Dip Galvanized
Coating Color :
RAL Color
Impact Test :
No Crack
Length :
1000mm-2000mm
Material :
CRGO&CRNGO
Surface :
Smooth
Thickness :
0.23mm-0.35mm
Grade :
M1, M2, M3, M4
Package :
Standard Export Packing
Width :
1000mm-1250mm
Type: :
Oriented Silicon Steel
Standard: :
GB, AISI, ASTM, DIN, JIS
Technique: :
Cold Rolled
Shape: :
Coil
Transport Package: :
Standard Export Package for Ocean Transportation
Trademark: :
Baosteel; WISCO; Nippon Steel; JE; AK
Color :
Silvery
Core :
CRGO
Insulation :
CRNGO
MOQ :
1 Ton
Packaging :
Wooden Pallet
Tolerance :
±0.02mm
Description

Oriented Electrical Steel Grade 35g145 Used for Large Motor

Basic Info.

Model NO.
35G145
Trademark
Baosteel
Origin
China
HS Code
72251100
Production Capacity
5000mt/Month

Product Description

Ordering Instruction(for prime coils or slit coils):
1, Which Grade? if you do not know the exact grade, please tell us below:
1), What's the thickness of the material?
2), What's the core losses @1.7T/50Hz(or 60Hz), for Non-Oriented electrical steel, please tell the core cosses@ 1.5T/50Hz or 60Hz;
2, What's the desination or discharge port?
3, How about the quantity?

If any technical issue about the prime coils or related to cores, welcome to contact us anytime.


Detailed description as below:
Major Manufacturer BAOSTEEL, WISCO, Nippon Steel, JFE, AK
Grade CRGO:
20ZDKH75, B20P075, B20P070, B18R070
B23G110, B23G100, B23P100, B23R095, B23R090, 23ZH90,23QG090, B23R080
27Q120, 27QG100, 27QG095, B27P120, B27P100, B27P095
30Q130, 30Q120, 30QG105; B30G130, B30G120, B30P120, B30P105
35Q155, B35G155, 35Z155
CRNGO:
B35A270, B35A250, B35A230, B35A300, 35WW270,35WW250,35WW230
B50A800, B50A600, B50A470, B50A400, B50A310, B50A290, B50A250, B50A1300, B50A1000
Nominal thickness 0.18mm, 0.20mm, 0.23mm,0.27mm,0.30mm,0.35mm, 0.5mm
Coil ID 508mm
Weight 2MT~8MT
Standard EN 10106,IEC 60404-8-4,ASTM,DIN,GB,JIS
Form Cold Rolled Strip
Delivery Lead Time 7~15 days after T/T prepayment or L/C date
Packing Standard export package for ocean transportation
Application All kinds of transformer, reactor,filter,inverter

Specification of CRGO silicon steel products
Type Grade Thickness (mm) Available width range(mm) ID Density (kg/dm³) P17/50Max.Core Loss(W/kg) B8Min.Induction(T)
Common Type B23G110 0.23 700-1200 508 7.65 1.10 1.80
B27G120 0.27 1.20 1.80
B30G120 0.30 1.20 1.80
B30G130 1.30 1.80
B30G140 1.40 1.80
B35G135 0.35 1.35 1.80
B35G145 1.45 1.80
B35G155 1.55 1.80
High Induction Type B23P090 0.23 0.90 1.87
B23P095 0.95 1.87
B23P100 1.00 1.87
B27P095 0.27 0.95 1.88
B27P100 1.00 1.88
B27P110 1.10 1.88
B30P100 0.30 1.00 1.88
B30P105 1.05 1.88
B30P110 1.10 1.88
B30P120 1.20 1.88
B35P135 0.35 1.35 1.88
B35P155 1.55 1.88
Domain Refined High Induction Type B23R080 0.23 0.80 1.87
B23R085 0.85 1.87
B23R090 0.90 1.87
B27R090 0.27 0.90 1.87
B27R095 0.95 1.87
NOTE:
Detecting Basis GB/T3655-2000

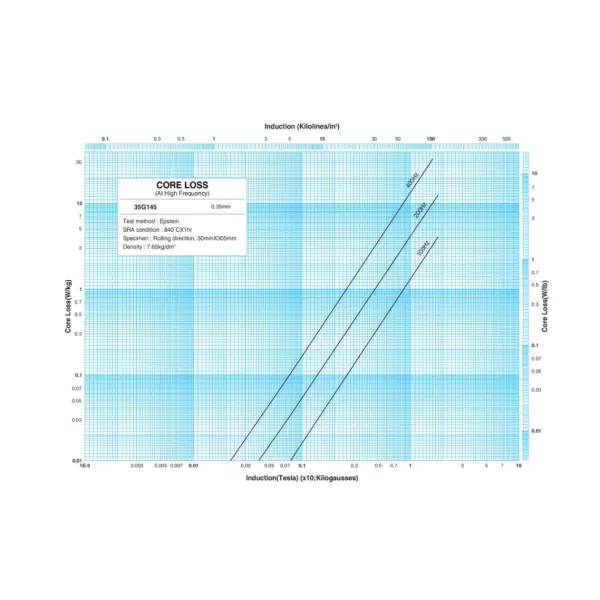

P17/50 means core loss of sample per kg at max.magnetic induction 1.7T and frequency 50HZ

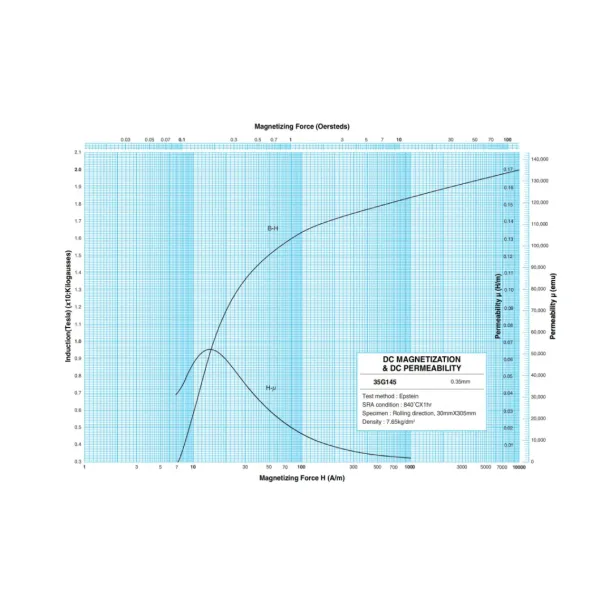

B8 means magnetic induction corresponding to 800A/m magnetic field intensity
Cold Rolled Grain Oriented Electrical Steel Grade 35g145 For Large MotorCold Rolled Grain Oriented Electrical Steel Grade 35g145 For Large Motor
