Product Description:

One of the key features of this machine is its Wire Tension control, which can be adjusted between 0-2.5Kg, ensuring that the wire is fed into the machine with consistent tension. This helps to prevent any irregularities in the winding, which could affect the performance of the transformer. Additionally, the Wire Feeding Tolerance is set at ±0.1mm, providing a high level of accuracy in the winding process.

The Wire Feeding Speed is adjustable between 0-1000rpm, allowing for a range of speeds to be used depending on the size and complexity of the coil being wound. The Winding Angle is also adjustable between 0-360°, making it possible to create coils with a variety of shapes and sizes. The Coil Form provided with this machine can be circular, oblong, elliptical, or rectangular, providing a high level of versatility in the types of coils that can be produced.

Another feature of this Transformer Winding Machine is the TIG Layer Insulation Welding Device, which helps to ensure that the coils are well-insulated and protected. This is particularly important in applications where the transformer will be used in harsh environments or exposed to extreme temperatures.

In summary, the Transformer Winding Machine is an essential piece of equipment for any manufacturer who requires high-quality coils for their transformers. With its precise wire tension control, adjustable wire feeding speed, and winding angle, this machine can create coils with a variety of shapes and sizes. The use of a TIG Layer Insulation Welding Device ensures that the coils are well-protected and insulated. This Foil Winding Machine for Transformer LV Coils, Electric Transformers, and more is a reliable and efficient solution for all your coil-winding needs.

Features:

• Product Name: Transformer Winding Machine
• Winding Direction: Left/Right
• Wire Specification: Enameled Wire
• Outer Diameter Of Wire Coil: ≤ 600mm
• Power Supply: AC380V/50Hz
• Winding Speed: 0-1000rpm

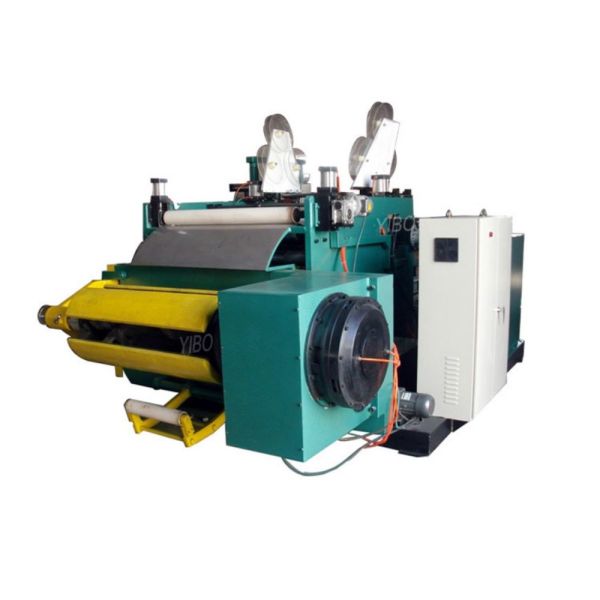

This Electric transformers winding machine is an Intelligent pressure roller winding machine with an Electronic Control System that can handle Enameled Wire. The machine can wind in either a Left or Right direction, and can accommodate wire coils with an outer diameter of up to 600mm. The machine is powered by AC380V/50Hz and has a winding speed range of 0-1000rpm.

Technical Parameters:

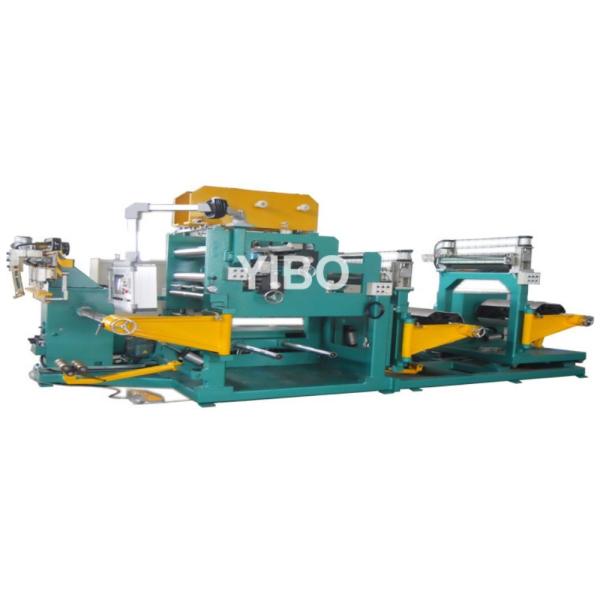

Uncoiling and rectifying device Foil Winding Machine for Transformer LV Coils, WINDING MACHINE, Intelligent pressure roller winding machine

Applications:

Designed for electronic control system foil coiling winding, this machine has an axial height of coil of up to 800mm, making it suitable for a wide range of applications. It is available in both one ton and two ton capacities, allowing you to choose the right one for your specific needs.

The winding direction of the JC 90Q0 Transformer Winding Machine can be set to either left or right, depending on your requirements. It has a power supply of AC380V/50Hz and a power consumption of 2.2KW, ensuring energy efficiency and cost savings.

The winding pitch of this machine can be set between 0 and 999mm, giving you complete control over the winding process. Its electronic control system ensures precision and accuracy in every winding job.

The JC 90Q0 Transformer Winding Machine is ideal for various occasions and scenarios. It can be used in the production of transformers, inductors, coils, solenoids, and other electronic components. Its compact design and ease of use make it suitable for use in small workshops, factories, and laboratories.

With a delivery time of just 5 days and export standard packaging, you can get your JC 90Q0 Transformer Winding Machine up and running in no time. Payment terms include L/C, T/T, Western Union, and MoneyGram, giving you flexibility in your payment options.

Support and Services:

Our Transformer Winding Machine product comes with comprehensive technical support and services to ensure optimal performance and longevity. Our team of experienced technicians is available to provide installation, training, and ongoing support for our customers. We also offer maintenance and repair services to keep your machine in top condition. Additionally, we provide spare parts and upgrades to keep your machine up-to-date with the latest technology and industry standards.

Packing and Shipping:

Product Packaging:

• One Transformer Winding Machine
• Instruction Manual
• Power Cord
• Tool Kit

Shipping:

• Shipping Method: UPS Ground
• Delivery Time: 3-5 business days
• Shipping Cost: $50.00
• Tracking number will be provided once the item has been shipped.

FAQ:

A: The brand name of this Transformer Winding Machine is JC.

Q: What is the model number of this Transformer Winding Machine?

A: The model number of this Transformer Winding Machine is 90Q0.

Q: What are the certifications of this Transformer Winding Machine?

A: This Transformer Winding Machine is certified by SGS, CE, and UL.

Q: Where is this Transformer Winding Machine made?

A: This Transformer Winding Machine is made in China.

Q: What is the minimum order quantity for this Transformer Winding Machine?

A: The minimum order quantity for this Transformer Winding Machine is 1 piece.

Q: What is the price of this Transformer Winding Machine?

A: Please consult us for the price of this Transformer Winding Machine.

Q: What are the payment terms for this Transformer Winding Machine?

A: The payment terms for this Transformer Winding Machine are L/C, T/T, Western Union, and MoneyGram.

Q: What is the supply ability of this Transformer Winding Machine?

A: The supply ability of this Transformer Winding Machine is 100 pieces per month.

Q: What is the delivery time for this Transformer Winding Machine?

A: The delivery time for this Transformer Winding Machine is 5 days.

Q: How is this Transformer Winding Machine packaged for shipping?

A: This Transformer Winding Machine is packaged using export standard packaging.
