ZX120 Piston Rod 0789603 Hitachi Bucket Cylinder ZX200-3 Arm Cylinder 0789503
ZX120 Piston Rod 0789603 Hitachi Bucket Cylinder ZX200-3 Arm Cylinder 0789503
ZX120 Piston Rod 0789603 Hitachi Bucket Cylinder ZX200-3 Arm Cylinder 0789503
ZX120 Piston Rod 0789603 Hitachi Bucket Cylinder ZX200-3 Arm Cylinder 0789503
ZX120 Piston Rod 0789603 Hitachi Bucket Cylinder ZX200-3 Arm Cylinder 0789503
ZX120 Piston Rod 0789603 Hitachi Bucket Cylinder ZX200-3 Arm Cylinder 0789503
Specifications
Brand Name :
PNC
Model Number :
Hitachi
Place of Origin :
China
MOQ :
1PC
Price :
Negotiable
Payment Terms :
T/T, Western Union, Paypal
Supply Ability :
3000pcs/month
Delivery Time :
1-3 working days
Packaging Details :
Wooden Case
Machine :
Hitachi Crawler Excavator
Model No. :
ZX120, ZX200-3
Part No. :
0789603, 0789503
Quality :
China aftermarket
Warranty :
3 months
Weight :
50-70kgs
Stock :
3000pcs
Product name :
0789603 Piston Rod, ZX200-3 Piston Rod
Description

ZX120 Piston Rod 0789603 Hitachi Bucket Cylinder ZX200-3 Arm Cylinder 0789503

Description

 0789603 Piston Rod, ZX200-3 Piston Rod, Hitachi Cylinder Piston Rod

Application

Hitachi ZX120 Crawler Excavator

Model

ZX120, ZX135US, ZX200-3

Part No.

0789603, 0789503

Quality

China aftermarket

Weight

50-70kgs

Packing

Carton box

MOQ

1PC

Lead time

About 1-3 working days

Payment

T/T, Western union, Paypal, Paysend, Wechat, Alipay

Warranty

3 Months

Shipping Port

Huangpu Old Port, Shenzhen Yantian,Guangzhou

Compatible equipment models: 0789603:
ZX120 ZX120-3 ZX120-E ZX120-HCMC ZX130-AMS ZX130-HCME ZX130H ZX130K-3 ZX130W ZX130W-AMS ZX135US ZX135US-E

ZX135USK ZX200-3 ZX210H-3 ZX210K-3 ZX225USR-3 ZX225USRK-3 ZX240-3 ZX250H-3 ZX250K-3 ZX330-3 ZX350H-3 ZX350K-3

ZX450-3 ZX470H-3 Hitachi

ZX120 Piston Rod 0789603 Hitachi Bucket Cylinder ZX200-3 Arm Cylinder 0789503

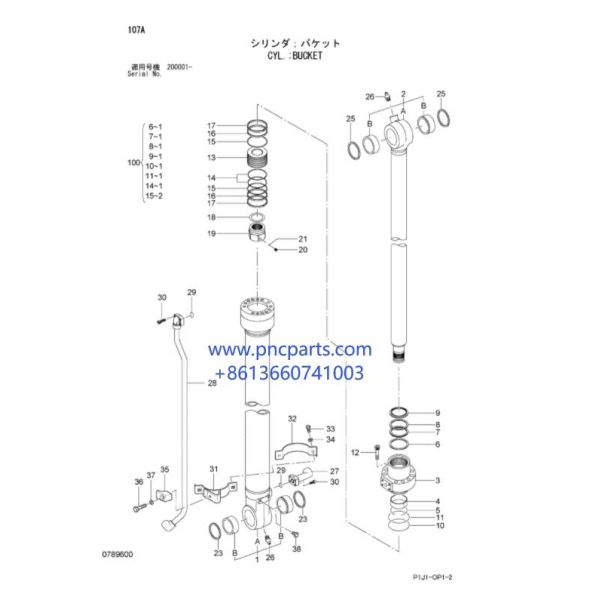

Parts on group zx120-3 bucket cylinder:

Pos. Part No Qty Parts name
4423853 [1] CYL.;BUCKET
4423853 [1] CYL.;BUCKET
1. 0789601 [1] TUBE;CYL. ASS'Y
1. 0789601 [1] TUBE;CYL. ASS'Y
1A. 0789602 [1] TUBE;CYL.
1A. 0789602 [1] TUBE;CYL.
1B. 4365897 [2] BUSHING;PIN
1B. 4365897 [2] BUSHING;PIN
2. 0789603 [1] ROD;PISTON ASS'Y
2. 0789603 [1] ROD;PISTON ASS'Y
2A. 0789604 [1] ROD;PISTON
2A. 0789604 [1] ROD;PISTON
2B. 4365448 [2] BUSHING;PIN
2B. 4365448 [2] BUSHING;PIN
3. 0789605 [1] HEAD;CYL.
3. 0789605 [1] HEAD;CYL.
4. 0310304 [1] BUSHING;PIN
4. 0310304 [1] BUSHING;PIN
5. 0271304 [1] RING;RETAINING
5. 0271304 [1] RING;RETAINING
6. 0789306 [1] RING
6. 0789306 [1] RING
7. 0271309 [1] PACKING;U-RING
7. 0271309 [1] PACKING;U-RING
8. 0271310 [1] RING;BACK-UP
8. 0271310 [1] RING;BACK-UP
9. 0666806 [1] RING;WIPER
9. 0666806 [1] RING;WIPER
10. A811095 [1] O-RING
10. A811095 [1] O-RING
11. 0254905 [1] RING;BACK-UP
11. 0254905 [1] RING;BACK-UP
12. 0408805 [12] BOLT;SOCKET
12. 0408805 [12] BOLT;SOCKET
13. 0686705 [1] PISTON
13. 0686705 [1] PISTON
14. 0240807 [1] RING;SEAL
14. 0240807 [1] RING;SEAL
15. 0686706 [2] RING;BACK-UP
15. 0686706 [2] RING;BACK-UP
16. 0686707 [2] RING
16. 0686707 [2] RING
17. 0254908 [2] RING
17. 0254908 [2] RING
18. 0326007 [1] SHIM
18. 0326007 [1] SHIM
19. 0789606 [1] NUT
19. 0789606 [1] NUT
20. 0310612 [1] SCREW;SET
20. 0310612 [1] SCREW;SET
21. 0111818 [1] BALL;STEEL
21. 0111818 [1] BALL;STEEL
23. 0409111 [2] RING;WIPER
23. 0409111 [2] RING;WIPER
25. 0409112 [2] RING;WIPER
25. 0409112 [2] RING;WIPER
26. J75481 [2] FITTING;GREASE
26. J75481 [2] FITTING;GREASE
27. 8086116 [1] PIPE
27. 8086116 [1] PIPE
28. 0789610 [1] PIPE
28. 0789610 [1] PIPE
29. 4509181 [2] O-RING
29. 4509181 [2] O-RING
30. M340825 [8] BOLT;SOCKET
30. M340825 [8] BOLT;SOCKET
31-37. 0789608 [1] KIT;BAND
31-37. 0789608 [1] KIT;BAND
31. 0789609 [1] BAND
31. 0789609 [1] BAND
32. 0326012 [1] BAND
32. 0326012 [1] BAND
33. 0408815 [2] BOLT
33. 0408815 [2] BOLT
34. 0325913 [2] WASHER
34. 0325913 [2] WASHER
35. 0310616 [1] HOLDER
35. 0310616 [1] HOLDER
36. 0309022 [1] BOLT
36. 0309022 [1] BOLT
37. 0208516 [1] WASHER;SPRING
37. 0208516 [1] WASHER;SPRING
38. 0409110 [2] BOLT
38. 0409110 [2] BOLT
100. 4448397 [1] KIT;SEAL
100. 4448397 [1] KIT;SEAL

ZX120 Piston Rod 0789603 Hitachi Bucket Cylinder ZX200-3 Arm Cylinder 0789503

More Hitachi piston rod we supply:

MODEL PART NO. WEIGHT(KGS)
ZX120 Piston Rod 0789603 40
ZX120 Piston Rod 0789503 73
ZX180-3 Piston Rod 1129102 88
ZX180-3 Piston Rod 1128302 134
ZX230 Piston Rod 0932802 81
ZX230 Piston Rod 0937403 292
ZX200 Piston Rod 0789203 179
ZX200 Piston Rod 0789103 127
ZX200-3 Piston Rod 1102302 100
ZX200-3 Piston Rod 1100502 154
ZX240-3 Piston Rod 0974902 150
ZX240-3 Piston Rod 0974302 135

Warranty Statement:

1. Warranty Type: We will replace the product which have quality problem.


2. Warranty Period: Supply 3 months warranty for the products from the date of arrival. Customer should check the items according to the order list after arrival.

Contact with us and offer the data, photos of the problem items

3. You need to pay for the replacement charge for following condition:

* Wrong Order from customer.
* Natural Disasters cause the damage.
* Error installation, improper use.
* The machine and spare parts work over time and over load.
* Lost by any condition.
* Human element destroyed.
* Corrode with rust during stock and running.
* Warranty Expired.


FAQ :

Q1: How can i make payment ?

A : Bank transfer, Western union, Paypal, Paysend, or RMB.
bank transfer take 2-3days, while we can arrange order once received the remittance copy.

Q2: How fast you can do shipment?

A: Stock items take 1-2days, no stock items 5-7 working days. It depends on the items and the quantity of your order. We will try best to ship goods on time,

won't let you and your client down.

Q3: If we dont find what we want on your website, what should we do?

A: talk with us directly on whatsapp, email, wechat, or phone, we will check inquirys asap. excavator parts have thousands kinds, it's not possible to post

all production online.

Q4. Do your product been tested before delivery?

A: Yes, all product been tested to make sure they are qualified to sell.

Q5: Can we buy 1 pc of each item for quality testing?
A: Yes, we value every customer, no matter order amount small or big, with grateful for your trust.
