Specifications
Brand Name :
QIANGDI
Model Number :
TG-100tofu
Certification :
ISO9001
Place of Origin :
CHINA
MOQ :
1pcs
Price :
USD2000~3000
Payment Terms :
T/T, Western Union, MoneyGram,PAYPAL
Supply Ability :
100pcs per month
Delivery Time :
in 10 days after payment received
Packaging Details :
plywood case
voltage :
380V/50Hz，3PH
grinder power :
1.5KW
weight :
280KG
size :
1620*680*1550MM
TOFU capacity :
60-80KG/HR
heating power :
18KW
Description

commercial automatic tofu machine/tofu making machine/tofu panner production equipment

automatic tofu making machine specification:

Model TG-30 TG-50 TG-80 TG-100 TG-150 TG-250
Capacity(soaked beans) 5-6KG/HR 10-12KG/HR 15-20KG/HR 20-30KG/HR 40-60KG/HR 80-100KG/HR
heating supply electric electric or LPG(NEED CUSTOMIZE) electric or LPG(NEED CUSTOMIZE)

External steam

boiler, Steam

capacity:>25kg/hr

External steam

boiler, Steam

capacity:>50kg/hr

External steam

boiler, Steam

capacity:>80kg/hr
heating power 6kw 12kw 18kw 18KW 48KW 98KW
cooking tank capacity 80L/Hr 120L/Hr 160L/Hr 220L/Hr 600-700L/Hr 1100L/Hr
weight/G.W 55/70kg 105/120kg 130/150kg 140/160kg 250/300kg 420/500kg
Over dimmensions

1060*500

*1350mm

600*1200

*1550mm

680*1690

*1550mm

500*600

*1250mm

1000*1200

*1850mm

1400*1800

*2200mm
Main functions Beans grinding, okara separating, twice grinding,soymilk cooking

Y-3 air force tofu press machine with two rows

Technique datas:
diameter of air cylinder :63mm, route:150mm
Maximun pressure:0.8MPa
tofu mould:420*320*80mm
machine size:950*950*1300mm
Y-2 can press two mould once only.

automatic tofu making machine Structure:

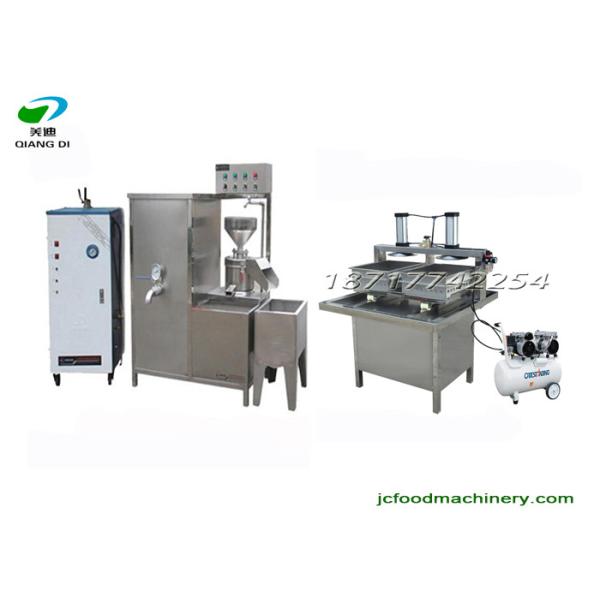

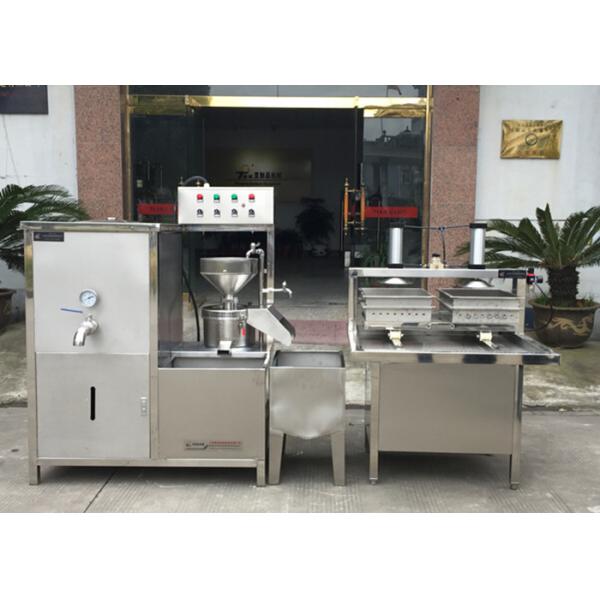

The complete set of TG-100 equipment stainless steel structure, composed of the grinding and separating machine ,cooking and heating system composed of suction pump ,steam boiler , cooking barrel and ecectric control system.The grinder and suction pump controlled respective. And the cooking barrel equipped with a thermometer, operate simple.

automatic tofu making machine features:
(1).Our hot water generating unit eliminates the need for an extra steam boiler.
(2).100L soymilk can be cooking to boiling point only 30 min.
(2).An attractive, compact design allows convenient use and easy cleaning. It also saves on floor space, essential in any business.

automatic tofu making machine applications:
This machine is ideal for a smaller producer of tofu or a growing business that wants to make the next step in expansion such as retail/wholesale tofu stores, tofu factories, supermarkets, hospital cafeterias, etc.

automatic tofu making machine pictures:

commercial automatic tofu machine/tofu making machine/tofu panner production equipment

commercial automatic tofu machine/tofu making machine/tofu panner production equipmentcommercial automatic tofu machine/tofu making machine/tofu panner production equipmentcommercial automatic tofu machine/tofu making machine/tofu panner production equipment
