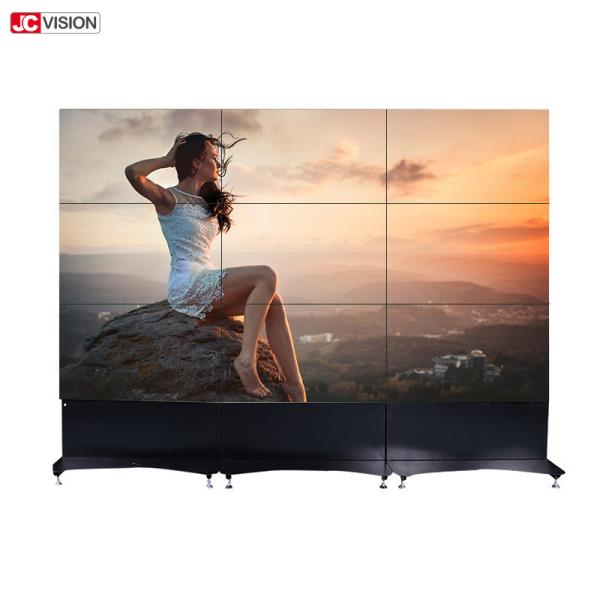

LED Commercial Wall Display , Infrared Remote Control Narrow Bezel Video Wall
LED Commercial Wall Display , Infrared Remote Control Narrow Bezel Video Wall
LED Commercial Wall Display , Infrared Remote Control Narrow Bezel Video Wall
LED Commercial Wall Display , Infrared Remote Control Narrow Bezel Video Wall
LED Commercial Wall Display , Infrared Remote Control Narrow Bezel Video Wall
LED Commercial Wall Display , Infrared Remote Control Narrow Bezel Video Wall
LED Commercial Wall Display , Infrared Remote Control Narrow Bezel Video Wall
LED Commercial Wall Display , Infrared Remote Control Narrow Bezel Video Wall
Specifications
Brand Name :
JCVISION
Model Number :
JC-VW470
Certification :
CE, Rohs, FCC
Place of Origin :
SHENZHEN, CHINA
MOQ :
1unit
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
1000 Unit/Units per Month
Delivery Time :
5-8 work days
Packaging Details :
wooden box
Pixel Pitch :
0.4845*0.4845
Input Voltage :
100~240V
Viewing Angle :
178°
Contrast Ratio :
3500:1
Response Time :
5ms
Bezel :
3.5mm
Aspect Ratio :
16 : 9
Display area :
1025.7*578.6
Resolution :
1920*1080
Net weight :
23KG
Description

JCVISION 47Inch LED Backlight LCD Video Wall With Narrow Bezel For Advertising

Specifications
Screen size 46'' with Samsung DID LCD screen( bezel 7.3mm) 3.5mm-5.3mm is optional
Aspect Ratio 16:9
Resolution 1920x1080
Color 8Bit,16.7M
Brightness (nits) 450cd/m2
Contrast 2000:1
Visual angle (H/V) 178°
Response time <=6ms
Life(hrs) >60,000(hrs)
Input and output
Composite Video Input 3(3xBNC)
YUV/YPbPR 1(3xBNC)
S-YC 1(2xBNC)
D-15 RGB Input(VGA) 1
HD 1
DVI 1
Audio Input 1
Composite Video Output 2(2xBNC)
Split Screen Support Picture in Picture(PIP/POP/PAP)
Power
Power supply AC100V~240V
Maximum power consumption 250W
Standby power consumption <=3W
Temperature
Working temperature 0°C~50°C
Working humidity 20%-80%
Appearance
Product dimension( W x H x D) mm 1025.65x579.84x126.73
Acessory
Cable Can supply different kinds of cable
Video Wall Controller(Built-in each screen)
Model No. US-P816A
Input CVBS 3*BNC inputs, support PAL/NTSC all formats, 2*BNC loop outputs
VGA 1*D15 port, support SVGA/XGA/WXGA
YPbPr/YCbCr 1* YPbPr/YCbCr input, support PAL/NTSC all formats, and 720P,1080I, HDTV
Y/C 2*BNC inputs, support PAL/NTSC all formats
Output LVDS Support signal or double LVDS output, and WUXGA (1920*1080) display
Operate mode Panel key operation(needs customization)
Standard RS232 port( provide free control software)
Infrared Remote Control Operation
Engineering software Customized
Working temperature 0~70 °C
working humidity 5~95 %RH
AC voltage power supply 100-240V/50, 60Hz
power consumption Max 300W,according to different screen models
Dimension 338×295×60(mm)
Weight About 3.5KG
