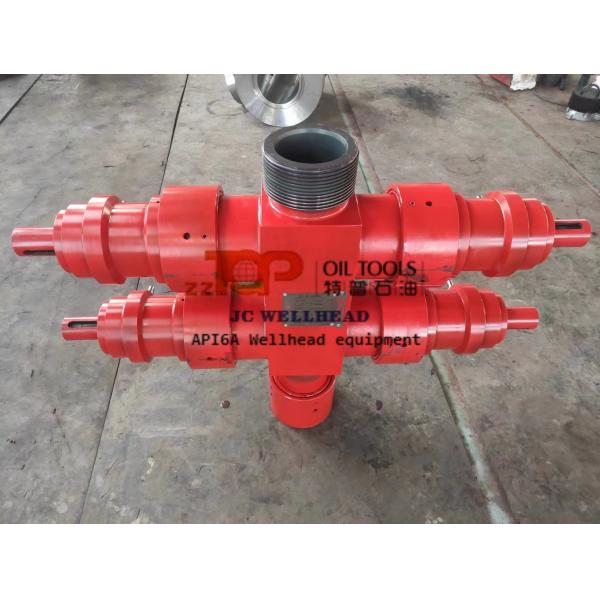

Hydraulic Double Ram Blowout Preventer / Wireline BOP For Well Control
Hydraulic Double Ram Blowout Preventer / Wireline BOP For Well Control
Hydraulic Double Ram Blowout Preventer / Wireline BOP For Well Control
Hydraulic Double Ram Blowout Preventer / Wireline BOP For Well Control
Specifications
Brand Name :
JC Wellhead
Model Number :
BOP FZ35-35
Certification :
API 16A
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
T/T, L/C, D/P
Supply Ability :
100 sets / month
Delivery Time :
10-25 days
Packaging Details :
Polywood case for land, air, ocean shipment
Application :
Oil well pressure control
Usage :
Slickline operation
Material :
Alloy steel forging
Production Level :
PLS 1-3
Temperature Class :
T
Standard :
API 16A
Product name :
Hydraulic Double Ram BOP
Specification :
FZ35-35
Working condition :
Standard
Delivery of BOP :
20 days
Description

Hydraulic Single Ram Blowout Preventer / Wireline BOP For Well Control

The hydraulic double RAM blowout preventer can seal casing pipe and drilling pipe when it has drilling tools inside the well bore. And it can also seal the annular space between the casing and casing or casing and tubing. It equipped with various sizes of ram assemblies and can seal all sizes of drilling pipes. When there is no pipe inside the well, please use the blind ram assembly to seal the well. In order to control the formation pressure effectively, the hydraulic double RAM blowout preventer can be equipped together with choke and Kill Manifold to balance the drilling pressure. With ram blowout preventer, it can realize well killing, and well cleaning when the well is closed.

Specification of Hydraulic double RAM BOP

Model WP (Psi) ID (in.) Sealed String Max. OD (in) Connection Service Environment Temperature
FZ18-21 3000 7 1/16” 3 1/2” 7 1/16" (Studded) Flange Crude oil, Water, Natural gas with H2S T-20 (-29 ℃ ~ + 121 ℃)
2FZ18-21 3000 7 1/16” 3 1/2” 7 1/16" (Studded) Flange
FZ18-35 5000 7 1/16” 3 1/2” 7 1/16" (Studded) Flange
2FZ18-35 5000 7 1/16” 3 1/2” 7 1/16" (Studded) Flange
FZ18-70 10000 7 1/16” 3 1/2” 7 1/16"(Studded) Flange
2FZ18-70 10000 7 1/16” 3 1/2” 7 1/16" (Studded) Flange
FZ23-14 2000 9” 5 1/2” 9"(Studded) Flange
FZ23-21 3000 9” 5 1/2” 9" (Studded) Flange
FZ23-35 5000 9” 5 1/2” 9" (Studded) Flange
2FZ23-35 5000 9” 5 1/2” 9" (Studded) Flange
FZ28-21 3000 11” ‍‍‍‍7” 11" (Studded) Flange
FZ28-35 5000 11” 7” 11" (Studded) Flange
2FZ28-35 5000 11” 7” 11" (Studded) Flange
FZ35-35 5000 13 5/8” 9 5/8” 13 5/8" (Studded) Flange
2FZ35-35‍‍‍‍ 5000 13 5/8” 9 5/8” 13 5/8" (Studded) Flange
FZ35-70 10000 13 5/8” 9 5/8” 13 5/8" (Studded) Flange
2FZ35-70 10000 13 5/8” 9 5/8” 13 5/8" (Studded) Flange

Hydraulic Double Ram Blowout Preventer / Wireline BOP For Well Control

About ZZ TOP OIL TOOLS

ZZ TOP OIL TOOLS is the manufacture and supply of the wellhead equipment, well surface testing equipment, well flow control equipment according to API 6A, API 16A, and API 16C. The main products are as below:

Wellhead valves: Gate Valves, Plug Valves, Choke Valves, Check Valves, Mud Valves and various wellhead valve parts etc.

Wellhead Manifold: Choke and Kill Manifold, Drilling Floor Manifold, Fracturing manifold, Well Testing Manifold.

Wellhead Equipment: Wellhead Christmas Tree / X-Tree, Casing Head, Casing Hanger, Tubing Head,Tubing Hanger, Casing Spool, Tubing Spool, Drilling Spool etc.

Wellhead Adapter: Spacer Spool / Riser Spool ,Flange Adapter, Union Flange, Double Studded Adapter Flange, Welded Neck Flange, Blind Flange,Companion Flange, Instrument Flange,

Wellhead Clamp & Hub etc.

Wellhead Integral Fittings: Hammer Union, Elbow, Swivel Joint, Block Cross, Block Tee, Straight Pipe, Pipe Loops etc.

Well Pressure Control Equipment: Annular BOP, RAM BOP, Sucker Rod BOP etc
