Annular Blowout Preventer / Double RAM Blowout Preventer For Well Control
Annular Blowout Preventer / Double RAM Blowout Preventer For Well Control
Annular Blowout Preventer / Double RAM Blowout Preventer For Well Control
Annular Blowout Preventer / Double RAM Blowout Preventer For Well Control
Specifications
Brand Name :
JC Wellhead
Model Number :
11" x 3M BOP
Certification :
API 6A
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
T/T, L/C, D/P
Supply Ability :
10 sets / month
Delivery Time :
30-45 days
Packaging Details :
Polywood case for land, air, ocean shipment
Application :
Oil well drilling operation
Usage :
Oil well pressure control equipment
Temperature Class :
T20
Standard :
API 16A
Product name :
Double Ram BOP
Specification :
11" x 3M Working pressure
Operated :
Hydraulic operated BOP
Top connection :
Studded Flange
Bottom connection :
Studded Flange
TYPE :
Annular BOP & RAM BOP
Description

Annual Blowout Preventer / Double RAM Blowout Preventer for Well Control

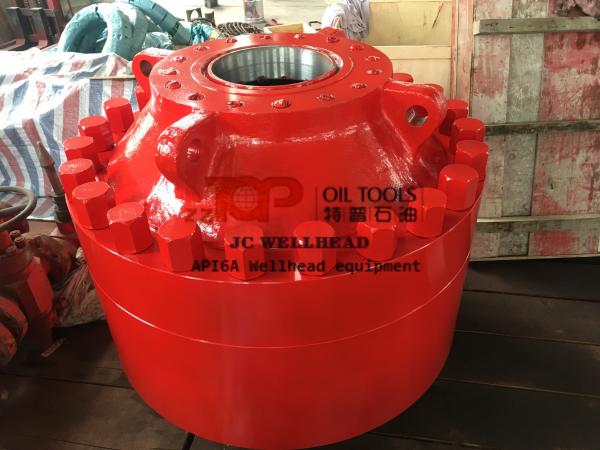

Annular Bop is applied for oil well drilling operation as the important part of the wellhead, which is strictly manufactured according to API 16A standard. And the Annular BOP must be used with hydraulic control system．It is usually with ram type BOP,but it can also be used independently

Ram blowout preventer (Ram BOP) is the important equipment widely used in onshore and offshore drilling. There are various kinds of Ram BOP, such as single ram BOP, double ram BOP, triple ram BOP, quadplex Ram BOP.

All ram BOPs are strictly manufactured as per API Spec 16A with high quality as Shaffer ram BOP, Cameron ram BOP, or Hydril ram BOP does.

Doule Ram BOP is a sort of well control BOP in oil well drilling operation, the hydraulic operated double Ram Bop is the important component of well drilling control equipment. Ram BOP consists of some main parts such as body, side door, cylinder, piston, ram shaft, locking shaft, cylinder head, and ram assembly etc. Oil well's sealing or opening is achieved by moving ram, which is driven by piston rod and piston with hydraulic force.

Specification of 11" x 3000 psi BOP

SR.NO Description
1 Ram Type Preventer, Double, 11", 3M, Specification Body Sub-Assembly : 11” Bore Size, 3,000psi Working Pressure, Double Cavity, Forge Build Type, T-20/250 Temperature Rating, NACE MR0175/ISO15156 for Sour Service Retained Fluid Rating, Standard Non Wellbore Elastomeric Materials, Red Paint Colour Body Connections:
Top Connection : 11" Bore Size, 3,000psi Working Pressure, API 6A Studded Type 6B Connection Type, Stainless Steel Inlay
Bottom Connection : 11" Bore Size, 3,000psi Working Pressure, API 6A Studded Type 6B Connection Type, Stainless Steel Inlay
Side Outlet Connection 1 : 3-1/8" Bore Size, 3,000psi Working Pressure, API 6A Studded Type 6B Connection Type, Stainless Steel Inlay
Side Outlet Connection 2 : 3-1/8" Bore Size, 3,000psi Working Pressure, API 6A Studded Type 6B Connection Type, Stainless Steel Inlay
Bonnet Sub-Assembly : 2 Sets of Standard Bonnet, Manual Lock Type Manufacturing Specifications: API 16A 4th Edition
Performance Level: PR2
2 Annular Type Preventer, 11", 3M
Specification
Body Sub-Assembly : 11” Bore Size, 3,000psi Working Pressure, Cavity, Forge Build Type, T-20/250 Temperature Rating, NACE
MR0175/ISO15156 for Sour Service Retained Fluid Rating, Standard – Seal Temperature: Bba Non Wellbore Elastomeric Materials, Nitrile,
Standard Temperature Packing Element, Red Paint Colour Body Connections:
Top Connection : 11" Bore Size, 3,000psi Working Pressure, API 6A Studded Type 6B Connection Type, Stainless Steel Inlay
Bottom Connection : 11" Bore Size, 3,000psi Working Pressure, API 6A Flanged Type 6B Connection Type, Stainless Steel Inlay
Special Features:
Hydraulic Operator Surface Coating - Xylan
Manufacturing Specifications: API 16A 4th Edition, Performance Level: PR1
3 Ram Blocks, 11”, 3-10M, RX, 2-7/8” to 5” Variable, Hang-off, Nace, API 16A Monogram
4 Ram Blocks, 11”, 3-10M, RX, 4-1/2” Pipe, Hang Off, Nace, API 16A Monogram
5 Ram Blocks, 11”, 3-10M, RX, Blind, Nace, API 16A Monogram
6 Packer, 11", 3-10M, RX, Pipe 1.9", H2S Rated, HNBR 30-350F
7 Packer, 11", 3-10M, RX, Blind, H2S Rated, HNBR 30-350F
8 Packer, 11", 3-10M, RX, Pipe 4-1/2", HNBR 30-350F
9 Seal, Top, 11", 3-10M, RX, Pipe/Shear/Variable Bore, HNBR 30-350F
10 Packer, 11", 3-10M, RX, Variable Bore 5" to 2-7/8", H2S Rated, NBR
11 Seal, Top, 11", 3-10M, RX, Pipe/Shear/Variable Bore, NBR 20-250F

Annular Blowout Preventer / Double RAM Blowout Preventer For Well ControlAnnular Blowout Preventer / Double RAM Blowout Preventer For Well Control

About ZZ TOP Oil Tools

ZZ TOP Oil Tools Co., Ltd, headquartered in Xi’an City, focused on the design and production of drill stem testing tools and wellhead equipment since 2010. With the business expanding, ZZ TOP Oil Tools jointed to build the factories for wellhead equipment under the brand " JC Wellhead" and downhole tools under the brand "Techcore".

* "JC Wellhead" was estabilished in 2010 in Yancheng city, specialized in design and manufacturing of the oilfield wellhead equipment conformed with API 6A specification.

* "Techcore Oil Tools" was re-built in 2016 in Baoji city, specialized in design and manufacturing of drill stem testing tools, coiled tubing tools, wireline tools and other downhole tools.

Wellhead Product scope

Wellhead valves: Gate Valves, Plug Valves, Choke Valves, Check Valves, Mud Valves and various wellhead valve parts etc.

Wellhead Manifold: Choke and Kill Manifold, Drilling Floor Manifold, Fracturing manifold, Well Testing Manifold.

Wellhead Equipment: Wellhead Christmas Tree / X-Tree, Casing Head, Casing Hanger, Tubing Head,Tubing Hanger, Casing Spool, Tubing Spool, Drilling Spool etc.

Wellhead Adapter: Spacer Spool / Riser Spool ,Flange Adapter, Union Flange, Double Studded Adapter Flange, Welded Neck Flange, Blind Flange,Companion Flange, Instrument Flange,

Wellhead Clamp & Hub etc.

Wellhead Integral Fittings: Hammer Union, Elbow, Swivel Joint, Block Cross, Block Tee, Straight Pipe, Pipe Loops etc.

Well Pressure Control Equipment: Annular BOP, RAM BOP, Sucker Rod BOP etc
