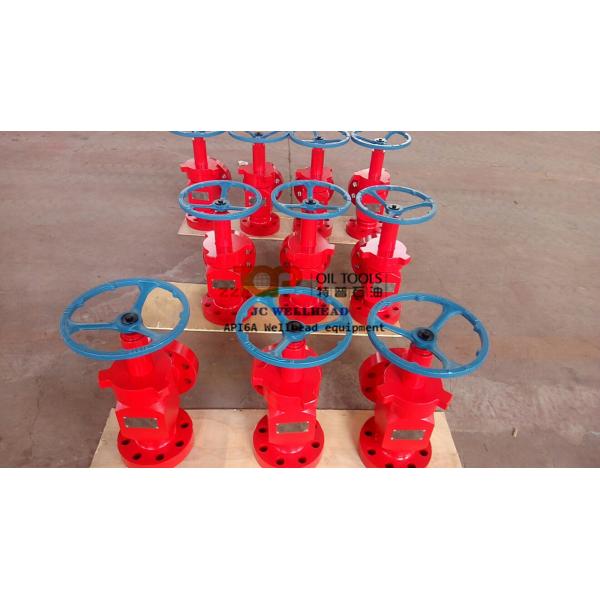

Class AA API 6A Adjustable Wellhead Choke Valve PLS 3
Class AA API 6A Adjustable Wellhead Choke Valve PLS 3
Class AA API 6A Adjustable Wellhead Choke Valve PLS 3
Class AA API 6A Adjustable Wellhead Choke Valve PLS 3
Specifications
Brand Name :
JC Wellhead
Model Number :
2 1/16" x 3000psi Choke Valve
Certification :
API 6A
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
T/T, L/C, D/P
Supply Ability :
300 sets / month
Delivery Time :
30-45 days
Packaging Details :
Polywood case for land, air, ocean shipment
Application :
Well Flow Control Service
Usage :
Wellhead Equipment
Material Class :
AA
Production Level :
PLS 3
Temperature Class :
U
Standard :
API 6A
Product name :
Adjustable choke valve
Working pressure :
3000 psi
Specification :
2 1/16" X 3000 PSI
Connection :
Adjustable H2 type
Description

Wellhead Choke Adjustable Assy API 6A Choke Valve ,2-1/16"-3K

The Choke Valve is designed and manufactured according to APi 6A specification. There are two types of choke valves including adjustable choke valve and positive choke valve. The choke valve is an important wellhead equipment installed in Wellhead Christmas Tree and Choke Manifold, which is used in well flow control service to reduce the pressure of a fluid from high pressure in the closed wellbore to atmospheric pressure. The H2 type adjustable choke valve may be adjusted (opened or closed) to closely control the pressure drop.

Features of the Adjustable Choke Valve

* Integral forged valve body of choke valve is with fine mechanical properties.

* It is easy to control the flowing and adjusting by the needle structure of choke valve

* Trims are made of material with fine wear resistance and scour resistance.

* Internal parts can be easily disassembled and replaced.

Detailed Specification of the Ajustable Choke Valve

NO DESCRIPTION
1 CHOKE,ADJUSTABLE ASSEMBLY, 2-9/16"-3000# SUPPLIED: CHOKE, ADJUSTABLE ASSEMBLY, 2-9/16" - 3000# WP FLANGE INLET AND OUTLET,WITH 1" MAXIMUM ORIFICE (SCALE TO 64/64), ALL EQUIPMENT SHALL BEMANUFACTURED IN ACCORDANCE WITH API SPEC 6A, LATEST EDITION, PSL-2, PR-1, MONOGRAMMED MATERIAL CLASS : AA, TEMPERATURE CLASS : U (0 - 250 DEG F)
BRAND: YCJC
2 CHOKE,ADJUSTABLE ASSEMBLY, 2-9/16"-3000# SUPPLIED: CHOKE, ADJUSTABLE ASSEMBLY, 2-9/16" - 3000# WP FLANGE INLET AND OUTLET,WITH 1" MAXIMUM ORIFICE (SCALE TO 64/64), ALL EQUIPMENT SHALL BEMANUFACTURED IN ACCORDANCE WITH API SPEC 6A, LATEST EDITION, PSL-2, PR-1, MONOGRAMMED MATERIAL CLASS : AA, TEMPERATURE CLASS : U (0 - 250 DEG F)
BRAND: YCJC
3 CHOKE,ADJUST,ASSY,2-1/16"-3K,FLG CONN SUPPLIED: CHOKE, ADJUSTABLE ASSY, 2-1/16"-3K, FLANGE CONN, API 6A, MATERIAL CLASS: AA, TEMP CLASS : U (0 # 250 DEGF), PR : 1 , PSL : 2
BRAND: YCJC
4 CHOKE,ADJUST,ASSY,2-1/16"-3K,FLG CONN SUPPLIED: CHOKE, ADJUSTABLE ASSY, 2-1/16"-3K, FLANGE CONN, API 6A, MATERIAL CLASS: AA, TEMP CLASS : U (0 # 250 DEGF), PR : 1 , PSL : 2
BRAND: YCJC

Class AA API 6A Adjustable Wellhead Choke Valve PLS 3 Class AA API 6A Adjustable Wellhead Choke Valve PLS 3

About JC Wellhead

Jingcheng Petroleum Machinery Manufacturing Co.,Ltd was established in 2008, we are specialized in design and manufacturing of the oilfield wellhead equipment. We - YCJC are a registered supplier for CNPC, GWDC, CCDC in China.

In 2012, JC wellhead jointed with ZZ TOP Oil Tools, and found the office in Xi'an mainly engaged in abroad marketing, through these years of efforts, our wellhead equipment is exported to many countries, such as Thailand, UAE, Iran, Brazil, Argentina, USA etc. and enjoyed good reputation from the customers.

With profession engineers we also offer the R&D service to the clients who have special requirements in the oilfield drilling operation and production operation.The wellhead equipment we manufacture and supply include casing head, tubing head, casing spool, tubing spool, Gate valve, Choke valve, Check valve, X-mas tree, VR plug, Tubing hanger, casing hanger, Running tool, Wear bushing, spacer spool, flange adapter, union flange, Hammer union, Elbow, swivel joint, block cross, Block Tee, companion flange, instrument flange, weldneck flange, FC gate, FC seat, FC stem, API Clamp, API Clamp Hub

YCJC will constantly insist on the innovation of products, technologies and system and strive for providing the excellent products and services for our customers. We are sincerely welcome you to work together.
