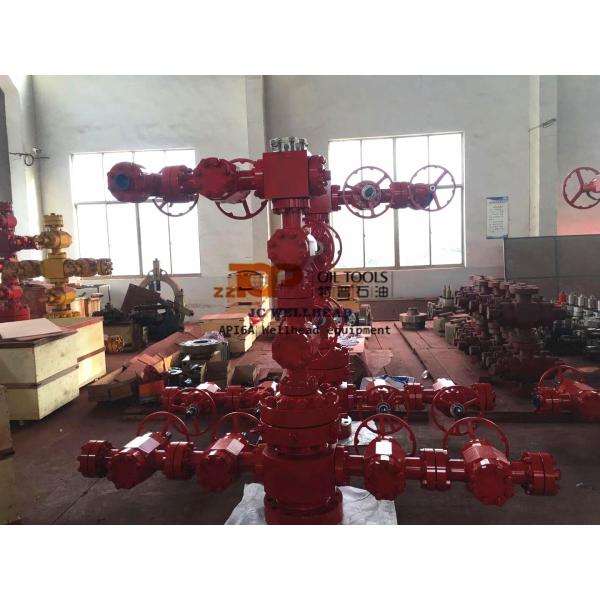

Oilfield Drilling 3000Psi Christmas Tree Tubing Head
Oilfield Drilling 3000Psi Christmas Tree Tubing Head
Oilfield Drilling 3000Psi Christmas Tree Tubing Head
Oilfield Drilling 3000Psi Christmas Tree Tubing Head
Specifications
Brand Name :
JC Wellhead
Model Number :
11" 5000 X 11" 3000 Tubing Head
Certification :
API 6A
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
T/T, L/C, D/P
Supply Ability :
10 sets / month
Delivery Time :
30-45 days
Packaging Details :
Polywood case for land, air, ocean shipment
Application :
Oilfield Drilling Operation
Usage :
Oil well flow control equipment
Material :
Class CU
Production Level :
PLS 3
Temperature Class :
U
Standard :
API 6A
Specification :
Tubing Head 11" 5000 X 11" 3000
Working pressure :
3000 psi
Type :
Dual wing wellhead X- tree
Valve Type :
Choke Valve, Needle Valve
Description

11" 5000 X 11" 3000 psi Tubing Head For Wellhead Christmas Tree API6A

The wellhead X-tree conformed with API 6A, is the important component at the surface of an oil or gas well that provides the structural and pressure-containing interface for the drilling and production equipment. The wellhead assembly is a kind of safe, reliable wellhead equipment which is used for fixing drilling wellhead, connecting wellhead casing string, sealing and controlling annular space between pipes, hanging pipes, controlling wellhead pressure and adjust the flow rate of oil and gas. It is applicable to all the casing and tubing programs and connection types. The wellhead X tree can be used to guide oil to pipe and to close oil well if necessary. The wellhead Christmas tree can be used to guide oil to pipe and to close oil well if necessary durding the oilfield drilling operation.

Detailed specification of Wellhead Assembly

WELLHEAD ASSEMBLY
GASKET, RING R-45 MS
STUD, ATS B7 1-1/8" X 8"
NUT, HEX 2H 1-1/8"

TUBING HEAD, CU 7-1/16" 3000 X 11" 3000 C/W LDS & ALIGNING PIN
GASKET, RING R-54 MS
STUD, ATS B7 1-7/8" X 14"
NUT, HEX 2H 1-7/8"
TUBING HEAD, CU 11" 5000 X 11" 3000 C/W LDS & ALIGNING PIN
TUBING HANGER, CUE 11" X 3-1/2" EUE LIFT & SUSP C/W 3" BPV THREAD
NIPPLE, TYPE "CTCE" SEAL OFF 3" NOMINAL
TUBING HEAD ADAPTER, CUE 11" 3000 X 3-1/8" 3000
GASKET, RING R-53 MS
STUD, ATS B7 1-3/8" X 9-1/2"
NUT, HEX 2H 1-3/8"
GATE VALVE, 3-1/8" 3M RTJ FLGD END TYPE A
FLOW STUDDED CROSS OVER SUB, 3-1/8" X 3-1/8" 3000#
XMAS TREE CAP, 3-1/8" 3M X 3-1/2"EUE TAPPED 1/2" NPT
ADJUSTABLE CHOKE VALVE, 3-1/8" 3M SS FLOW TRIM BEAM SIZE EQUIVALENT 116/64
COMPANION RTJ FLANGE, 3-1/8 3000# X 3" LP
BULL PLUG, CS 3" LP XXH TAPPED 1/2"
NEEDLE ANGLE VALVE, 1/2" 10M psi MALE X FEMALE
NEEDLE STRAIGHT VALVE, 1/2" 10M psi MALE X FEMALE
PRESSURE GAUGE, 0-3000 PSI 4" FACE 1/2"NPT BTM CONN
PLUG, PIPE 1/2" NPT
GASKET, RING R-31 MS
STUD, ATS B7 7/8" X 6"
NUT, HEX 2H 7/8"
Pipe Nipple 3"LP x 26" Long XXH
TEE, 3" LP 3000 psi
PLUG, BULL CS 3" LP XXH
NIPPLE, PIPE CS 3" LP X 6" XXH SMLS
VALVE, BALL 3" LP 3000# RP STD TRIM
UNION, HAMMER 3" LP 3M METAL X METAL SEAL
REDUCER BUSHING 3" LP X 2" LP
PRESCO PRESSURE SWITCH MODEL #D-FF C/W 2" LINE PIPE CONNECTION C/W 1 LOW SETTING @ 50 psi & 1 HIGH SETTING @ 500 psi C/W CABLE ASSY. FIELD SETTABLE
PIPE NIPPLE 3" LP XXH X 3" SCH. 40 BUTT WELD END X 12" LONG

Oilfield Drilling 3000Psi Christmas Tree Tubing Head Oilfield Drilling 3000Psi Christmas Tree Tubing Head

About JC petroleum equipment factory

JC Petroleum Equipment Factory manufactures and supplier the various wellhead equipment and related parts to meet different requirement in oilfield service operation. The wellhead equipment are conformed with API 6A and wellhead choke manifold is according to API16C specification, and applied for high pressure and high temperature working condition.

In 2012, JC wellhead jointed with ZZ TOP Oil Tools, and found the office in Xi'an mainly engaged in abroad marketing, through these years of efforts, our wellhead equipment is exported to many countries, such as Thailand, UAE, Iran, Brazil, Argentina, USA etc. and enjoyed good reputation from the customers.

YCJC's advantage:

* Excellent and stable quality of the products conformed with API and ISO standard

* Strict quality control on raw material and machining, we can arrange the SGS or BV to witness the test

* We supply various wellhead products to meet the customers' operation.

* Timely delivery, professional service on export procedure,

* Product guarantee and best after-sales service.

YCJC will constantly insist on the innovation of products, technologies and system and strive for providing the excellent products and services for our customers. We are sincerely welcome you to work together.
