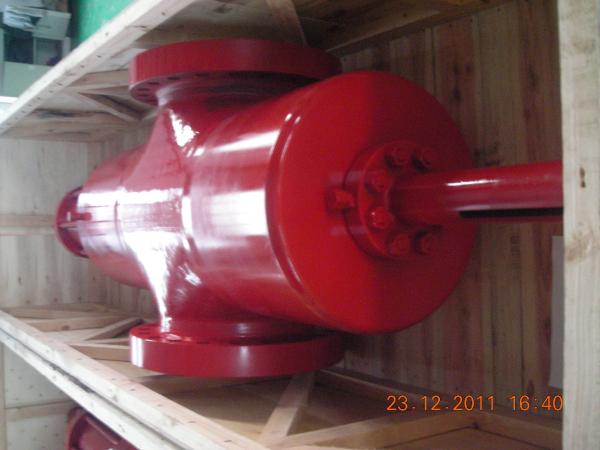

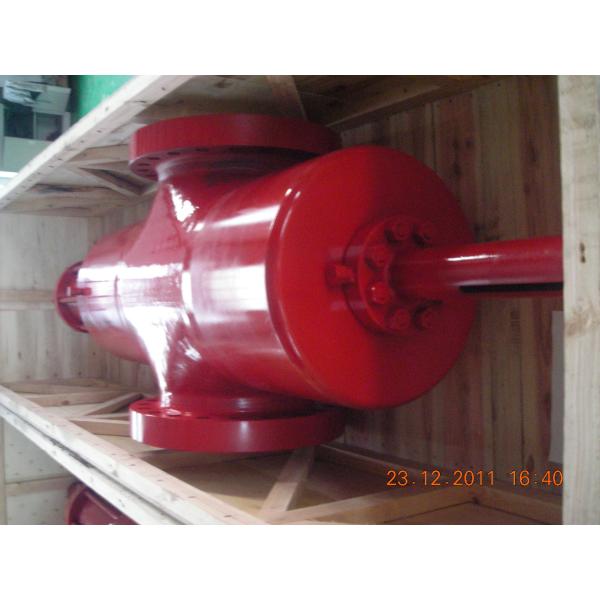

Hydraulic Operated Wellhead Valves For Oil Well Pressure Control 7 1/16
Hydraulic Operated Wellhead Valves For Oil Well Pressure Control 7 1/16
Hydraulic Operated Wellhead Valves For Oil Well Pressure Control 7 1/16
Hydraulic Operated Wellhead Valves For Oil Well Pressure Control 7 1/16
Specifications
Brand Name :
JC Wellhead
Model Number :
FC hydraulic gate valve
Certification :
API 6A
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
T/T, L/C, D/P
Supply Ability :
300 sets / month
Delivery Time :
30-40 days
Packaging Details :
Polywood case for land, air, ocean shipment
Application :
Wellhead Equipment
Usage :
Oil well pressure control
Material :
EE
Production Level :
PLS 3
Temperature Class :
U
Standard :
API 6A
Product name :
Hydraulic gate valve
Working pressure :
10000 psi
Specification :
7 1/16"
Description

Wellhead Valves Hydraulic Gate Valve API 6A Cameron FC Gate Valve

The Hydraulic Gate Valves in FC Type is manufactured and tested according to API Spec. 6A. The hydraulica gate valves are the important parts of wellhead christmas trees, casing heads, tubing heads, and wellhead choke & kill manifolds.

The hydraulic gate valve adopt the hydraulic pressure as the power source to operate the switch. But when the hydraulic pressuer source failed to work, the FC hydraulic gate valve can be operated manually.

Structure of FC gate vavle

* Two ends outlets can be flange connection, thread connection or union connection.

* The valve body adopts integrated forging, high strength, neat appearance.

* The valve gate and seat adopts thermal spray welding which can make sure high hardness and good wear resistance.

* Hydraulic system standard adopts viton seals, can be fitted for high and low temperature etc extreme situation.

Features of Hydraulic Gate Valve

* The gate valve body & Bonnet are Integral Forged

* It adopts metal-to-metal seal between body and bonnet

* The hydraulic gate valve is with simple design and low operation torque

* Hydraulic actuator installed on the top of the bonnet which controls the open and close of the valve by hydraulic pressure

* It is easy to change gate and seat assembly.

Technical parameter of Hydraulic Gate Valve

Product Name Hydraulic gate valve
Working Pressure 5000psi~20000psi
Nominal Bore 2-1/16"~4-1/16"
Working Medium oil,natural gas,mud and gas containing H2S,CO2
Working Temperature -46°C~121°C(Class LU)
Material Class AA,BB,CC,DD,EE,FF,HH
Standards API 6A NACE MR0175

Hydraulic Operated Wellhead Valves For Oil Well Pressure Control 7 1/16

About JC Wellhead

Jingcheng Petroleum Machinery Manufacturing Co.,Ltd was established in 2008, we are specialized in design and manufacturing of the oilfield wellhead equipment. We - YCJC are a registered supplier for CNPC, GWDC, CCDC in China.

With profession engineers we also offer the R&D service to the clients who have special requirements in the oilfield drilling operation and production operation.The wellhead equipment we manufacture and supply include casing head, tubing head, casing spool, tubing spool, Gate valve, Choke valve, Check valve, Frac valve, X-mas tree, Frac Tree, Subsurface test tree, VR plug, Tubing hanger, casing hanger, Running tool, Wear bushing, spacer spool, flange adapter, union flange, Hammer union, Elbow, swivel joint, block cross, Block Tee, companion flange, instrument flange, weldneck flange, FC gate, FC seat, FC stem, API Clamp, API Clamp Hub and wellhead manifolds.

YCJC will constantly insist on the innovation of products, technologies and system and strive for providing the excellent products and services for our customers. We are sincerely welcome you to work together.
