Blue High Pressure Wellhead Valves For Oil Well Cementing Operation
Blue High Pressure Wellhead Valves For Oil Well Cementing Operation
Blue High Pressure Wellhead Valves For Oil Well Cementing Operation
Blue High Pressure Wellhead Valves For Oil Well Cementing Operation
Specifications
Brand Name :
JC Wellhead
Model Number :
15000 psi plug valve
Certification :
API 6A
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
T/T, L/C, D/P
Supply Ability :
300 sets / month
Delivery Time :
30-45 days
Packaging Details :
Polywood case for land, air, ocean shipment
Application :
Oil well flow control
Usage :
Oil well cementing operation
Material :
Alloy steel
Production Level :
PLS 3
Temperature Class :
U
Standard :
API 6A
Product name :
High Pressure plug valve
Working pressure :
15000 psi
Specification :
1"Fig 1502
Connection :
Wing to Thread
Description

Wellhead Valves High Pressure Plug Valve API 6A Alloy Steel Valves

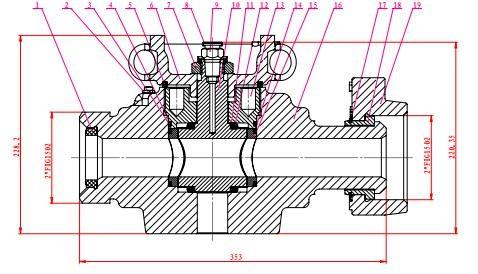

The plug valve is a necessary part that is utilized on the high pressure manifold for the cementing and fracturing operations in oil field, The high pressure plug valve can be used to control over the similar high pressure fluid, it is ideal for the cementing and fracturing manifolds. The high pressure plug valve is designed and manufactured according to API 6A specification, the inlet and outlet of plug valve are connected with 1502 Unions, valve body and bowl matched to the cylinder, and sealing element is inlaid through the bowl.

Featuring the compact structure, easy maintenance, small torque, rapid opening and easy operation

Features of plug valve

* The plug valve is designed with compact structure.

* The plug valve is made from AISI 4130 forging

* It is convenient to exchange by union joints on both ends and can be exchanged with LP, UN internationally due to inch size is applied;
* The plug valve is featured with small torque and rapid opening, it is easy to operate and mainten the valve.

Technical parameter of High pressure Plug valve

Working Pressure: 2,000 ~ 15,000psi
Nominal Bore Diameter: 2” and 3”
Temperature Class: K ~ V
Specification Level: PSL 1 ~ 4
Performance Requirement: PR 1 ~ 2
Material Class: AA ~ EE
Working Medium: crude oil and natural gas

List of fig plug valve maintenance package

1"×2"plug valve 2"×2"plug valve 3"×3"plug valve
105Mpa
15000psi		 70Mpa
10000psi		 42Mpa
6000psi		 105Mpa
15000psi		 70Mpa
10000psi		 42Mpa
6000psi		 105Mpa
15000psi		 70Mpa
10000psi		 42Mpa
6000psi
O-shaped sealing ring 2 2 2 2 2 2 2 2 2
Sealing ring support band 2 2 2 2 2 2 2 2 2
Side arcing shim 2 2 2 2 2 2 2 2 2
Square sealing ring 2 2 2 2 2 2 2 2 2
Sealing arcing shim 2 2 2 2 2 2 2 2 2
Plug cock 1 1 1 1 1 1 1 1 1
Valve deck sealing ring 1 1 1 1 1 1 1 1 1
Support band of valve deck sealing ring 1 1 1 1 1 1 1 1 1
Grease fitting 1 1 1 1 1 1 1 1 1

Blue High Pressure Wellhead Valves For Oil Well Cementing Operation

About JC Wellhead

Jingcheng Petroleum Machinery Manufacturing Co.,Ltd was established in 2008, we are specialized in design and manufacturing of the oilfield wellhead equipment. We - YCJC are a registered supplier for CNPC, GWDC, CCDC in China.

JC wellhead is specialized in wellhead equipment which is conformed with API 6A, API 16C Specification. We provide quality choke valves, gate valves, check valves, plug valves, needle valves and butterfly valves of various models and sizes. The design and the manufacture of these valves conform to API standards. They feature high strength. well sealing, easy replacement and convenient operation.

YCJC will constantly insist on the innovation of products, technologies and system and strive for providing the excellent products and services for our customers. We are sincerely welcome you to work together.
