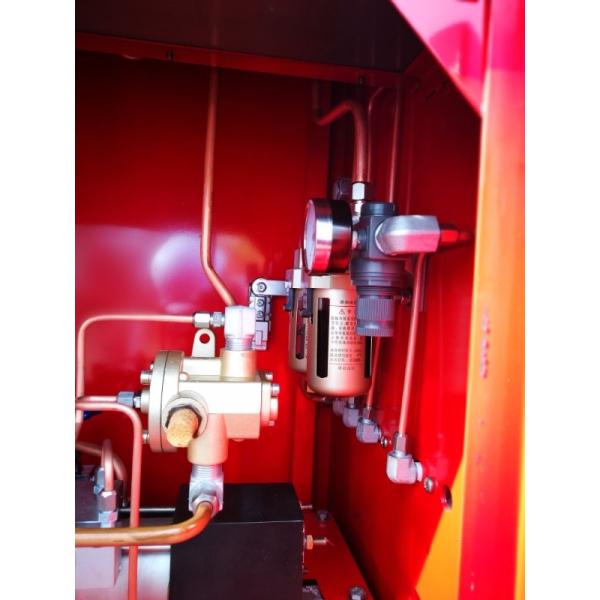

API Oil Well Valve Control Panel Hydraulic Choke Manifold Parts PJYK-35
API Oil Well Valve Control Panel Hydraulic Choke Manifold Parts PJYK-35
API Oil Well Valve Control Panel Hydraulic Choke Manifold Parts PJYK-35
API Oil Well Valve Control Panel Hydraulic Choke Manifold Parts PJYK-35
Specifications
Brand Name :
JC Wellhead
Model Number :
PJYK-35 control panel
Certification :
API 16C
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
T/T, L/C, D/P
Supply Ability :
100 sets / month
Delivery Time :
30-45 days
Packaging Details :
Polywood case for land, air, ocean shipment
Application :
Oil well manifold
Usage :
Controlling the choke manifold
Product name :
Control Panel for choke manfiold
Material :
carbon steel
Temperature Rating :
-5 oC to +38oC
Standard :
API 6A & API 16
Control valve type :
Hydraulic valve
Connection :
NPT 1/2
Gas source pressure: :
0.6 Mpa
Description

API Oil well Hydraulic Valve Control Panel PJYK-35 for choke manifold

The Control Panel in Model PJYK-35 is the part of the wellhead control systme, which is applied to remote control the open and close of hydraulic choke valves. The PJYK-35 Control panel is able to control three hydraulic choke valves includings Two hydraulic choke valves are located on choke and kill manifold, the third is located on high pressure mud standpipe manifold.

Main components of Hydraulic valve control panel

NO. Parts Unit Qty
1 Accumulator Set 1
2 Overflow valve Set 1
3 One way valve Set 1
4 Manual pump Set 1
5 Oil Filter Pcs 1
6 Oil tank Pcs 1
7 Manual 3-position, 4-channel valve Set 3
8 Oil pressure meter Pcs 1
9 Air source pressure gauge Pcs 1

API Oil Well Valve Control Panel Hydraulic Choke Manifold Parts PJYK-35API Oil Well Valve Control Panel Hydraulic Choke Manifold Parts PJYK-35

About JC Wellhead

Yancheng Jingcheng Petroluem Machinery Manufacturing hereafter JC Wellhead, is the manufacture and supplier of the various wellhead equipment including wellhead manifold, wellhead Christams tree, wellhead valves, wellhead adapter flanges, casing head assy., tubing head assy, related parts to meet different requirement in oilfield service operation. The wellhead manifolds are conformed with API 6A and API16C specification, and applied for high pressure and high temperature working condition. The wellhead manifold include choke and kill manifold, fracturing manifold, testing manifold,drilling floor manifold, drilling fluid manifold etc.

YCJC's advantage:

* Excellent and stable quality of the products conformed with API and ISO standard

* Strict quality control on raw material and machining, we can arrange the SGS or BV to witness the test

* We supply various wellhead products to meet the customers' operation.

* Timely delivery, professional service on export procedure,

* Product guarantee and best after-sales service.

Welcome to contact us for more information!
