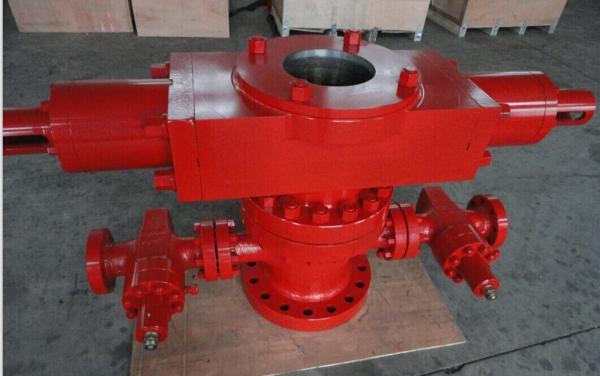

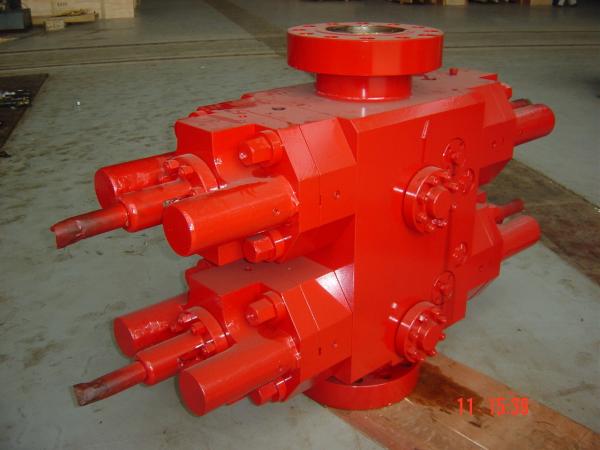

Wellhead Pressure Control Oil Well Blowout Preventer Cameron BOP 2FZ28-35
Wellhead Pressure Control Oil Well Blowout Preventer Cameron BOP 2FZ28-35
Wellhead Pressure Control Oil Well Blowout Preventer Cameron BOP 2FZ28-35
Wellhead Pressure Control Oil Well Blowout Preventer Cameron BOP 2FZ28-35
Specifications
Brand Name :
JC Wellhead
Model Number :
2FZ28-35 RAM BOP
Certification :
API 16A
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
T/T, L/C, D/P
Supply Ability :
10 sets / month
Delivery Time :
45 days
Packaging Details :
Polywood case for land, air, ocean shipment
Application :
Oil well drilling operation
Usage :
Wellhead pressure control
Material Class :
EE
Production Level :
PLS 3
Temperature Class :
PU
Standard :
API 16A
Product name :
Double RAM BOP / Single RAM BOP
Specification :
11" x 5000 psi
Type :
Double RAM / Single RAM
Description

Oil Well Blowout Preventer API 16A RAM BOP Cameron Type 2FZ28-35

Structure Types of RAM BOP

* According to the number of ram installed in each set, ram BOP can be divided into single ram, double ram and three ram BOP.

* According to the ram opening and closing method, ram BOP can be divided into BOP of hydraulic control and BOP of manual control.

* According to the ram locking method, ram BOP can be divided into manual locking and hydraulic locking.

* According to the different opening and closing method of bonnet, ram BOP can be divided into two Forms: Rotating bonnet ram BOP and

linear bonnet ram BOP.

- For the rotating bonnet ram BOP, when open or close bonnet, the bonnet rotates on the hinge sear fastened on the body, the ram cavity

shape of such BOP is rectangle.

- For the linear bonnet ram BOP, when open or close bonnet, the bonnet makes linear motion along the two bonnet opening and closing

plunger rods fastened on the body, the ram cavity shape of such BOP is elliptic. The ram BOP currently designed and produced in our

company are hydraulic control and manual control, which are in three structures.

Technical parameter of RAM BOP

SIZE 7-1/16"- 21-1/4"
PRESSURE 2000PSI-20000PSI
MATERIAL AA. BB. CC. DD. EE. FF
PERFORMANCE LEVEL PR1, PR2
SPECIFICATION LEVER PSL1, PSL2, PSL3
TEMPERATURE P.U
STANDARD API 16A
PACKING PLYWOOD CASE OR BUYER REQUEST
MINIMUM ORDER 1 SET

Specification of RAM BOP

Wellhead Pressure Control Oil Well Blowout Preventer Cameron BOP 2FZ28-35

Wellhead Pressure Control Oil Well Blowout Preventer Cameron BOP 2FZ28-35

About JC Wellhead

Jingcheng Petroleum Machinery Manufacturing Co.,Ltd manufactures and supplier the various wellhead equipment and related parts to meet different requirement in oilfield service operation. The wellhead equipment are conformed with API 6A and wellhead choke manifold is according to API16C specification, and applied for high pressure and high temperature working condition.

The wellhead manifold include choke and kill manifold, fracturing manifold, testing manifold, drilling floor manifold etc.The wellhead equipment covers the wellhead valves such as gate valve, mud valve, choke valve, check valve, and wellhead connection equipment including spacer spool, double studded adapter flange, various adapter flange, drilling spool, cross, tee etc.

YCJC will constantly insist on the innovation of products, technologies and system and strive for providing the excellent products and services for our customers. We are sincerely welcome you to work together.
