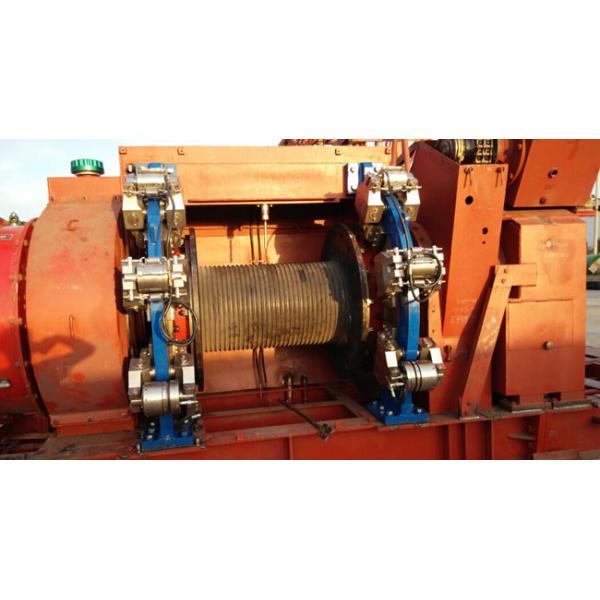

PS Series Disc Brake System , Oil Well Drilling Rig / Workover Rig Parts
PS Series Disc Brake System , Oil Well Drilling Rig / Workover Rig Parts
PS Series Disc Brake System , Oil Well Drilling Rig / Workover Rig Parts
PS Series Disc Brake System , Oil Well Drilling Rig / Workover Rig Parts
Specifications
Brand Name :
Boke
Model Number :
PSX50 Disc Brake
Certification :
API 7K
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
T/T, L/C, D/P
Supply Ability :
30 sets / month
Delivery Time :
30-45 days
Packaging Details :
Polywood case for land, air, ocean shipment
Application :
Oil well drilling operation
Usage :
Drilling rig / Workover Rig
Product :
PSX50 Disc Brake System
Standard :
API
Material :
Alloy Steel
Condition :
New
Model :
PS Series
Working condiction :
Standard Service
Description

PS Series Disc Brake System for Oil Well Drilling Rig Workover Rig

PS series disc brake system is mainly used for drilling rigs, workover rigs and well hoister. The disc brake system consists of three parts: brake actuation mechanism, hydraulic station and operation panel. These three parts are connected through hydraulic pipes. The hydraulic station supply hydraulic power for the system; the control panel controls the hydraulic power, it is made up of service brake assembly, parking brake assembly, emergency brake assembly and all kinds of pressure indicators; the actuation mechanism is a braking actuation unit which consists of braking caliper, caliper frame and friction disc. The braking caliper has two parts, one is normal open service calipers, the other is normal closed calipers. Its main function is to brake the drum so that the speed to raise or lower the drilling tools can be adjusted.

Technical parameter of disck brake system

Caliper type Max. Normal force on single side (KN) Rated hydraulic pressure (Mpa) Application
Conventional control Electric control
PSX50 50 6 7 Drilling rig: ZJ15, ZJ10 / workover rig/ Well hoister
PSZ65 65 6.5 7.5 Drilling rig: ZJ 40, ZJ30, ZJ20
PSZ75 75 8 9 Drilling rig: ZJ70, ZJ50
PSZ90 90 10 11 ZJ90 Ultra deep well and offshore oil drilling

PS Series Disc Brake System , Oil Well Drilling Rig / Workover Rig Parts

About JC Wellhead

Jingcheng Petroleum Machinery Manufacturing Co.,Ltd was established in 2008, we are specialized in design and manufacturing of the oilfield wellhead equipment. We - YCJC are a registered supplier for CNPC, GWDC, CCDC in China.

In 2012, JC wellhead jointed with ZZ TOP Oil tools to expand the international business, in order to meet the customers' various requirement, we work with other large drilling rig companies to supply the other oilfield equipments, including drilling rig components such as mud pump & parts, rotary swivel, travelling block and hook, crown block rotary table etc, and various oilfield handling tools slip, elevator, spider, casing tong, power tong, mual tong and so on.

Welcome to contact us for more information!!
