API 6A Type 6B Welded Neck Flanges Wellhead Crossover High Strength
API 6A Type 6B Welded Neck Flanges Wellhead Crossover High Strength
API 6A Type 6B Welded Neck Flanges Wellhead Crossover High Strength
API 6A Type 6B Welded Neck Flanges Wellhead Crossover High Strength
Specifications
Brand Name :
JC Wellhead
Model Number :
2 1/16 5M Weld NeckFlange adapter
Certification :
API 6A
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
T/T, L/C, D/P
Supply Ability :
300 sets / month
Delivery Time :
30-45 days
Packaging Details :
Polywood case for land, air, ocean shipment
Application :
Oil well drilling operation
Usage :
wellhead connection
Material :
Alloy steel
Production Level :
PLS 3
Production level :
PR1
Standard :
API 6A
Product name :
Type 6B Wellhead Flange Adapter
Working pressure :
5000psi
Flange size :
2 1/16"
Working condiction :
standard serive or sour service
Description

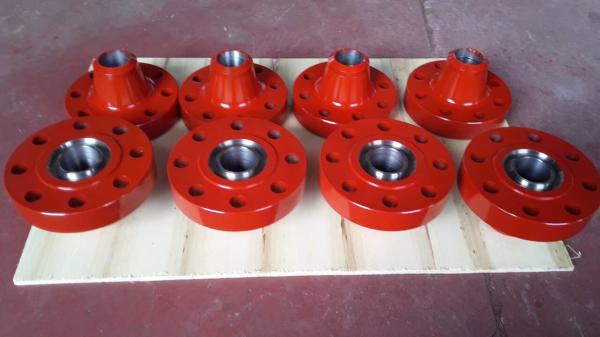

API 6A Type 6B Wellhead Welded Neck Adapter Flanges

Wellhead Crossover

​

API Specified Type 6B Weld Neck Flanges have restricted bores to match standard pipe sizes and schedules.The Flange end meet the requirements of API 6A Ring groove R or RX Type.

Features of Wellhead Adapter Flange

* Made from high-strength alloy and processed specially with heating treatment.
* Applied for Hydrogen sulfide H2S resistant servicewith reference to NACEMR-0175 specifications.
* The wellhead adapter flange can be available as per customers' requirements.

Specification of wellhead Welded Neck Adapter Flange

Flange Size (inch) I.D. (inch) O.D. (inch) O.A.L (inch) Steel Type Pipe Size/Schedule
1 13/16 10M 1.813 2.560 4.13 Low Alloy 60Ksi Custom Tubing
1 13/16 15M 1.813 2.810 4.31 Low alloy 75Ksi Custom tubing
1 13/16 20M 1.813 4.31 5.38 Low alloy 75Ksi Custom tubing
2 1/16 2M 1.939 2.375 3.19 Carbon Steel 45ksi 2” SCH.80
2 1/16 3M 1.939 2.375 4.31 Carbon Steel 45ksi 2” SCH.80
2 1/16 5M 1.687 2.375 4.31 Carbon Steel 45ksi 2” SCH.160
2 1/16 10M 2.063 2.940 4.38 Carbon Steel 60ksi Custom Tubing
2 1/16 15M 2.063 3.250 4.88 Low Alloy 75ksi Custom Tubing
2 1/16 20M 2.063 5.000 5.81 Low Alloy 75ksi Custom Tubing
2 9/16 2M 2.469 2.875 3.44 Carbon Steel 45ksi 2 1/2” SCH.40
2 9/16 3M 2.323 2.875 4.44 Carbon Steel 45ksi 2 1/2” SCH.80
2 9/16 5M 2.215 2.875 4.44 Carbon Steel 45ksi 2 1/2” SCH.160
2 9/16 10M 2.563 3.620 4.90 Carbon Steel 60ksi Custom Tubing
2 9/16 15M 2.563 3.940 5.31 Low Alloy 75ksi Custom Tubing
2 9/16 20M 2.563 5.690 6.38 Low Alloy 75ksi Custom Tubing
3 1/8 2M 3.068 3.500 2.56 Carbon Steel 45ksi 3” SCH.40
3 1/8 3M 2.900 3.500 4.31 Carbon Steel 45ksi 3” SCH.80
3 1/8 5M 2.625 3.500 4.94 Carbon Steel 45ksi 3” SCH.160
3 1/16 10M 3.063 4.34 5.56 Low Alloy 60ksi Custom Tubing
3 1/16 15M 3.063 4.810 5.88 Low Alloy 75ksi Custom Tubing
3 1/16 20M 3.063 6.310 6.88 Low Alloy 75ksi Custom Tubing
4 1/16 2M 4.026 4.500 4.31 Carbon Steel 45Ksi 4” SCH.40
4 1/16 3M 3.826 4.500 4.81 Carbon Steel 45Ksi 4” SCH.80
4 1/16 5M 3.438 4.500 5.19 Carbon Steel 45ksi 4” SCH. 160
4 1/16 10M 4.063 5.750 6.56 Low alloy 60ksi Custom Tubing
4 1/16 15M 4.063 6.250 6.88 Low Alloy 75ksi Custom Tubing
4 1/16 20M 4.063 8.120 8.12 Low Alloy 75ksi Custom Tubing
5 1/8 2M 4.813 5.563 4.81 Carbon Steel 45Ksi 5” SCH.80
5 1/8 3M 4.813 5.563 5.31 Carbon Steel 45Ksi 5” SCH.80
5 1/8 5M 4.313 5.563 6.44 Carbon Steel 45ksi 5” SCH. 160
5 1/8 10M 5.125 7.190 7.18 Low alloy 60ksi Custom Tubing
5 1/8 15M 5.125 7.880 8.00 Low Alloy 75ksi Custom Tubing
7 1/16 2M 5.761 6.625 4.94 Carbon Steel 45Ksi 6” SCH.80
7 1/16 3M 5.761 6.625 5.81 Carbon Steel 45Ksi 6” SCH.80
7 1/16 5M 5.187 6.625 7.13 Carbon Steel 45ksi 6” SCH. 160
7 1/16 10M 7.063 10.000 8.75 Low alloy 60ksi Custom Tubing
7 1/16 15M 7.063 10.880 9.31 Low Alloy 75ksi Custom Tubing
7 1/16 20M 7.063 13.310 11.56 Low Alloy 75ksi Custom Tubing
9 2M 7.813 8.625 5.56 Carbon Steel 45Ksi 8” SCH.80
9 3M 7.437 8.625 6.69 Carbon Steel 45Ksi 8” SCH.100
9 5M 6.813 8.625 8.81 Carbon Steel 45ksi 8” SCH. 160
9 10M 9.000 12.880 9.56 Low alloy 60ksi Custom Tubing
11 2M 9.562 10.750 6.31 Carbon Steel 45Ksi 10” SCH.80
11 3M 9.312 10.750 7.56 Carbon Steel 45Ksi 10” SCH.100
11 5M 8.500 10.750 10.44 Carbon Steel 45ksi 10” SCH. 160
11 10M 11.000 15.750 10.69 Low alloy 60ksi Custom Tubing
13 5/8 2M 11.750 12.750 6.44 Carbon Steel 45Ksi 12” XH
13 5/8 3M 10.750 12.750 - Carbon Steel 45Ksi 12” SCH.120
16 3/4 2M 14.688 16.000 7.31 Carbon Steel 45ksi 16” SCH. 60
16 3/4 3M 13.562 16.000 - Carbon Steel 45ksi 16” SCH. 120
21 1/4 2M 17.938 20.000 - Carbon Steel 45ksi 20” SCH. 80
20 3/4” 3M 17.438 20.000 - Carbon Steel 45ksi 20” SCH. 100

API 6A Type 6B Welded Neck Flanges Wellhead Crossover High Strength


About JC Wellhead

Jingcheng Petroleum Machinery Manufacturing Co.,Ltd was established in 2008, we are specialized in design and manufacturing of the oilfield wellhead equipment. We - YCJC are a registered supplier for CNPC, GWDC, CCDC in China.

In 2012, JC wellhead jointed with ZZ TOP Oil Tools, and found the office in Xi'an mainly engaged in abroad marketing, through these years of efforts, our wellhead equipment is exported to many countries, such as Thailand, UAE, Iran, Brazil, Argentina, USA etc. and enjoyed good reputation from the customers.

With profession engineers we also offer the R&D service to the clients who have special requirements in the oilfield drilling operation and production operation.The wellhead equipment we manufacture and supply include casing head, tubing head, casing spool, tubing spool, Gate valve, Choke valve, Check valve, X-mas tree, VR plug, Tubing hanger, casing hanger, Running tool, Wear bushing, spacer spool, flange adapter, union flange, Hammer union, Elbow, swivel joint, block cross, Block Tee, companion flange, instrument flange, weldneck flange, FC gate, FC seat, FC stem, API Clamp, API Clamp Hub

JCWellhead's advantage:

* High in Quality

* Moderate in Price

* Promote in Shipment

* Inspection System Control and Best Service
