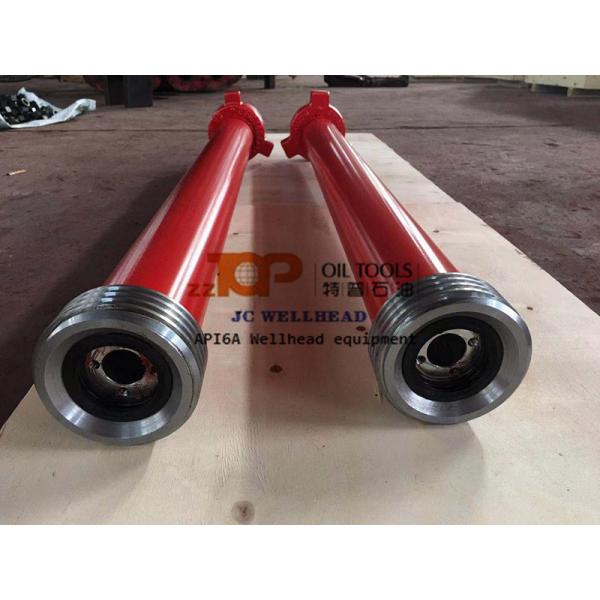

Alloy Steel Forging Wellhead Fittings PR1 High Pressure Wellhead Nipple
Alloy Steel Forging Wellhead Fittings PR1 High Pressure Wellhead Nipple
Alloy Steel Forging Wellhead Fittings PR1 High Pressure Wellhead Nipple
Alloy Steel Forging Wellhead Fittings PR1 High Pressure Wellhead Nipple
Specifications
Brand Name :
JC Wellhead
Model Number :
Nipple Pipe
Certification :
API 6A
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
T/T, L/C, D/P
Supply Ability :
300 sets / month
Delivery Time :
30-45 days
Packaging Details :
Polywood case for land, air, ocean shipment
Application :
Wellhead Drilling Operation
Usage :
Wellhead Pipe Line
Material :
Alloy steel forging
Production Level :
PLS 3
Production level :
PR1
Standard :
API 6A
Product name :
Nipple Pipe Weco Union
Size :
3" x Fig 602
End :
WECO Hammer Union
Working condiction :
standard serive or sour service
Description

API 6A High Pressure Wellhead Nipple, Pipe fittings with Weco Union

​

The Nipple Pipe is the high pressure piping fitting, which is applied for cementing and fracturing equipment to deliver the High Pressure Fluid Control Products. The nipple pipe is also called pup joint with Weco Union connection and widely used in the acidic operating environment (excluding containing CO2, H2S sour gas operating environment) in the high-pressure discharge line, input line, a temporary flow line, well testing, and other high-voltage transmission lines on pipelines. The WECO union connection is featured with performances of flexibility, stability, quick installation and easy dismantling.

Detailed Specification of nipple pipe / pipe fittings in order

Item # Description
1 NIPPLE, PIPE:
TYPE: WECO UNION SIZE: 3"
CONNECTION: M x F FIG 602 UNION LENGTH: 2 ft
SCHEDULE/RATING: FIG 602
INSPECTION/CERTIFICATION: INTEGRAL CONSTRUCTION, SUTABLE FOR STANDARED SERVICE API-6A
TEXT: 3" FIG 602 Weco Union (Wing x Thd), Length: 2 ft,
PUP JOINT 3" x 2' 6000 PSI, W/ M x F FIG 602 UNION ENDS,
INTEGRAL CONSTRUCTION,
SUTABLE FOR STANDARED SERVICE API-6A
2 NIPPLE, PIPE:
TYPE: WECO UNION SIZE: 3"
CONNECTION: M x F FIG 602 UNION LENGTH: 3 ft
SCHEDULE / RATING: FIG 602
INSPECTION / CERTIFICATION: INTEGRAL CONSTRUCTION, SUITABLE FOR STANDARD SERVICE API-6A
TEXT: 3" FIG 602 Weco Union (Wing x Thd), Length: 3 ft,
PUP JOINT 3" x 3' 6000 PSI, W/ M x F FIG 602 UNION ENDS, INTEGRAL CONSTRUCTION,
SUITABLE FOR STANDARD SERVICE API-6A
3 NIPPLE, PIPE:
TYPE: WECO UNION SIZE: 3"
CONNECTION: M x F FIG 602 UNION LENGTH: 5 ft
SCHEDULE / RATING: FIG 602
INSPECTION / CERTIFICATION: INTEGRAL CONSTRUCTION, SUITABLE FOR STANDARD SERVICE API-6A
TEXT: 3" FIG 602 Weco Union (Wing x Thd), Length: 5 ft,
PUP JOINT 3" x 5' 6000 PSI, W/ M x F FIG 602 UNION ENDS, INTEGRAL CONSTRUCTION,
SUITABLE FOR STANDARD SERVICE API-6A
5 NIPPLE, PIPE:
TYPE: WECO UNION SIZE: 3"
CONNECTION: M x F FIG 602 UNION LENGTH: 10 ft
SCHEDULE / RATING: FIG 602
INSPECTION / CERTIFICATION: INTEGRAL CONSTRUCTION, SUITABLE FOR STANDARD SERVICE API-6A
TEXT: 3" FIG 602 Weco Union (Wing x Thd), Length: 10 ft, PUP JOINT 3" x 10' 6000 PSI, W/ M x F FIG 602
UNION ENDS, INTEGRAL CONSTRUCTION, SUITABLE FOR STANDARD SERVICE API-6A

Alloy Steel Forging Wellhead Fittings PR1 High Pressure Wellhead NippleAlloy Steel Forging Wellhead Fittings PR1 High Pressure Wellhead Nipple

About JC Wellhead

Jingcheng Petroleum Machinery Manufacturing Co.,Ltd was established in 2008, jointed with ZZ TOP Oil Tools in 2012 to expand the international business. We are specialized in design and manufacturing of the oilfield wellhead equipment. We - YCJC are a registered supplier for CNPC, GWDC, CCDC in China.

With profession engineers we also offer the R&D service to the clients who have special requirements in the oilfield drilling operation and production operation.The main well control and wellhead equipment as following:

*BOP : Taper Rubber Annular BOP, Spherical rubber Annular BOP, Single Ram BOP, Double Ram BOP
* Wellhead Equipment: X-mas tree, casing head, casing hanger, tubing head, tubing hanger, casing spool, tubing spool, API Clamp, API Clamp Hub
* Wellhead valve: Gate valve, Choke valve, Check valve, Mud valve, and valve parts
* Wellhead adapter: Double studded adapter flange, spacer spool, riser spool, drilling spool, weldneck flange, union flange adapter
* Other wellhead equipment parts: Hammer union, Elbow, swivel joint, block cross, Block Tee,
* Oil well manifold: choke manifold, kill manifold, testing manifold

Welcome to contact us for more information!
