High Pressure Integral Long Radius Elbow For Wellhead Lines
High Pressure Integral Long Radius Elbow For Wellhead Lines
High Pressure Integral Long Radius Elbow For Wellhead Lines
High Pressure Integral Long Radius Elbow For Wellhead Lines
Specifications
Brand Name :
JC Wellhead
Model Number :
Wye & Elbow
Certification :
API 6A
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
T/T, L/C, D/P
Supply Ability :
300 sets / month
Delivery Time :
30-45 days
Packaging Details :
Polywood case for land, air, ocean shipment
Application :
Wellhead Fluid Control
Usage :
High Pressure Integral fitting
Material :
AISI 4130 Forging
Production Level :
PLS 3
Temperature Class :
U
Standard :
API 6A
Product name :
High Pressure Integral Fittings XY Wye
Working pressure :
15000 psi
Description

API Wye & Long Radius Elbow High Pressure Integral Fitting For Wellhead Lines

Integral fittings are cementing and fracturing equipment High Pressure Fluid Control Products.The High pressure integral Fittings and welded fittings include XY Wye, Elbow, Tee, Cross, Lateral and Fishtails with size ranging from 2” to 4” and pressure from 3000psi to 20000psi.

The Integral connections are made by high strength forged alloy steel AISI 4130, which are all heat treated to enhance load-bearing capacity and lengthen service life. The Wye and Long Radius Elbow may have union ends for quick and easy connection with various cementing or fracturing equipment, or have a welded end connector which is designed as per API Spec. 6A.

Specification of High pressure integral wellhead fittings

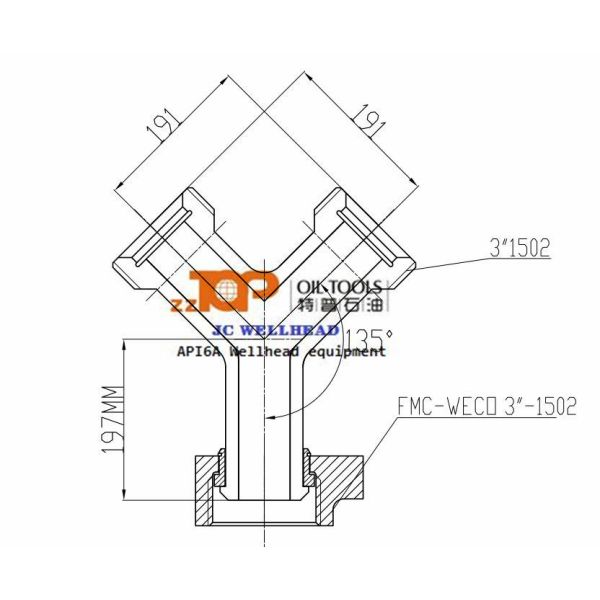

Wye

High Pressure Integral Long Radius Elbow For Wellhead Lines

Nominal

Size

 End Connections

Working Pressure

Mpa/Psi

 Dimensions(mm) Service
A B
2" FIG1502 MXFXF 105/15000 133 127 Standard
2 FIG2002 MXFXF 140/20000 148 127 Standard
3" FIG1502 MXFXF 105/15000 200 203 Standard
3° FIG2002 MXFXF 140/20000 270 270 Standard

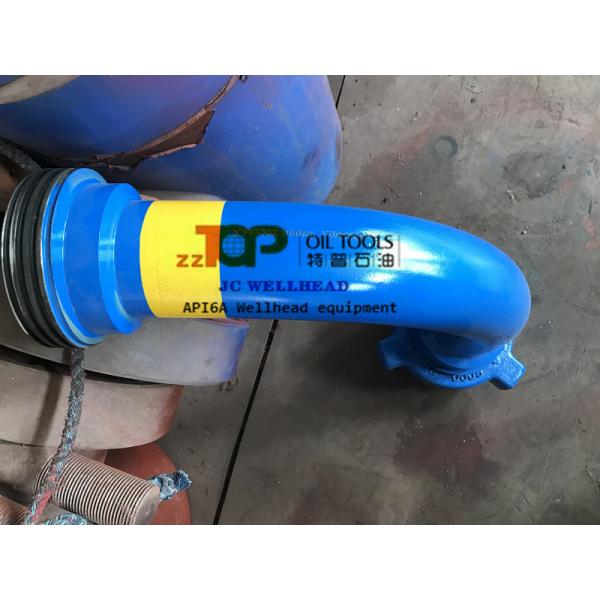

Long Radius Elbow

High Pressure Integral Long Radius Elbow For Wellhead Lines

Nominal

Size

 End Connections

Working Pressure

Mpa/Psi

 Dimensions(mm) Service
A B
2" FIG1502 FXM 105/15000 171 162 Standard
2" FIG1502 MXM 105/15000 171 162 Standard
3" FIG1502 FXM 105/15000 203 225 Standard

* Other Size & End Connection can be customized.

High Pressure Integral Long Radius Elbow For Wellhead Lines High Pressure Integral Long Radius Elbow For Wellhead Lines

About JC Wellhead

JC Petroleum Equipment Factory manufactures and supplier the various wellhead equipment andrelated parts to meet different requirement in oilfield service operation. The wellhead equipment are conformed with API 6A and wellhead choke manifold is according to API16C specification, and applied for high pressure and high temperature working condition.

With profession engineers we also offer the R&D service to the clients who have special requirements in the oilfield drilling operation and production operation.The wellhead equipment we manufacture and supply include casing head, casing hanger, tubing head, tubing hanger, casing spool, tubing spool, Gate valve, Choke valve, Check valve,plug valve,mud valve, wellhead Christamas tree, VR plug, Tubing hanger, casing hanger, Running tool, Wear bushing, spacer spool, flange adapter, union flange, Hammer union, Elbow, swivel joint, block cross, Block Tee, companion flange, instrument flange, weldneck flange, FC gate, FC seat, FC stem, API Clamp, API Clamp Hub and various wellhead manifold such as choke manifold, kill manifold, drilling fluid manifold, well testing manifold etc.

Welcome to contact us for any inquiry or comments!!

High Pressure Integral Long Radius Elbow For Wellhead LinesHigh Pressure Integral Long Radius Elbow For Wellhead Lines
