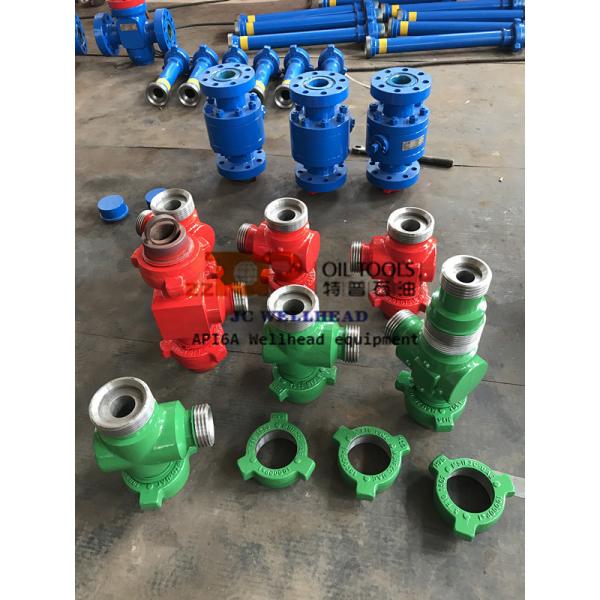

Integral Forging Tee Wellhead Connector AISI4130 High Pressure
Integral Forging Tee Wellhead Connector AISI4130 High Pressure
Integral Forging Tee Wellhead Connector AISI4130 High Pressure
Integral Forging Tee Wellhead Connector AISI4130 High Pressure
Specifications
Brand Name :
JC Wellhead
Model Number :
4" x Fig 1502 Tee
Certification :
API 6A
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
T/T, L/C, D/P
Supply Ability :
300 sets / month
Delivery Time :
30-45 days
Packaging Details :
Polywood case for land, air, ocean shipment
Application :
Oil Well Fluid Control
Usage :
Wellhead pipeline connection
Material :
AISI 4130
Production Level :
PLS 3
Production level :
PR2
Standard :
API 6A
Product name :
High Pressure Integral Tee
Connection :
Fig 1502 x Thread
Size :
4" x 15000psi
Working condiction :
standard serive or sour service
Description

API Wellhead Tee High Pressure Integral Fitting AISI4130 Forging

The Integral Tee is a kind of wellhead integral connectors for high, low pressure and temperature and sour gas (H2S). The Integral Tees are designed and manufactured as per API Spec 6A, The integral tee includes wye and Y tee (Y shape tee),90 degree elblow, 180 degree elbow ,tee,cross,Laterals and Fishtails,with sizes of integral tee is ranging from 2" to 7" and pressures from 3000psi to 20000psi.The integral tee is made of high strength alloy steel forging with all heat-treated to enhance load-bearing capacity and lengthen service life.Integral Tees are featured with detachable wing union end connections for a high-strength, high-integrity connection.

Technical parameter of integral tee


Integral Forging Tee Wellhead Connector AISI4130 High Pressure

Nominal

Size

 End Connections

Working Pressure

Mpa/Psi

 Dimensions(mm) Service
A B
2* FIG1502 MXFXF 105/15000 308 154 Standard
2 FIG1502 MXFXM 105/15000 308 154 Standard
2" FIG1502 FXFXF 105/15000 308 154 Standard
2 FIG1502 FXFXM 105/15000 308 154 Standard
2 FIG1502 MXMXM 105/15000 308 154 Standard
3* FIG1502 MXFXF 105/15000 428 214 Standard
3° FIG1502 MXFXM 105/15000 428 214 Standard
3 FIG1502 FXFXF 105/15000 428 214 Standard
3" FIG1502 FXFXM 105/15000 428 214 Standard
3" FIG1502 MXMXM 105/15000 428 214 Standard
4° FIG1502 MXFXF 105/15000 533 266.5 Standard
4" FIG1502 MXFXM 105/15000 533 266.5 Standard
4” FIG1502 FXFXF 105/15000 533 266.5 Standard
4" FIG1502 FXFXM 105/15000 533 266.5 Standard
4 FIG1502 MXMXM 105/15000 533 266.5 Standard
3" FIG2002 MXFXF 140/20000 533 266.5 Standard
3" FIG2002 MXFXM 140/20000 533 266.5 Standard
3" FIG2002 FXFXF 140/20000 533 266.5 Standard
3" FIG2002 FXFXM 140/20000 533 266.5 Standard
3" FIG2002 MXMXM 140/20000 533 266.5 Standard

Integral Forging Tee Wellhead Connector AISI4130 High Pressure Integral Forging Tee Wellhead Connector AISI4130 High Pressure

About JC Wellhead

Jingcheng Petroleum Machinery Manufacturing Co.,Ltd was established in 2008, we are specialized in design and manufacturing of the oilfield wellhead equipment. We - YCJC are a registered supplier for CNPC, GWDC, CCDC in China.

In 2012, JC wellhead jointed with ZZ TOP Oil Tools, and found the office in Xi'an mainly engaged in abroad marketing, through these years of efforts, our wellhead equipment is exported to many countries, such as Thailand, UAE, Iran, Brazil, Argentina, USA etc. and enjoyed good reputation from the customers.

Product Scope

Wellhead valves: Gate Valves, Plug Valves, Choke Valves, Check Valves, Mud Valves and various wellhead valve parts etc.

Wellhead Manifold: Choke and Kill Manifold, Drilling Floor Manifold, Fracturing manifold, Well Testing Manifold.

Wellhead Equipment: Wellhead Christmas Tree / X-Tree, Casing Head, Casing Hanger, Tubing Head,Tubing Hanger, Casing Spool, Tubing Spool, Drilling Spool etc.

Wellhead Adapter: Spacer Spool / Riser Spool ,Flange Adapter, Union Flange, Double Studded Adapter Flange, Welded Neck Flange, Blind Flange,Companion Flange, Instrument Flange,

Wellhead Clamp & Hub etc.

Wellhead Integral Fittings: Hammer Union, Elbow, Swivel Joint, Block Cross, Block Tee, Straight Pipe, Pipe Loops etc.

Well Pressure Control Equipment: Annular BOP, RAM BOP, Sucker Rod BOP etc

YCJC will constantly insist on the innovation of products, technologies and system and strive for providing the excellent products and services for our customers. We are sincerely welcome you to work together.
