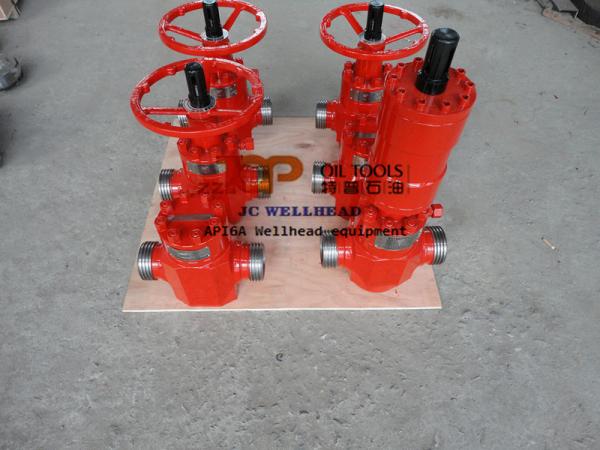

AISI 4130 Flange Connection Wellhead Valves Swing Type Check Valve
AISI 4130 Flange Connection Wellhead Valves Swing Type Check Valve
AISI 4130 Flange Connection Wellhead Valves Swing Type Check Valve
AISI 4130 Flange Connection Wellhead Valves Swing Type Check Valve
Specifications
Brand Name :
JC Wellhead
Model Number :
2 1/16" x 5000 psi check valve
Certification :
API 6A
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
T/T, L/C, D/P
Supply Ability :
300 sets / month
Delivery Time :
30-45 days
Packaging Details :
Polywood case for land, air, ocean shipment
Application :
Oil Well Drilling and Production
Usage :
Well flow control valve
Material Class :
DD
Production Level :
PLS 3
Temperature Class :
U
Standard :
API 6A
Product name :
Swing Type Check Valve
Working pressure :
5000 psi
Flange Specification :
2 1/16"
Connection :
Flange connection
Description

Wellhead API 6A Check Valve Swing Type 2 1/16" x 5000 psi WP

The oil well valves are used in wellhead system for flow controlling, the wellhead valves are manufactured to a high specification from forged steel bodies with stainless internals according to API 6A specification. The check valve is a kind of wellhead valve and they are available from 2000 psi through 20000 psi working pressure in size from 2 1/16” to 7 1/16” depending on pressure range.

Check valve is used to stop the return flow in the high pressure piping. A baffle plate or dart will automatically close when flow returns. The check Valve is a robust design which incorporates all of the desirable features proven to provide long life and trouble free operation. Check valve structure is divided into swing type and lifting type. There are different types of connection available such as flanged connection, hubs connection or unions connection.

Feature of Wellhead Check Valve

* The check valve is designed with Metal to Metal Seal

* Full bore and piggable design

* Stainless steel seat and clapper

* The check valve is made of AISI 4130 forging

Technical parameter of Check Valve

Size Working pressure Connection Standard Working Condition Material grades
2 1/16”

2000 psi

3000 psi

5000 psi

10000psi

15000psi

 Flanged Connection

API 6A

PSL 1-3

PR 1

 Standard AA, BB, CC, DD, EE, FF, HH
2 9/16”
3 1/8”
4 1/16”
7 1/16”

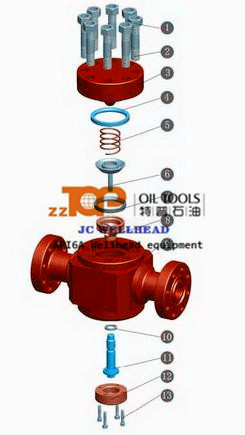

AISI 4130 Flange Connection Wellhead Valves Swing Type Check Valve AISI 4130 Flange Connection Wellhead Valves Swing Type Check Valve

About JC Wellhead

Jingcheng Petroleum Machinery Manufacturing Co.,Ltd was established in 2008, we are specialized in design and manufacturing of the oilfield wellhead equipment. We - YCJC are a registered supplier for CNPC, GWDC, CCDC in China.

Product scope

Wellhead valves: Gate Valves, Plug Valves, Choke Valves, Check Valves, Mud Valves and various wellhead valve parts etc.

Wellhead Manifold: Choke and Kill Manifold, Drilling Floor Manifold, Fracturing manifold, Well Testing Manifold.

Wellhead Equipment: Wellhead Christmas Tree / X-Tree, Casing Head, Casing Hanger, Tubing Head,Tubing Hanger, Casing Spool, Tubing Spool, Drilling Spool etc.

Wellhead Adapter: Spacer Spool / Riser Spool ,Flange Adapter, Union Flange, Double Studded Adapter Flange, Welded Neck Flange, Blind Flange,Companion Flange, Instrument Flange,

Wellhead Clamp & Hub etc.

Wellhead Integral Fittings: Hammer Union, Elbow, Swivel Joint, Block Cross, Block Tee, Straight Pipe, Pipe Loops etc.

Well Pressure Control Equipment: Annular BOP, RAM BOP, Sucker Rod BOP etc

YCJC's advantage:

* Excellent and stable quality of the products conformed with API and ISO standard

* Strict quality control on raw material and machining, we can arrange the SGS or BV to witness the test

* We supply various wellhead products to meet the customers' operation.

* Timely delivery, professional service on export procedure,

* Product guarantee and best after-sales service.

YCJC will constantly insist on the innovation of products, technologies and system and strive for providing the excellent products and services for our customers. We are sincerely welcome you to work together.
