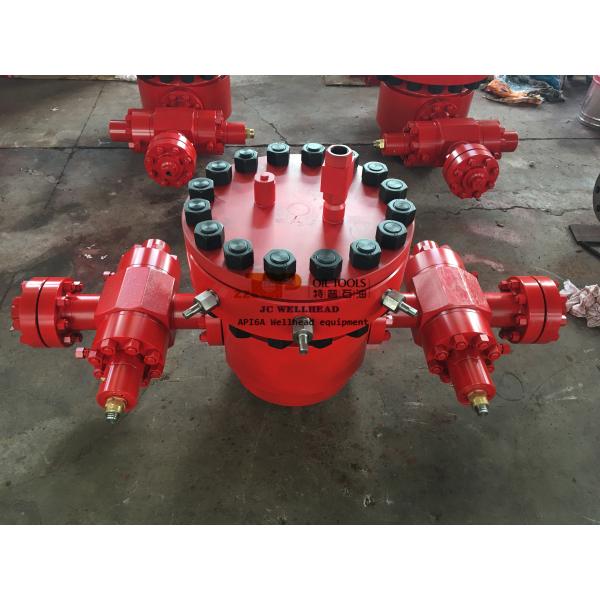

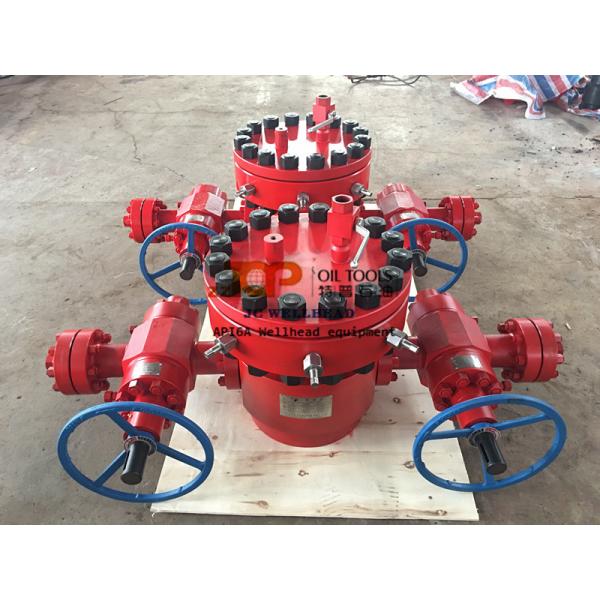

PLS 3 AISI 4130 Alloy Steel Wellhead Casing Hanger 2000psi SOW Connection
PLS 3 AISI 4130 Alloy Steel Wellhead Casing Hanger 2000psi SOW Connection
PLS 3 AISI 4130 Alloy Steel Wellhead Casing Hanger 2000psi SOW Connection
PLS 3 AISI 4130 Alloy Steel Wellhead Casing Hanger 2000psi SOW Connection
Specifications
Brand Name :
JC Wellhead
Model Number :
7 1/16" Wellhead Casing Head
Certification :
API 6A
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
T/T, L/C, D/P
Supply Ability :
100 sets / month
Delivery Time :
30-45 days
Packaging Details :
Polywood case for land, air, ocean shipment
Application :
Oil Well Drilling Operation
Usage :
Wellhead Equipment
Material :
AISI 4130 Alloy Steel
Production Level :
PLS 3
Temperature Class :
U
Standard :
API 6A
Product name :
Casing Hanger Tubing Hanger
Working pressure :
2000 psi
Connection :
SOW
Description

7 1/16"x 2000 psi Wellhead Equipment Casing Head Casing Hanger DSA

The casing head with casing hanger is the part of wellhead equipment used in oil well drilling operation, testing service and production operation. The casing head is designed with compact structure according to API 6A specification, which make sure the reliable operation in the oil and gas well. There are different types of connection are available including welded bottom connection,threaded bottom connection and slip bottom connection. The casing head is installed between casing head and surface casing.

Specification of Casing head TOP Flange

Casing Flange size W.P. (psi) A mm (in) B mm (in) C mm (in)
7” 11” 3, 000 470 (18.50) 162 (6.38) 280 (11.02)
8-5/8” 11” 2, 000 450 (17.72) 203 (7.99) 280 (11.02)
3, 000 470 (18.50) 203 (7.99) 280 (11.02)
5, 000 500 (19.69) 203 (7.99) 280 (11.02)
9-5/8” 11” 2, 000 450 (17.72) 230 (9.06) 280 (11.02)
3, 000 470 (18.50) 230 (9.06) 280 (11.02)
5, 000 500 (19.69) 230 (9.06) 280 (11.02)
10, 000 540 (21.26) 230 (9.06) 280 (11.02)
13-5/8” 5, 000 490 (19.29) 230 (9.06) 350 (13.80)
10-3/4” 11” 2, 000 450 (17.72) 259 (10.20) 280 (11.02)
3, 000 470 (18.50) 259 (10.20) 280 (11.02)
5, 000 500 (19.69) 259 (10.20) 280 (11.02)
10, 000 560 (22.05) 255 (10.04) 280 (11.02)
Casing Flange size W.P. (psi) A mm (in) B mm (in) C mm (in)
11-3/4” 13-5/8” 2, 000 470 (18.50) 279 (10.98) 350 (13.80)
3, 000 470 (18.50) 279 (10.98) 350 (13.80)
5, 000 520 (20.47) 279 (10.98) 350 (13.80)
16-3/4” 3, 000 444 (17.48) 279 (10.98) 422 (16.61)
5, 000 457 (17.99) 279 (10.98) 422 (16.61)
12-3/4” 13-5/8” 5, 000 520 (20.47) 312 (12.28) 350 (13.80)
13-3/8” 13-5/8” 2, 000 470 (18.50) 318 (12.52) 350 (13.80)
13-3/8” 13-5/8” 3, 000 470 (18.50) 318 (12.52) 350 (13.80)
5, 000 520 (20.47) 318 (12.52) 350 (13.80)
16-3/4” 3, 000 470 (18.50) 318 (12.52) 425 (16.73)
5, 000 520 (20.47) 318 (12.52) 425 (16.73)
16” 16-3/4” 2, 000 445 (17.52) 386 (15.20) 425 (16.73)
3, 000 445 (17.52) 386 (15.20) 425 (16.73)
5, 000 457 (17.99) 386 (15.20) 425 (16.73)
20” 20-1/4” 2, 000 490 (19.29) 482 (18.98) 510 (20.08)
20-3/4” 3, 000 490 (19.29) 482 (18.98) 527 (20.75)
21-1/4” 2, 000 490 (19.29) 482 (18.98) 540 (21.26)

Detailed specification of the casing head

1 7 1/16"x2000PSI Casing & Tubing Hanger, without side outlets, top side will be suitable for 7" casing Slip-On Weld Type and cw/ hager for 4"OD tubing
2 7 1/16"x2000PSI Casing Head Spool (cw/ 2ea x 2 1/16"x2000psi flanged connection side outlets)
3 Double Studded Adaptor Flange (Bottom: 7 1/16"x2000PSI - Top 2NPT thread)
4 2 1/16" x 2000PSI Studded Cross
5 Double Studded Adaptor Flange (Bottom: 2 1/16"x2000PSI - Top 2NPT thread equipped with Pressure Gauge)
6 2 1/16" x 2000PSI Gate Valve (w/Flanged Connection)
7 Ring Gasket (BX160)
8 Ring Gasket (RX45)

PLS 3 AISI 4130 Alloy Steel Wellhead Casing Hanger 2000psi SOW Connection PLS 3 AISI 4130 Alloy Steel Wellhead Casing Hanger 2000psi SOW Connection

YCJC's advantage:

With profession engineers we also offer the R&D service to the clients who have special requirements in the oilfield drilling operation and production operation.

*BOP : Taper Rubber Annular BOP, Spherical rubber Annular BOP, Single Ram BOP, Double Ram BOP
* Wellhead Equipment: X-mas tree, casing head, casing hanger, tubing head, tubing hanger, casing spool, tubing spool, API Clamp, API Clamp Hub
* Wellhead valve: Gate valve, Choke valve, Check valve, Mud valve, and valve parts
* Wellhead adapter: Double studded adapter flange, spacer spool, riser spool, drilling spool, weldneck flange, union flange adapter
* Other wellhead equipment parts: Hammer union, Elbow, swivel joint, block cross, Block Tee,
* Oil well manifold: choke manifold, kill manifold, testing manifold

YCJC will constantly insist on the innovation of products, technologies and system and strive for providing the excellent products and services for our customers. We are sincerely welcome you to work together.
