Specifications
Brand Name :
Hiner-pack
Model Number :
JEDEC TRAY SERIES
Place Of Origin :
SHENZHEN CN
Certification :
ISO 9001 ROHS SGS
MOQ :
1000
Price :
$1.5~$6(Prices Are Determined According To Different Incoterms And Quantities)
Packaging Details :
70~100pcs/carton(According To The Customer Demand)
Delivery Time :
Mold:About 25 Days / Product:7~10 Days
Payment Terms :
T/T
Supply Ability :
2000PCS/Day
HS Code :
39239000
Service :
Accept OEM,ODM
Resistance :
1.0x10e4-1.0x10e11Ω
Temperature Resistance :
Up To 150°C Or More
Property :
ESD,Non-ESD
Color :
Customized
Processing :
Injection
Chemical Resistance :
Yes
Description

Description:

In general, JEDEC trays are custom designed and manufactured. Many of them are not only device specific but device manufacturer specific. It’s not uncommon for two component sources’ parts to require different trays because of allowable variation in package sizing. Component footprint (for PCB layout) is more tightly controlled than packaging which varies greatly with packaging technology and material.

Off-the-shelf simply means a manufacturer has enough demand for a specific custom tray that they carry some inventory. More common is open-tooled where a custom mold will be set up and run for any order but often with a minimum quantity and/or setup charges.

Technical Parameters:

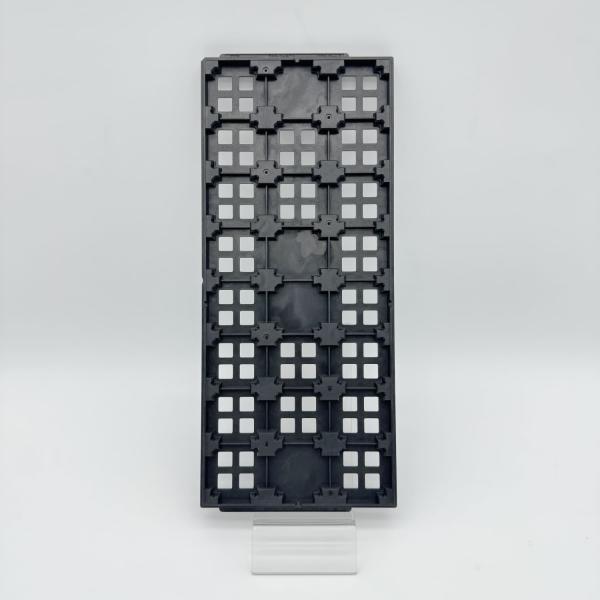

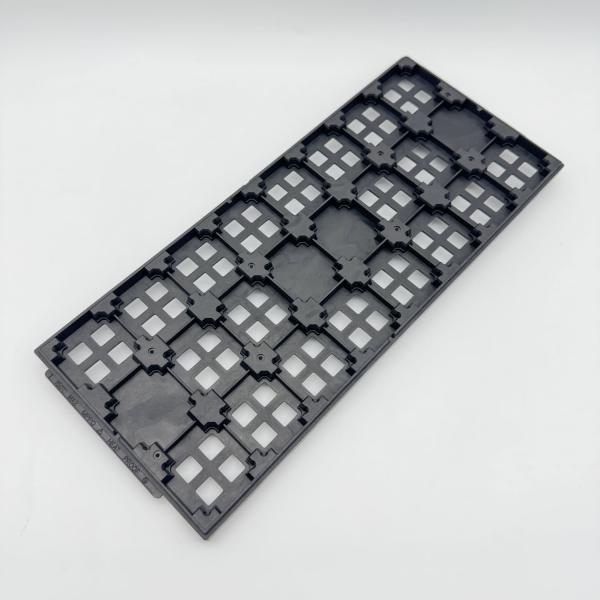

Brand Hiner-pack Outline Line Size 322.6*135.9*12.19mm
Model HN24050 Cavity Size 30*30*6.35mm
Package Type IC Component Matrix QTY 3*8=24PCS
Material MPPO Flatness MAX 0.76mm
Color Black Service Accept OEM,ODM
Resistance 1.0x10e4-1.0x10e11Ω Certificate ROHS

Specifications:

The maximum number of parts a tray can hold depends on various factors, including the part geometry, the application’s processing requirement (such as how parts will be loaded and removed, special tray features, etc.), and the limitations of tray manufacturing.

In most JEDEC trays, parts are organized in a systematic layout of rows and columns, enabling the identification of a part's location through row and column numbers. By knowing the initial position and implementing incremental steps in both rows and columns, the exact position of a part can be determined within the tray.


Antistatic Customize High Temperature Jedec Tray For PCB Manufacturing Equipment

FAQ:

Q: How can I get a quotation?

A: Please provide the details of your requirements as clear as possible. So we can send you the offer at the first time.

For purchasing or further discussion, it is better to contact us with Skype / Email / Phone / Whatsapp, in case of any delays.

Q: How long will it take to get a response?

A:We will reply to you within 24 hours of working day.

Q: What kind of service we provide?

A:We can design IC Tray drawings in advance based on your clear description of the IC or component.Provide one-stop service from design to packaging and shipping.

Q: What is your terms of delivery?

A:We accept EXW,FOB,CIF,DDU,DDP etc. You can choose the one which is the most convenient or cost effective for you.

Q: How to guarantee quality?

A:Our samples through strict testing, the finished products comply with the international JEDEC standards, to ensure 100% qualified rate.
