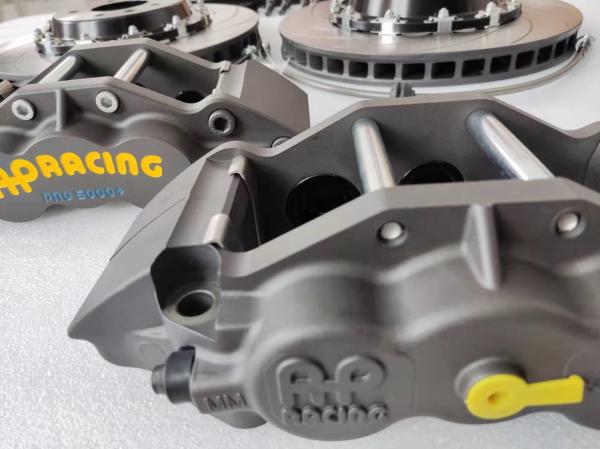

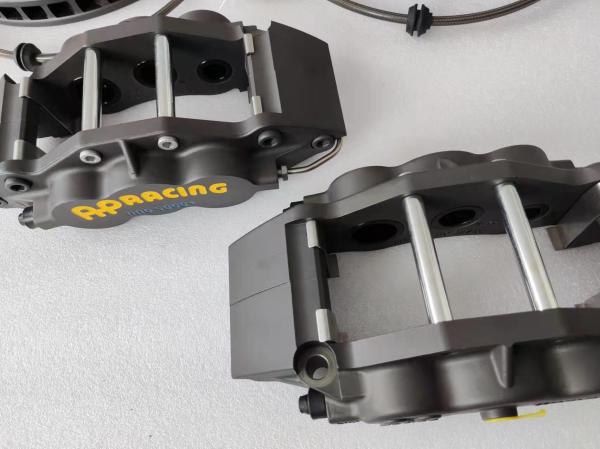

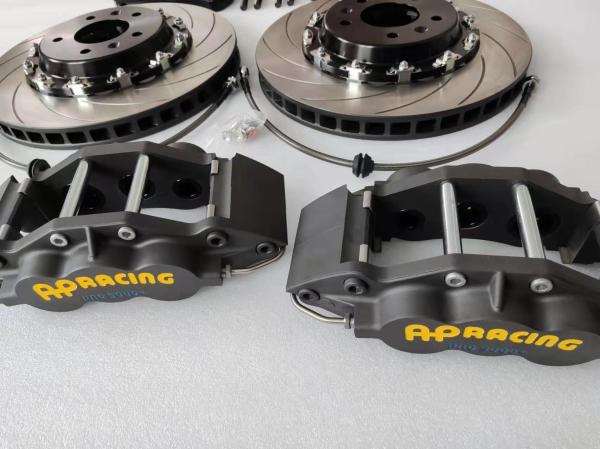

Mazda RX-7 Front Wheel 6 Pot Brake Kit 5060 Caliper 345x32 Brake Discs
Mazda RX-7 Front Wheel 6 Pot Brake Kit 5060 Caliper 345x32 Brake Discs
Mazda RX-7 Front Wheel 6 Pot Brake Kit 5060 Caliper 345x32 Brake Discs
Mazda RX-7 Front Wheel 6 Pot Brake Kit 5060 Caliper 345x32 Brake Discs
Mazda RX-7 Front Wheel 6 Pot Brake Kit 5060 Caliper 345x32 Brake Discs
Mazda RX-7 Front Wheel 6 Pot Brake Kit 5060 Caliper 345x32 Brake Discs
Specifications
Brand Name :
Jekit
Model Number :
JK5060
Place of Origin :
China
MOQ :
1
Price :
Factory price
Payment Terms :
Western Union/Paypal
Supply Ability :
600 sets Every Month
Delivery Time :
5-7 days
Packaging Details :
Box Size 45*45*45cm
Item Name :
JK5060 Brake Kit
Caliper Pots :
6 Pots
Disc size :
345x32
Caliper Material :
Aluminum
Fit Wheel :
Rim 18
Disc Material :
Grey Cast Iron HT250
Center Cap Bracket :
Aluminum 6061 / 7075
Color :
black /Red/Yellow/Custom Color
Description

Mazda RX-7 Front Wheel Brake Kit 5060 Caliper 345x32 Brake Discs

Feature:


Disc size/mm: 345*32
Fit front wheel Size: 18in,
Function: 50% Improve Brake Performance

Caliper:


Material: One-piece Forged Body
Craft: Aerial 6061 Aluminum Alloy
Piston: 6 big pistons, Made of Aluminum Alloy
Finish Treatment: High-temperature Baking Coating

Brake pad:


Material: Ceramic graphite
Heat-resistant: 0-500 ℃
Friction Coefficient: 0.49

Rotor (disc+center bell):
Craft: By Forging
Plane Bounce: <0.03mm


Material:


1.Disc:High Carbon Iron HT250
2.Center bell : Aerial 6061 Aluminum Alloy

Bracket:


Material: Aerial 6061/7075 Aluminum Alloy / /#45 steel
Craft: By Forging

Brake hose:


Material: Inside special rubber; Outside wrapped with steel cover knitted by steel wires

Product introduction

Item Name 5060 brake kit Color Gold, Silver, Black, Blue
Material aluminium alloy Certificate ISO9001
Position Front Quality 100% Tested
Car Make Auto car Place of Origin Guangdong, China (Mainland)

How to choose the combination of front and rear brakes

1. Select according to hub size

J value and et value shall be considered at the same time. If the corresponding space of the hub is insufficient, it will interfere and cannot be installed. It is also forbidden to cut the caliper body / hub due to size problems, which is very dangerous.

2.Front wheel refitting idea

15 inch options: Street version 7600 and competitive version 9444

17 inch options: Street version 9200 / GT4 and competitive version 9440

18 inch optional: Street version 9040 9540 8530 / GT6 18Z AMG6 competitive version 9448 9660 9665 / GT4

Wheels over 19 inches can be selected: Street version 8520 8521 8522 / GT6 AMG6 GTS6 (referred to as 85 series, with different piston area of the same shape)

Street version 9560 9561 9562 (referred to as 95 Series, with different piston areas of the same shape)

3.Rear wheel modification idea (the front wheel shall be determined first, and then the corresponding ratio shall be made)

Front four pistons: 9200 8530 9540 rear two pistons: 5317

Front six pistons: 9040 / GT6 rear four pistons: 9202 / 7609 / GT4

Front six pistons: 8520 8521 8522 / GT6 AMG6 GTS6 rear four pistons: 8530 / 8540 / 8560 /GT4

Front six pistons: 9560 9561 9562 / GT6 AMG6 GTS6 rear four pistons: 9541 / 9542 / GT4

The collocation needs to follow the first six rear four front four rear two front big four rear small four (the car power needs to be distributed, and so does the braking force)

Our advantage:


1. Factory CNC professional forging ,fast delivery
2. The price of the factory allows you to have enough profit
3. Customize according to the model to meet your personalized needs fast delivery
4. Professional supplier of performance auto parts. More than ten years of experience in auto parts technology, focusing on professionalism is worthy of your trust.

RFQ

If you need a complete modified caliper kit,Please contact customer service
Please provide:
1. What Car? What year?
2. Wheel hub size? For example, 18-inch 19-inch
3. Modified wheel hub or original wheel hub?
4.Can you give me the Chassis number or frame number(VIN number)?
The above information is used for accurate recommendation of products and accurate quotation
