I Beam Plain Trolley 2 Ton 0.5 Ton Adjustable For Construction Site Odm
I Beam Plain Trolley 2 Ton 0.5 Ton Adjustable For Construction Site Odm
I Beam Plain Trolley 2 Ton 0.5 Ton Adjustable For Construction Site Odm
I Beam Plain Trolley 2 Ton 0.5 Ton Adjustable For Construction Site Odm
I Beam Plain Trolley 2 Ton 0.5 Ton Adjustable For Construction Site Odm
I Beam Plain Trolley 2 Ton 0.5 Ton Adjustable For Construction Site Odm
I Beam Plain Trolley 2 Ton 0.5 Ton Adjustable For Construction Site Odm
I Beam Plain Trolley 2 Ton 0.5 Ton Adjustable For Construction Site Odm
I Beam Plain Trolley 2 Ton 0.5 Ton Adjustable For Construction Site Odm
I Beam Plain Trolley 2 Ton 0.5 Ton Adjustable For Construction Site Odm
Specifications
Place of Origin :
China
Brand Name :
Jentan
Certification :
CE;GS;EN;ISI;AU;UL;CUL;TUV
MOQ :
1 piece
Price :
Negotiation
Delivery Time :
7-60 days
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
500000pcs per year
Model Number :
JTPT-A
Usage :
Industrial
Application :
Lifting and Moving Heavy Objects
Warranty :
1 Year
Load Capacity :
500kg
Power Source :
Manual
Operation Method :
Hand Crank
Safety Features :
Overload Protection
Lifting Height :
3m
Dimensions :
50cm x 30cm x 20cm
Color :
Yellow
Type :
Chain Hoist
Material :
Steel
Weight :
10kg
Description

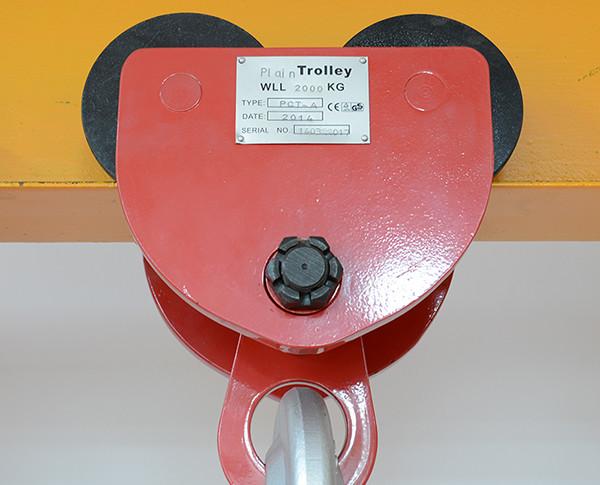

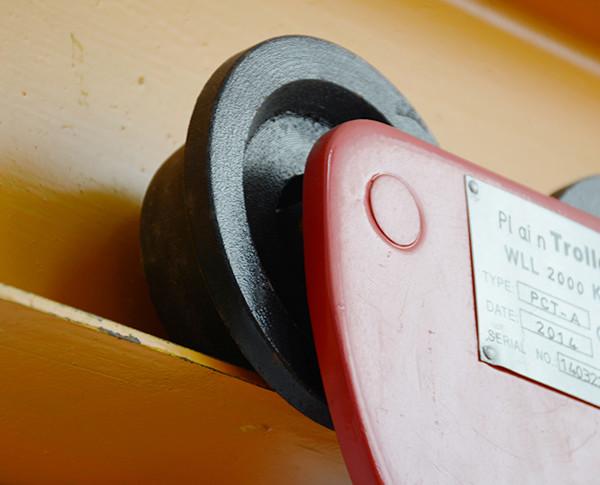

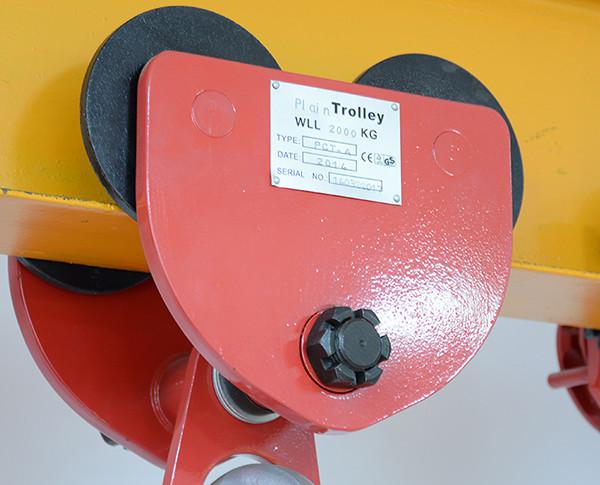

JTPT-A Plain Trolley

Traversing along the lower edge of an I-beam, the JTPT-A Plain Trolley is versatile and applicable in environments such as factories, mines, wharves, docks, warehouses, construction sites, and machine rooms. Its primary function is the installation of machinery equipment and the lifting of goods.

Tailored for work environments without power, it prioritizes safety and simple maintenance, featuring a compact structure and a small package size. The wheel distance is easily adjustable, making it compatible with various types of I-beams. Boasting high transmission efficiency that requires minimal output, it can navigate with a small turning diameter. The hinge links the left and right side plates, ensuring equal force distribution.

It is crucial not to exceed the rated capacity of the hand trolley, and working or passing under a load is strictly prohibited to prevent accidents. Regularly applying grease to the bearings and rail surfaces is essential, simultaneously checking for any firmware looseness. If any anomalies arise, discontinue product use immediately, investigate the cause, and rectify it. Regular maintenance is necessary for optimal functionality.

I Beam Plain Trolley 2 Ton 0.5 Ton Adjustable For Construction Site Odm

Capacity I-Beam Net weight Rated Dimensions(MM)
(T) width(MM) (KG) load(KN) A B C H
0.5T 68-126 5 6.25 208 216 200 150
1T 80-146 8.7 12.5 242 260 253 170
2T 80-168 10.4 25 280 300 310 180
3T 88-168 24 37.5 300 345 357 190
5T 100-180 36 62.5 316 395 400 210
