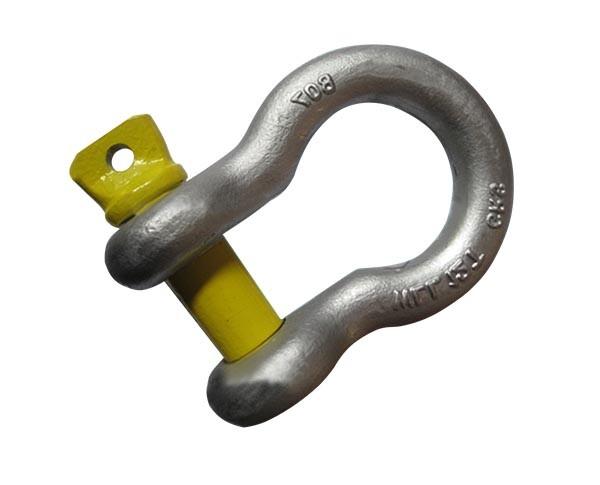

JTR-SE17 Australian Type Rigging Hardware Grade S Marine Towing Bow Shackle
JTR-SE17 Australian Type Rigging Hardware Grade S Marine Towing Bow Shackle
Specifications
Place of Origin :
China
Brand Name :
Jentan
Certification :
CE;GS;EN;ISI;AU;UL;CUL;TUV
MOQ :
1 piece
Price :
Negotiation
Delivery Time :
7-60 days
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
500000pcs per year
Description

JTR-SE17 Australian Type Rigging Hardware Grade S Marine Towing Bow Shackle


JTR-SE17
Australian Type Rigging Hardware Grade S Marine Towing Bow Shackle
MATERIAL: Body was carbon steel,Pin was alloy steel
CONSTRUCTION: Quenched and Tempered
STANDARD: AS 2741-2002
GRADE: S(6)

Product Code working load limit diameter bow(mm) width inside (mm) diameter pin(mm)
JTR-SE1701 WLL0.33T 5 10 6
JTR-SE1702 WLL0.5T 6 12 8
JTR-SE1703 WLL0.75T 8 13 10
JTR-SE1704 WLL1T 10 17 11
JTR-SE1705 WLL1.5T 11 18 13
JTR-SE1706 WLL2T 13 21 16
JTR-SE1707 WLL3.25T 16 27 19
JTR-SE1708 WLL4.75T 19 32 22
JTR-SE1709 WLL6.5T 22 37 25
JTR-SE1710 WLL8.5T 25 43 29
JTR-SE1711 WLL9.5T 29 46 32
JTR-SE1712 WLL12T 32 52 35
JTR-SE1713 WLL13.5T 35 57 38
JTR-SE1714 WLL17T 38 60 41
JTR-SE1715 WLL25T 44 73 51
JTR-SE1716 WLL35T 51 83 57
JTR-SE1717 WLL55T 63 105 68
JTR-SE1718 WLL85T 76 127 83
