JTHW-C Hand Winch
JTHW-C Hand Winch
JTHW-C Hand Winch
JTHW-C Hand Winch
JTHW-C Hand Winch
JTHW-C Hand Winch
JTHW-C Hand Winch
JTHW-C Hand Winch
Specifications
Place of Origin :
China
Brand Name :
Jentan
Certification :
CE;GS;EN;ISI;AU;UL;CUL;TUV
MOQ :
1 piece
Price :
Negotiation
Delivery Time :
7-60 days
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
500000pcs per year
Description

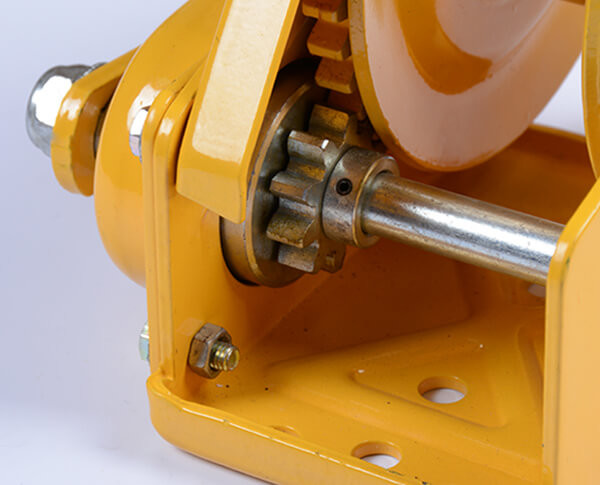

JTHW-C Hand Winch

Technical Specialties

JENTAN Brake Hand Winches offer a cost-effective solution for a wide range of applications, capable of pulling or lifting loads. Key features include:

Positive action brake that securely holds the load in any position.
Compact, lightweight, and rugged construction.
Mechanical components are enclosed for protection.
Baked enamel finish provides corrosion protection.
Rope to drum fixing clamp is included.
Available in a corrosion-resistant grade 304 stainless steel option.

Additional features:

Gears are robust, durable, and electroplated for enhanced corrosion resistance.

The JC-C model features a double brake pawl for extra safety.

JTHW-C Hand Winch

JC-C型手摇绞车性能参数表 JC-C WINCH SPEIFICATIONS
规格 Model 1200lb 1800lb 2600lb
额定载重量
Rated capacity		 t 1200 1800 2600
试验载荷
Test load		 KN 8 12 17.5
速比
Transmission ratio		 4.2:1 5:1 10:1
手摇力
Hand operated strength		 N 180 190 190
主要尺寸
mm
Dimensions		 A Φ48 Φ60 Φ75
B Φ134 Φ180 Φ180
C 51 60 63
D 157 190 209
E Φ27 Φ27 Φ27
F 273 288 307
G 110 110 110
H 156 203 216
J 184 246 294
R 208 319 319
净重(不含钢丝绳)
Net weight(no wire rope)		 kg 3.7 8.1 10.3
