OEM High Strength Explosion Proof Hoist Chain Block Pendant Control
OEM High Strength Explosion Proof Hoist Chain Block Pendant Control
Specifications
Brand Name :
Jentan
Model Number :
JTVD-B
Certification :
CE;GS;EN;ISI;AU;UL;CUL;TUV
Place of Origin :
China
MOQ :
1 piece
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
500000pcs per year
Delivery Time :
7-60 days
Price :
Negotiation
Control Method :
Pendant Control
Model :
EHP-100
Color :
Yellow
Material :
Steel
Power Source :
Electric
Hoist Type :
Wire Rope
Ip Rating :
IP55
Explosion Protection Class :
Exd II CT4
Frequency :
50Hz
Capacity :
1000kg
Voltage :
380V-415V
Lifting Speed :
8m/min
Description

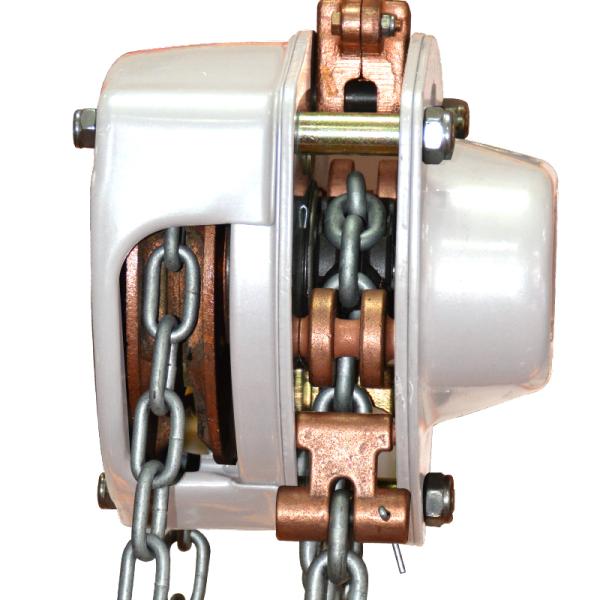

JTVD-B explosion proof chain block

●Active double pawl brake brake system, powder metallurgy sintering integrated friction plate
●Alloy steel forged gears and axles, integrated gear design
●Alloy steel copper-plated upper and lower hook, forging safety sheet
●The internal gear and structure are treated with corrosion resistance and fireproof flower
●Solid steel structure, double layer design protection system of brake chamber

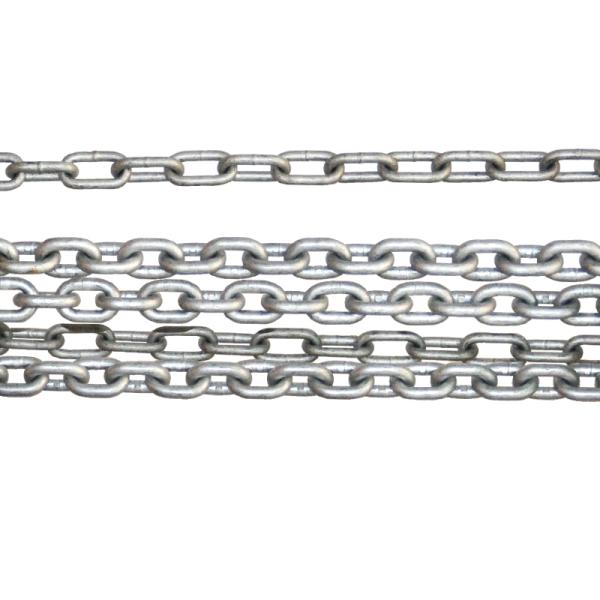

●Standard with fireproof flower load chain, stainless steel hand zipper and reinforced tail block
●Working temperature: -40°C to +50*C
●Zone: Zone1&2 (gas), Zone21&22 (dust)
●Explosion-proof level:EX I12GDc IIC t4 IIC T135°C
●Ultra-high strength - the life of the hoist is more than 1500 times of EU standard fatigue test
●Can be customized ultra-high temperature or ultra-low temperature products
Get a product quote 400 711 1588
Call the service hotline PDF Download

Standard
BS EN 13157, ANSI/ASME B30.16, AS 1418.2,JB/T 7334, CNEX 18.5240,isi 2015

Product selection
1. Overload limiter 2. Stainless steel hand zipper 3. High-quality special chain 4. 100-grade load chain

Application industry

Explosion-proof hand hoist is widely used in petroleum, chemical, gas, textile, pharmaceutical, storage and transportation, coal mines, and other high temperature, high dust, corrosive industries, for equipment maintenance and installation of the flammable and explosive places. Can be used alone, can also be used with explosion-proof monorail car.
