2T 4T Mechanical Lifting Devices Plate Lifting Clamp Horizontal Two Legged
2T 4T Mechanical Lifting Devices Plate Lifting Clamp Horizontal Two Legged
Specifications
Place of Origin :
China
Brand Name :
Jentan
Certification :
CE;GS;EN;ISI;AU;UL;CUL;TUV
MOQ :
1 piece
Price :
Negotiation
Delivery Time :
7-60 days
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
500000pcs per year
Model Number :
JTLC-F
Mobility :
Stationary/Mobile
Application :
Construction/Manufacturing/Warehousing
Operating Environment :
Indoor/Outdoor
Control Method :
Remote Control/Manual Control
Type :
Manual/Electric
Safety Features :
Overload Protection/Emergency Stop
Power Source :
Electric/Hydraulic
Lifting Height :
Up to 20 meters
Warranty :
1-5 years
Maintenance :
Regular/Periodic
Load Capacity :
Up to 10 tons
Certifications :
CE/ISO
Material :
Steel/Aluminum
Installation :
Simple/Requires Professional
Description

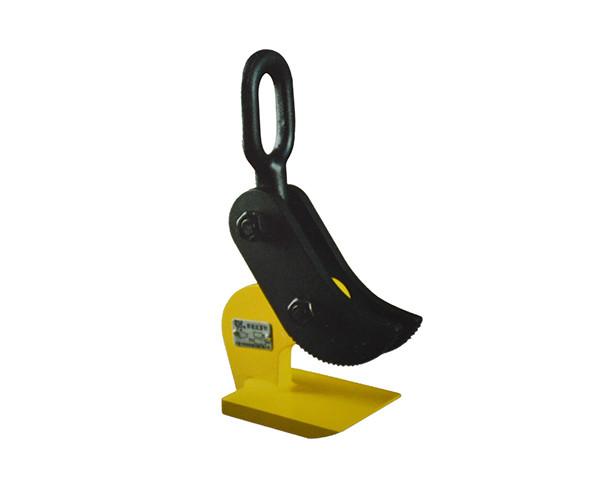

JTLC-F Horizontal Lifting Clamp

Provide an English description in the second slot.

The LC-H3 horizontal lifting clamp comprises two clamps with a two-legged chain system.

Specifically designed for transporting single plates with a minimum thickness of approximately 5mm, as well as for plate bundles.

The two-legged version is suitable for small plates. For extra-large or long plates, it is advisable to use two of the two-legged lifting clamps in conjunction with a spreader beam.

In the standard version, the lifting clamp is suitable for plates up to 1500mm in width with a maximum top angle of the chain at 90°.

Clamps with longer chains for larger plate widths are available upon request. The working load limit (WLL) applies to a pair of lifting clamps.

Single clamps are also available.

Model Rated Capacity(t) Jaw opening(mm) N.W(Kg)
2T 2 5-32 11
4T 4 5-50 17
6T 6 5-75 46
