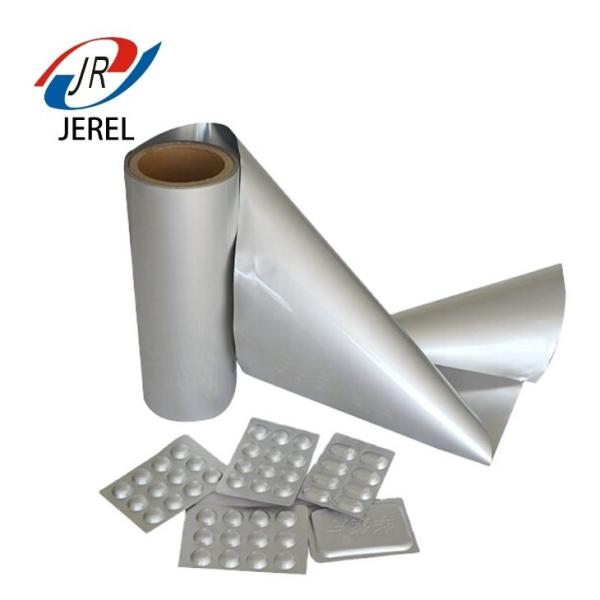

JEREL COLD FORM OPA/ALU/PVC Composited Blister foil
JEREL COLD FORM OPA/ALU/PVC Composited Blister foil
Specifications
Description

PRODUCT SPECIFICATION & PACKING


Product Namealu alu foil/alu alu bottom foil/cold forming alu foil

Alloy 8021-O

Width ≤630mm

Thickness 140-160mic

Construction OPA/ALU/PVC

ID 76mm/152mm(3 inches/6 inches)

ED 280mm

Length 360mtr(150mic)/330mtr (160mic)

Weight 241g/㎡(150mic)/281g/㎡, 22kg(250mm width roll)

Packing PE film/Foam gasket/plastic plug/carton/pallet

Carton Size 290*290*(width+10)mm

Container Load20-25 tons in 20’container

JEREL COLD FORM OPA/ALU/PVC Composited Blister foil

PRODUCT PERFORMANCE


- High barrier, easy to shape, no cracking, no delamination

- 160mic thickness is suitable for double zero size and below blister

- 150mic thickness is suitable for single zero size and below blister

- Water vapor transmission rate, national standard 0.5g/㎡24h

- Gas transmission rate:national standard 0.5㎤/㎡24h0.1㎫V.S.our company data 0.02㎤/㎡24h0.1㎫


Cold forming aluminum foil, or we can short as alu alu foil, is with good material features. The smooth surface and shinny color will enrich the packing of medicine inside. Also with good protection from oxygen and steam.


Appearance
Flat, even and clean.
No perforation, peculiar odor impurity, conglutination.
No obvious abnormality (separation, damage, air bubble, wrinkle, dirt) between the layers.
Quantity of penetrated steam
≤0.5g/(m2.24h)
Quantity of penetrated oxygen
≤0.5cm3/(m2.24h.0.1Mpa)
Tear Strength
OPA/AL≥7.0N/15MM
AL/PVC≥6.5N/15MM
Sealing Strength
≥8.0N/15MM
Recommendations as to store conditions
Max.12 Months at: Temperature 15-35°C and Relative Humidity: 30-65%
