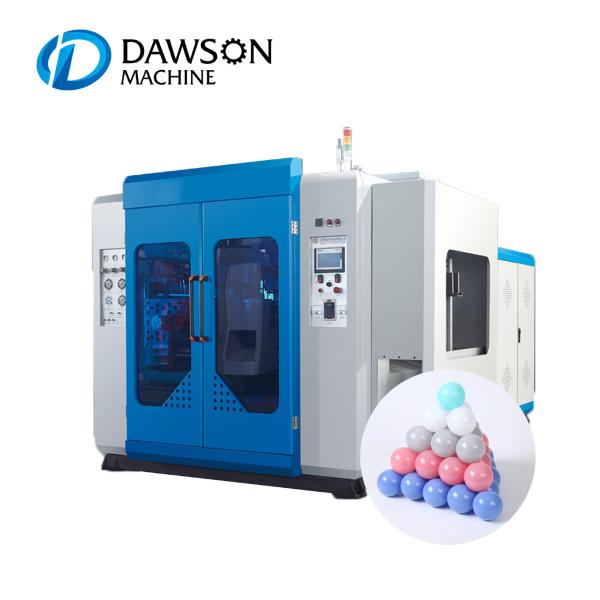

PE Sea Ball Extrusion Blow Molding Machine 500ml Plastic Bottle 2 Color 75mm
PE Sea Ball Extrusion Blow Molding Machine 500ml Plastic Bottle 2 Color 75mm
PE Sea Ball Extrusion Blow Molding Machine 500ml Plastic Bottle 2 Color 75mm
PE Sea Ball Extrusion Blow Molding Machine 500ml Plastic Bottle 2 Color 75mm
PE Sea Ball Extrusion Blow Molding Machine 500ml Plastic Bottle 2 Color 75mm
PE Sea Ball Extrusion Blow Molding Machine 500ml Plastic Bottle 2 Color 75mm
Specifications
Brand Name :
DAWSON
Model Number :
DSB80
Certification :
CE
Place of Origin :
China
MOQ :
1
Price :
USD 15,700 ~ 95,000 / set
Payment Terms :
L/C, T/T
Supply Ability :
20 set/month
Delivery Time :
5-8 work days
Packaging Details :
Standard Export Packing
Screw diameter (mm) :
75 mm
Automation :
Automatic
Screw Heating Power(kW) :
7 kW
Mold Platen Size(Width)(mm) :
380 mm
Air Pressure(MPa) :
0.6 MPa
Video outgoing-inspection :
Provided
Instructions provided :
Instructions in Chinese and English
Mold Material :
P20, 2316, S136H, Aluminum with beryllium copper.
Description

PE bottle sea ball 500ml plastic bottle extrusion Blow Molding Machine 2 color balls making machine

Products Description

DAWSON MACHINERY & MOULD GROUP
Extrusion Blow Molding Machine ABLB75
can produce sea ball ,milk bottles,plastic oil bottles, detergent
bottles,shampoo bottles,medical bottles,plastic balls,tube, plastic cans,containers,jars,tools,toys,etc.
Machine Model
Max. Ball size
Production forecast
ABLB65/ 75
Double Station Double Head
50-80 mm
1400-1500 BPH
Double Station 3 Head
50-80 mm
280~320 BPH

Technical Parameters

Name
Units
ABLB65II
ABLB75II
Max.product volume
L
3.5
8
Screw diameter
MM
65
75
Screw drive power
KW
18.5
22
Output of HDPE
KG/H
75
100
Oil pump drive power
KW
7.5
7.5
Clamping force
KN
65
80
Max.size of mold
MM
320×350
400×430
Template size
MM
290×320
380×420
Mold stroke
MM
150-500
170-520
Max.die diameter
MM
170
170
Size of machine
L×W×H
3.9×2.2×2.6
4.2×2.2×2.7
Weight of machine
TON
6.5
7.5

Name Trader
electronic parts
Microcomputer control system Japanese MITSUBISHI
Temperature Controller Japanese MITSUBISHI
Auxiliary Relay OMRON
contactor Schneider from France
Electric motor SIEMENS MOTOR
Power Source TAIWAN MEANWELL
Inverter DELTA
hydraulic parts
Oil pump TAIWAN HIGH-TECH
Valve JAPAN YUKEN
Oil pump and connection JAPAN YUKEN
Sealed part HALLITE
air control system
Cylinder AIRTAC
Air Valve AIRTAC

High Quality Mould&Company Profile

In the blow molding process, blow molding mold is an essential and important part. A good blow molding mold makes the molding more smooth, the finished product more beautiful and smooth, and reduces the influence of burr on the appearance and use of the product.

About mould material:
* Steel S50C#: Basic material for blowing moulds, competitive price
* Steel P20#: Common blow molding mould material, medium quality
* 2316 stainless steel: High quality mould material stainless steel.
* S136H : High quality blow molding steel, very durable and strong.
* Aluminium 7075# inserted beryllium copper: the best blow molding mould material,
aluminium mould has good cooling, and beryllium copper is very durable as well.

DAWSON MACHINERY & MOULD GROUP
DAWSON GROUP is committed to extrusion blow molding machine & mould designing, manufacturing. DAWSON has grown to become one of Chinese leading extrusion blow molding factory. With a long-standing experience and a clear focus on extrusion blow molding design, DAWSON is always a step ahead regarding the technical-know and craftsmanship of its team. We have gathered a deep knowledge of every aspect of the blow molding process, from the big picture to the last detail, so we know which steps of the design and production stages need to be focused on. Our team of experts can set up the equipment to tap its full potential. We have high precision equipment, such as Sweden CNC machining center, Beijing Jingdiao, Japanese precision grinding machine, three axes automatic EDM, CNC lathe, three axis CNC deep hole drilling machine, three-dimensional detector, three-dimensional laser number reading machine and other high precision mold manufacturing and testing equipment. The company mainly provides high quality molds for the packaging industry in the fields of daily chemical, lubricating oil, medicine, chemical, food and so on. The service brands are Estee Lauder, L 'Oreal, Unilever, P&G, ALPLA, Graham, Mentholatum, Mobil, Shell, Caltex, Mayinglong, Harbin, Petro China, Mengniu, Zilin, etc. As a full-service provider, we take care of all tasks involved in a project, from the planning to
the blow molding design to the validation, and we ensure that every single part produced in our premises meets the highest quality
standards.


DAWSON will be your reliable friend in China, and we will always do our best to give you max support!

PE Sea Ball Extrusion Blow Molding Machine 500ml Plastic Bottle 2 Color 75mm

Details Images

PE Sea Ball Extrusion Blow Molding Machine 500ml Plastic Bottle 2 Color 75mm

FAQ

Q: Can we visit your factory?

Sure. We located in Zhangjiagang city which is very near Shanghai. For overseas customers, you can fly to Shanghai Pudong
International Airport. We can
pick you up in the Airport. (or Hongqiao International Airport. ) We also provide visit online by video.

Q: How can we get the exact price of plastic machine?

Contact us with the products size, shape, annual quantity and photo if possible. We can recommend our machine models with
quotation.

Q: Do you provide any spare parts with machine?

Yes, we offer all necessary spare parts before shipment.(contact us for packing list )

Q: How about your after-sale service ?

We offer manual instruction and engineer training before loading,after shipment we provide 24 HRS online support, video technical
support or field installation assist.

Q: What is the lead time?

For customized machine, it takes about 45-50 days after deposit. For stock machine, fast shipment. ( The actual production cycle will vary according to the degree of customization.)

Q: What is the warranty period for your machine ?

12 months warranty for components and technical support .

Q: Do you provide custom machines?

Most of our machines are customized. Our goal is efficiency and stable performance. We design the machines according to customers
products to meet customer' needs.

Q: How can we install the machine when it arrives?

We can send experienced technicians to customer's country for guiding the installation and commission the machine, also train the
customer's employees.

Q: What's DAWSON's advantage?

DAWSON provide customers with turnkey projects. Including plant design, plastic machine and mold installation, debugging, also we
can source the auxiliary equipments for customers. We can ship the full set of machines after testing in our factory. It will save
a lot of cost and time.

DAWSON will be your reliable friend in China, and we will always do our best to give you max support!
