220 Liter HDPE Blow Molding Machine Plastic Blowing Drums Making Machine
220 Liter HDPE Blow Molding Machine Plastic Blowing Drums Making Machine
220 Liter HDPE Blow Molding Machine Plastic Blowing Drums Making Machine
220 Liter HDPE Blow Molding Machine Plastic Blowing Drums Making Machine
220 Liter HDPE Blow Molding Machine Plastic Blowing Drums Making Machine
220 Liter HDPE Blow Molding Machine Plastic Blowing Drums Making Machine
220 Liter HDPE Blow Molding Machine Plastic Blowing Drums Making Machine
220 Liter HDPE Blow Molding Machine Plastic Blowing Drums Making Machine
Specifications
Brand Name :
DAWSON
Model Number :
DSBD120
Certification :
CE
Place of Origin :
CHINA
MOQ :
1 set
Price :
US $150,000-175,000 / set
Payment Terms :
L/C, T/T
Supply Ability :
20-30 sets / month
Delivery Time :
60days
Packaging Details :
Standard Export Packing
Screw Diameter :
120mm
Station Number :
Single
Screw Drive Power :
75 Kw
Clamping Force :
800 Kn
Mold Stroke :
600-1500mm
Suitable product volume :
100-250 L
Trademark :
Dawson
Specification :
ABLD120
HS Code :
8477301000
Max. Product Volume :
300L
Robot System :
Available
Guarantee Time :
One Year
Export Port :
Shanghai
Screw L/D Ratio :
28 L/D
Output of HDPE :
240 Kg/H
Max.Size of Mold :
1000X1500mm
After-Sales Service Provided :
Engineers Available to Service Machinery Overseas
Transport Package :
Film Packing
Plastic processed :
PE,PET,PP,HDPE,PVC
Origin :
Zhangjiagang
Description
220 Liter HDPE Blow Molding Machine Plastic Blowing Drums Making Machine

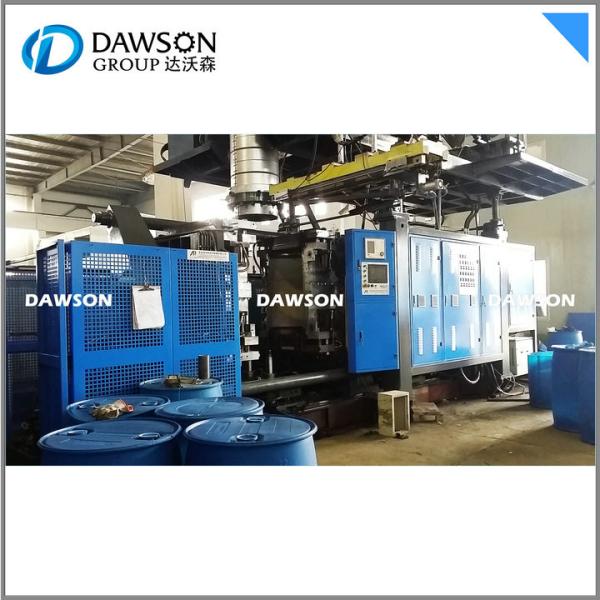

DSBD120 Accumulation Blow Molding Machine


was specially designed for making plastic water tanks, plastic cans, lubricant oil bottles, plastic drums, plastic toys and other plastic containers not over 250L.

The features of this machine:

(1)Plastic containers and bottles in all shapes are available, the max. Product volume is up to 250L.

(2)Most components of the blow moulding machine are from famous world brand.

(3)Fully automatic process with low power consumption, high efficiency, quick and safe operation, easy for maintenance.

(4)Accumulation die head, MOOG parison controller equipped.

(5)Bottom blow technology make the product perfect.

(6)Auto lubricant system controlled by PLC.

Blow Molding Machine ABLD120

Max. Product volume
250liters

Output capacities
as per samples

Screw diameter
120mm

Screw L/D ratio
28 L/D

Screw drive power
75 KW

Screw heating capacity
30 KW

No.of heating zone
5 zones

Output of HDPE
240 KG/H

Oil pump drive power
45 KW

Clamping force
800 KN

Max.size of mold
1000X1500mm

Mold stroke
600-1500mm

Max.die diameter
520mm

Die heating power
12 KW

Die heating segments
5 zones

Blowing pressure
0.8mpa

Air volume
1.6 M³/MIN

Cooling water pressure
0.3mpa

Water consumption
180 L/MIN


220 Liter HDPE Blow Molding Machine Plastic Blowing Drums Making Machine
220 Liter HDPE Blow Molding Machine Plastic Blowing Drums Making Machine

DAWSON MACHINERY & MOULD GROUP
***EXTRUSION BLOW MOLDING MACHINE EXPERT***

Our customers are all around the world.

Vietnam, Australia, Indonesia, Malaysia, Thailand, Sri Lanka, Kazakhstan, Russia, UAE, Saudi Arabia, Malta, Romania, Italy, India, Syria, Ethiopia, Egypt, Sudan, Tunisia, Algeria, Kenya, Nigeria, South Africa, Zimbabwe, Mexico, Guatemala, Ecuador, Colombia, Venezuela, Peru....


Accumulation Blow Molding Machine ABLD120
220 Liter HDPE Blow Molding Machine Plastic Blowing Drums Making Machine

220 Liter HDPE Blow Molding Machine Plastic Blowing Drums Making Machine
