Accumulation Type Blow Molding Machine for 250L HDPE Chemical Drum
Accumulation Type Blow Molding Machine for 250L HDPE Chemical Drum
Accumulation Type Blow Molding Machine for 250L HDPE Chemical Drum
Accumulation Type Blow Molding Machine for 250L HDPE Chemical Drum
Accumulation Type Blow Molding Machine for 250L HDPE Chemical Drum
Accumulation Type Blow Molding Machine for 250L HDPE Chemical Drum
Accumulation Type Blow Molding Machine for 250L HDPE Chemical Drum
Accumulation Type Blow Molding Machine for 250L HDPE Chemical Drum
Specifications
Brand Name :
DAWSON
Model Number :
DSB120
Certification :
CE
Place of Origin :
CHINA
MOQ :
1 set
Price :
USD 90,000 ~ 170,000 / set
Payment Terms :
L/C, T/T
Supply Ability :
20 sets / month
Delivery Time :
50~100 Days
Packaging Details :
Standard Export Packing
Output Capacities :
18~25 PCS/H
Model NO. :
DSB120
After-Sales Service :
Engineers Available to Service Machinery Overseas
Screw L/D Ratio :
28 L/D
Die Heating Segments :
5 Zones
Mold Stroke :
600-1500mm
Trademark :
Dawson
Specification :
DSB120
HS Code :
8477301000
Max. Product Volume :
300L
Screw Diameter :
120mm
Machine Lifespan :
>20 Years
Voltage :
Customer Specified
Blowing Pressure :
0.8MPa
Max.Die Diameter :
520mm
Max.Size of Mold :
1000X1500mm
Transport Package :
Film Packing
Description

Accumulation Type Blow Molding Machine for 250L HDPE Chemical Drum

Extrusion blow molding machine ABLD120
Product Application

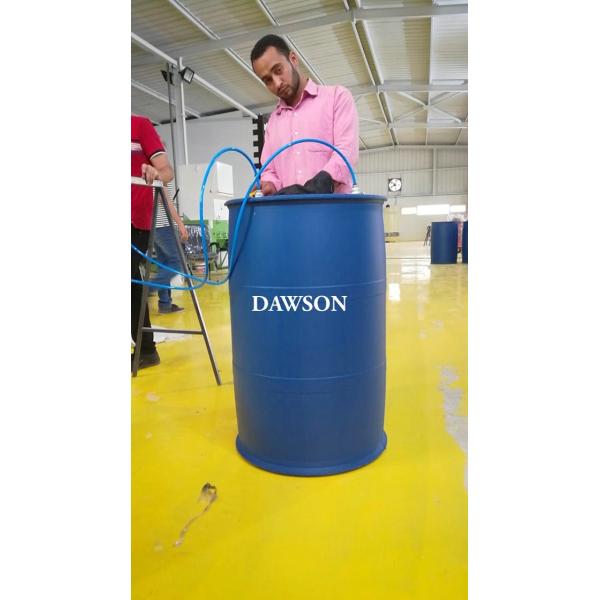

This product is mainly used to pack chemical liquid, medical liquid, liquid food, paintings and grease, etc.

1. Any inquires will be replied in the first time.

2. High quality products, competitive price, fast lead time.

3. Our sales staff will be have a good communication with you ,let you fully understand the situation of our enterprises and products.

4. We will provide high quality overseas service ,our technical staff will be able to provide you with technical support ,for you personally to overseas assembly and test equipment.

5. Our customer service staff will put your feedback to the technical staff in the first time, timely solve your problem.

Basic parameters Suitable material PE
Max volume 250L
Output capacity 20~25 pcs/h
Size 8.6×3.8×5.8 (M)
Weight 38 T
system Specification Parameters Note

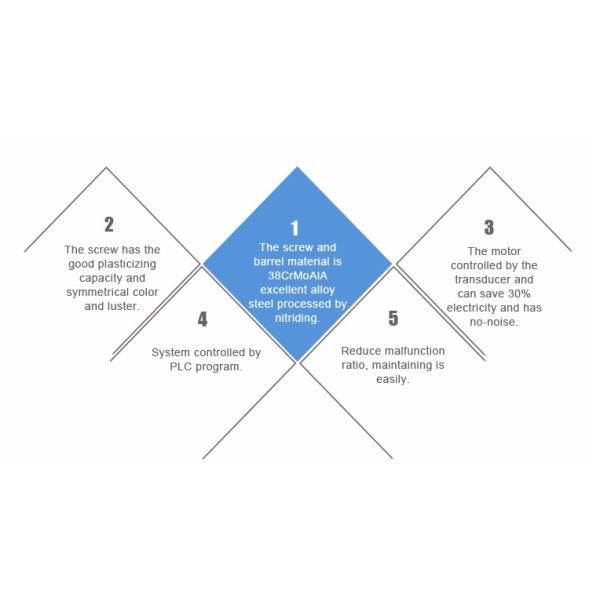

Plasticizion system Summarize High efficient low power consumption plasticizion system,transducer control,self-protect function when started at low temperature
Reducer Hard finishing,High intension,Low noise reducer
Screw ∮120mm,L/D ratio 28, 38CrMoALA Cooling system available
Plasticization 320~400 Kg/H HDPE
Heating Zone 5~6 Aluminum Heater Automatic heating
Heating power 36KW/H
Extrusion Motor Motor 132kw (380V,50HZ)
Cooling Fan 5~6zone Automatic cooling
Extrusion system Summarize High-grade alloy steel, center feeding
Die head number 1
Center distance of die heads /
Max die mouth ∮600mm
Heating zone 6 Stainless steel heating cycle
Clamping system Summarize High intension, rigidity, center mold locking, stable mould opening and clamping system
Clamping force 850~900KN
Template distance 850~1850mm
Max mould size 1200X1800mm
Mould material High grade 50# steel
Electric system Summarize PLC+ touch screen(man-machine interface)standard extrusion blow molding machine controlling system(AUTO monitoring, fault-alarm, auto counting ,auxiliary function available)
Japanese Mitsubishi PLC
system
Operate interface Touch screen, automatic self-diagnose alarm system
Temperature control Automatic temperature control module
Movement control Japanese Mitsubishi, Chinese/English
Version
Electric protection Ampere overload, electric short circuit self-protection function
Hydraulic system Summarize Multiple function hydraulic integrated block Proportional control, high efficient
Oil pump motor Three phase asynchronous motor (380V/220V,50/60HZ) 22kw
Oil pump Imported double pump
Valves Imported oil pump valves and connections
Oil pipes Double layer overpressure resistant
System pressure 60Kg/cm²
Cooling system Separate water cooling cycle, oil cooler cooling system
Pneumatic system Summarize Taiwan AIRTAC pneumatic system
Air pressure 1Mpa
Air displacement 1.8M3/min
Electromagnetic valve AIRTAC
Cooling system Summarize Separate cooling system of mould, barrel and oil system
Cooling medium Water
Water flow 18t/h
Water pressure 0.3-0.6MPa

Accumulation Type Blow Molding Machine for 250L HDPE Chemical Drum

Accumulation Type Blow Molding Machine for 250L HDPE Chemical DrumAccumulation Type Blow Molding Machine for 250L HDPE Chemical DrumAccumulation Type Blow Molding Machine for 250L HDPE Chemical Drum
Accumulation Type Blow Molding Machine for 250L HDPE Chemical Drum

DAWSON MACHINERY & MOULD GROUP
***EXTRUSION BLOW MOLDING MACHINE EXPERT***
Our customers are all around the world.

Vietnam, Australia, Indonesia, Malaysia, Thailand, Sri Lanka, Kazakhstan, Russia, UAE, Saudi Arabia, Malta, Romania, Italy, India, Syria, Ethiopia, Egypt, Sudan, Tunisia, Algeria, Kenya, Nigeria, South Africa, Zimbabwe, Mexico, Guatemala, Ecuador, Colombia, Venezuela, Peru....

Accumulation Type Blow Molding Machine for 250L HDPE Chemical DrumAccumulation Type Blow Molding Machine for 250L HDPE Chemical Drum

● Co: Dawson Machinery & Mould Group Co.,Ltd
● Tel: 086-0512-58990369
● Mobile/WhatsApp/Wechat: 008615306246783

● Skype:guo.chenliang
● E-mail: jjeasy@dawson-plastic.com
jjeasyguo@hotmail.com
● Add: 18#610 BIGUIYUAN, YANGTANG ROAD, TANGQIAO TOWN, ZHANGJIAGANG CITY, JIANGSU PROVINCE, CHINA
