PET Plastic Candy Jar Drink Cup Shatterproof Bottle Container Blowing Molding machine
PET Plastic Candy Jar Drink Cup Shatterproof Bottle Container Blowing Molding machine
PET Plastic Candy Jar Drink Cup Shatterproof Bottle Container Blowing Molding machine
PET Plastic Candy Jar Drink Cup Shatterproof Bottle Container Blowing Molding machine
PET Plastic Candy Jar Drink Cup Shatterproof Bottle Container Blowing Molding machine
PET Plastic Candy Jar Drink Cup Shatterproof Bottle Container Blowing Molding machine
PET Plastic Candy Jar Drink Cup Shatterproof Bottle Container Blowing Molding machine
PET Plastic Candy Jar Drink Cup Shatterproof Bottle Container Blowing Molding machine
PET Plastic Candy Jar Drink Cup Shatterproof Bottle Container Blowing Molding machine
PET Plastic Candy Jar Drink Cup Shatterproof Bottle Container Blowing Molding machine
PET Plastic Candy Jar Drink Cup Shatterproof Bottle Container Blowing Molding machine
PET Plastic Candy Jar Drink Cup Shatterproof Bottle Container Blowing Molding machine
Specifications
Brand Name :
DAWSON
Model Number :
YC-2L
Certification :
CE
Place of Origin :
CHINE
MOQ :
1 piece
Price :
USD 4000-6000 piece
Payment Terms :
L/C, T/T
Supply Ability :
30 pieces per month
Delivery Time :
45-65 days
Packaging Details :
wooden
Blow Moulding Type: :
Stretch pet Blow Moulding
Voltage: :
380V 50Hz or as required
Automation: :
Automatic
Core Components: :
Motor, Gear, Engine, Gearbox
Warranty of core components: :
1 year
Samples provided: :
If required
Labor demand: :
1~2 operetor
Machinery Test Report: :
Provided
Weight (KG): :
Weight (KG):
Dimension(L*W*H): :
2.25*1.6*1.7 m
Description

PET Plastic Candy Jar Drink Cup Shatterproof Bottle Container Blowing Molding machine

DAWSON MACHINERY & MOULD GROUP
Our customers are all around the world.

Vietnam, Australia, Indonesia, Malaysia, Thailand, Sri Lanka, Kazakhstan, Russia, UAE, Saudi Arabia, Malta, Romania, Italy, India, Syria, Ethiopia, Egypt, Sudan, Tunisia, Algeria, Kenya, Nigeria, South Africa, Zimbabwe, Mexico, Guatemala, Ecuador, Colombia, Venezuela, Peru....

Semi-Auto PET Bottle Blow Moulding Machine

Our Semi Automatic Blow Molding Machine is used in the production of PET water bottles, hot filling bottles, carbonated beverage bottles, edible oil bottles, and pesticide bottles, gallon bottles...etc.

Main machine (blowert + oven) Model type YC-2L-2 YC-2L-4 YC-5L-1
Product Spec Max. product volume(L/cav) 2 2L 5L
Max. preform neck size(mm) 100 100 150
Max. product diameter(mm) 180 180 200
Max. product height (mm) 300 300 400
Cavities 2 4 1
Blow molding part Die force (KN) 100 100 120
Die stroke (mm) 270 270 320
Max. mould size(mm) 390*345 390*345 390*350
Mould thickness Adjustable Adjustable Adjustable
Mould spacing(mm) Adiustable Adjustable Adjustable
Max. pulling stroke(mm) 400 400 500
Operation pressure(Mpa) 0.8-1.0 0.8-1.0 0.8-1.0

Operation air pressure consumption

(1tr/min)

 200 200 350
Blow pressure(Mpa) 1.2-2.8 1.2-2.8 1.2-2.8
Blow air pressure consumption (1tr/min) 300 300 300
Output(pcs/h) 800 1200-1500(500ml bottle) 350
Machine size(LxWxH)(m) 1.46*0.58*1.8 1.46*0.58*1.8 1.56*0.7*1.9
Machine weight(KG) 650 650 700
Oven Temperature grade(rate) 8 8 8
Heating time(S) 90-200 90-200 90-200
Voltage(V) 220 or as your request 220 or as your request 220 or as your request
Frequency(HZ) 50/60 50/60 50/60
Total power(KW) 16 16 16
Oven Size (LxWxH) 1.35*0.55*1.15 1.35*0.55*1.15 1.45*0.65*1.15
Oven weight (KG) 300 300

330

PET Plastic Candy Jar Drink Cup Shatterproof Bottle Container Blowing Molding machine

PET Plastic Candy Jar Drink Cup Shatterproof Bottle Container Blowing Molding machine

DAWSON MACHINE

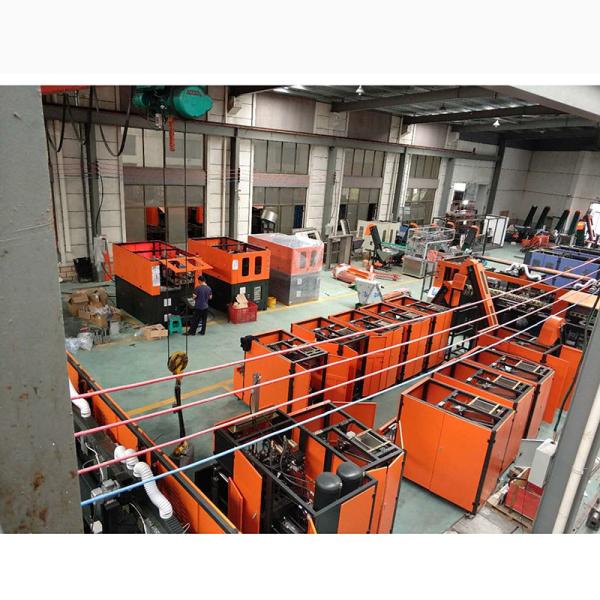

located in zhangjiagang city, have more than 18years' experience in the field of plastic machines, customers from more than 45 countries, we provide complete solution for your plastic industry business as well as all sorts of technical support & after-sales services!

PET Plastic Candy Jar Drink Cup Shatterproof Bottle Container Blowing Molding machine

PET Plastic Candy Jar Drink Cup Shatterproof Bottle Container Blowing Molding machine

Customer Feedback

Customer satisfaction is our eternal pursuit...

PET Plastic Candy Jar Drink Cup Shatterproof Bottle Container Blowing Molding machine

Our Services

PET Plastic Candy Jar Drink Cup Shatterproof Bottle Container Blowing Molding machine
