Colorful Customizable PE Sea Balls High Speed Extrusion Blow Molding Machine
Colorful Customizable PE Sea Balls High Speed Extrusion Blow Molding Machine
Colorful Customizable PE Sea Balls High Speed Extrusion Blow Molding Machine
Colorful Customizable PE Sea Balls High Speed Extrusion Blow Molding Machine
Colorful Customizable PE Sea Balls High Speed Extrusion Blow Molding Machine
Colorful Customizable PE Sea Balls High Speed Extrusion Blow Molding Machine
Colorful Customizable PE Sea Balls High Speed Extrusion Blow Molding Machine
Colorful Customizable PE Sea Balls High Speed Extrusion Blow Molding Machine
Colorful Customizable PE Sea Balls High Speed Extrusion Blow Molding Machine
Colorful Customizable PE Sea Balls High Speed Extrusion Blow Molding Machine
Colorful Customizable PE Sea Balls High Speed Extrusion Blow Molding Machine
Colorful Customizable PE Sea Balls High Speed Extrusion Blow Molding Machine
Specifications
Brand Name :
DAWSON
Model Number :
DSB80
Certification :
CE
Place of Origin :
China
MOQ :
1
Price :
USD 15,700 ~ 95,000 / set
Payment Terms :
L/C, T/T
Supply Ability :
20 set/month
Delivery Time :
5-8 work days
Packaging Details :
Standard Export Packing
Station :
One Station or Two Station
Auto-Deflashing :
Available
Material :
HDPE,PP,PVC,LDPE
Max Volume :
5Ｌ
Water Flow :
100L/Min
Water Pressure :
0.4-0.6MPa
Electromagnetic Valve :
Taiwan Airtac
Application :
Bottles,Jars,Cans,Gallons,Jerry Cans
Description

Colorful Customizable PE Sea Balls High Speed Extrusion Blow Molding Machine

DAWSON MACHINERY & MOULD GROUP
***EXTRUSION BLOW MOLDING MACHINE EXPERT***


Our customers are all around the world.

Vietnam, Australia, Indonesia, Malaysia, Thailand, Sri Lanka, Kazakhstan, Russia, UAE, Saudi Arabia, Malta, Romania, Italy, India, Syria, Ethiopia, Egypt, Sudan, Tunisia, Algeria, Kenya, Nigeria, South Africa, Zimbabwe, Mexico, Guatemala, Ecuador, Colombia, Venezuela, Peru....

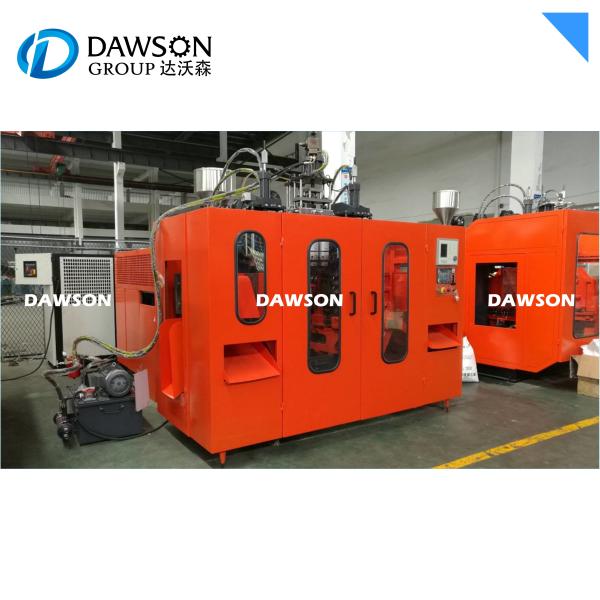

Automatic Extrusion Blow Molding Machine DSB80II

Product Description

Blow Molding Machine for making 50~80mm plastic balls
Blow Molding Machine for making plastic sea ball




Machine Model DSB75
Suitable for making 0-5L milk bottles,plastic oil bottles, detergent bottles,shampoo bottles,medical bottles,plastic balls,tube, plastic cans,containers,jars,tools,toys,etc.



Double Station - 3 die head



Nine Cavities Mould



Mould with auto-deflashing system

Product Parameters


Blow Molding Machine for making 50mm to 80mm Plastic Ball DSB80II

Technical Parameters

Product: Plastic bottle / ball
Power supply: 380/220v 50/60 Hz Tri-phase
Layer: Single layer
Parison control: MOOG 100 points

Basic parameters Suitable material PE.PP,PVC,PS,PETG,so on
Max volume 4 L
Output capacity as per samples
Size 4.4×3.4×3.6(M)
Weight 11.3T
system Specification Parameters Note
Plasticizion system
Summarize High efficient low power consumption plasticizion system,transducer control,self-protect function when started at low temperature
Reducer Hard finishing,High intension,Low noise reducer
Screw 1 ∮80mm,L/D ratio 25,130kg/h 38CrMoALA Cooling system available
Heating Zone 4 Aluminum Heater Automatic heating
Heating power 10KW/H
Cooling Fan Separate cooling system for heaters Automatic cooling
Electricystem
Summarize PLC+ touch screen(man-machine interface)standard extrusion blow molding machine controlling system(AUTO monitoring, fault-alarm, auto counting ,auxiliary function available)
Operate interface Touch screen, automatic self-diagnose alarm system
Parison control MOOG 100 points controller
Temperature control Automatic temperature control module
Movement control TECH-2/Mitsubishi, Chinese/English
Version
Electric protection Ampere overload, electric short circuit self-protection function
TOTAL rated power 67kw
Average power consumption 33 kw
Inverter Delta
Hydraulic system
Summarize Multiple function hydraulic integrated block Proportional control, high efficient
Oil pump motor 11kw motor (380V/220V,50/60HZ)
Oil pump double vane pump
Valves Imported oil pump valves and connections
YUKEN
Oil pipes Double layer overpressure resistant
System pressure LP 100 bar / HP 130 bar
Threads of hydraulic block use of screw joint GE(ISO 1179)
Cooling system Post cooling by cooling air and cooling water with Aluminum Mask
Pneumatic system Summarize Taiwan AIRTAC pneumatic system
Air pressure 0.6~0.8Mpa
Air displacement 2.2 M3/min
Electromagnetic valve Taiwan AIRTAC

1.Hydraulic system and valves connections from Japanese Yuken industry.



2.Computer control system (PLC) Japanese Mitisubishi PLC

Used to control all electrial components and touch screen



3.Auto-deflashing Unit
Remove extra parts of products automatically
Saving your labor cost



4.Electric Cabinet

All electric components
From famous world brand to ensure the quality and stability


5.

Touch screen
Chinese and English
(or other language)
All movement operated
By touch screen
Make the process full-automatic

Machine's color can be customized according to your needs.



High quality mould

In the process of plastic blow molding, the mold is a very important part. A good blow mould can make the product production more smoothly, and a good blowing mold can also make the finished product more flexible and beautiful.


We have our own mold production workshop, using high configuration equipment and mold engineers with 16 years of technical experience to customize blow molding mold for you.

- We use the best stainless steel S136H or Aluminium alloy 7075# as mould main material- Necking plate use JAPAN DC53 Heat
treatment to HRC62
- Double neck design available to change in future as a spare part necking
- All mould can be made auto-deflashing or manual deflashing as per customer requests
- Perfect mould cooling design to ensure the best moulding preformace
- Available to provide 2D & 3D product drawing for customers
- Available to send samples to customer for approval the product quality
- We had already made moulds for TOTAL,SHELL,GULF,BMW,YAMAHA,MOBIL,TOYOTA,MENGNIU, HYUNDAI,MENTHOLATUM,UNILEVER,LEE KUM KEE...
Company Profile

Our customers are all around the world.
Vietnam, Australia, Indonesia, Malaysia, Thailand, Sri Lanka, Kazakhstan, Russia, UAE, Saudi Arabia, Malta, Romania, Italy, India, Syria, Ethiopia, Egypt, Sudan, Tunisia, Algeria, Kenya, Nigeria, South Africa, Zimbabwe, Mexico, Guatemala, Ecuador, Colombia, Venezuela, Peru....
We have our own service team in
Saudi Arabia, Colombia, Panama, South Africa ...
DAWSON MACHINE & MOULD GROUP


DAWSON MACHINE & MOULD GROUP
located in Zhangjiagang city, have more than 18 years' experience in the field of plastic machinery, blow molding machine, injection molding machine, PET blow molding machine, injection blow molding machine, during the past 18 years, we always force our energy into new areas of plastic machinery, plastic packaging machinery, to update the technology, to learn advanced experience, to confirm new theory and new design, we are forming a unique competitive advantage of our owns.
The machines from our company carry good quality and effective after-sales service, upon the market, customers from more than 45 countries, we provide complete solution for your plastic industry business, as well as all sorts of technical support & after-sale services!

DAWSON will be your reliable friend in China, and we will always do our best to give you max support!

DAWSON will be your reliable friend in China, and we will always do our best to give you max support!

Customer Feedback

Colorful Customizable PE Sea Balls High Speed Extrusion Blow Molding Machine

After Sales Service

Colorful Customizable PE Sea Balls High Speed Extrusion Blow Molding Machine

Colorful Customizable PE Sea Balls High Speed Extrusion Blow Molding Machine

FAQ

Q: Can we visit your factory?

Sure. We located in Zhangjiagang city which is very near Shanghai. For overseas customers, you can fly to Shanghai Pudong
International Airport. We can
pick you up in the Airport. (or Hongqiao International Airport. ) We also provide visit online by video.

Q: How can we get the exact price of plastic machine?

Contact us with the products size, shape, annual quantity and photo if possible. We can recommend our machine models with
quotation.

Q: Do you provide any spare parts with machine?

Yes, we offer all necessary spare parts before shipment.(contact us for packing list )

Q: How about your after-sale service ?

We offer manual instruction and engineer training before loading,after shipment we provide 24 HRS online support, video technical
support or field installation assist.

Q: What is the lead time?

For customized machine, it takes about 45-50 days after deposit. For stock machine, fast shipment. ( The actual production cycle will vary according to the degree of customization.)

Q: What is the warranty period for your machine ?

12 months warranty for components and technical support .

Q: Do you provide custom machines?

Most of our machines are customized. Our goal is efficiency and stable performance. We design the machines according to customers
products to meet customer' needs.

Q: How can we install the machine when it arrives?

We can send experienced technicians to customer's country for guiding the installation and commission the machine, also train the
customer's employees.

Q: What's DAWSON's advantage?

DAWSON provide customers with turnkey projects. Including plant design, plastic machine and mold installation, debugging, also we
can source the auxiliary equipments for customers. We can ship the full set of machines after testing in our factory. It will save
a lot of cost and time.

DAWSON will be your reliable friend in China, and we will always do our best to give you max support!
