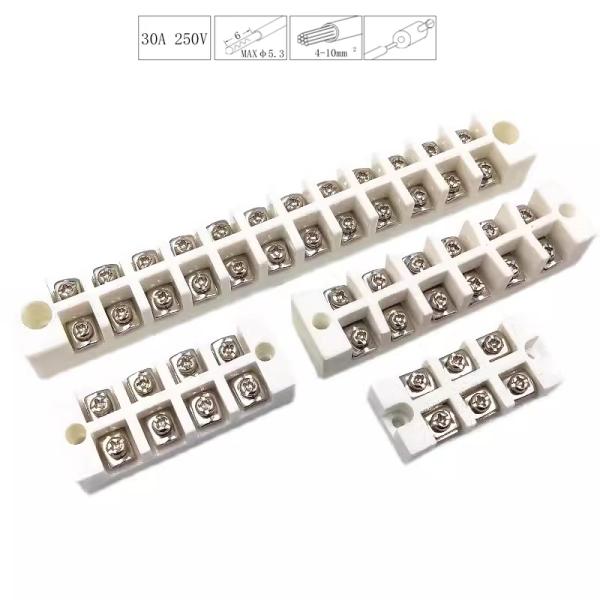

10mm / 0.394 Ceramic Barrier Screw Terminal Blocks 800℃ High Temperature Resistance 30 Amps 380 Volts
10mm / 0.394 Ceramic Barrier Screw Terminal Blocks 800℃ High Temperature Resistance 30 Amps 380 Volts
10mm / 0.394 Ceramic Barrier Screw Terminal Blocks 800℃ High Temperature Resistance 30 Amps 380 Volts
10mm / 0.394 Ceramic Barrier Screw Terminal Blocks 800℃ High Temperature Resistance 30 Amps 380 Volts
10mm / 0.394 Ceramic Barrier Screw Terminal Blocks 800℃ High Temperature Resistance 30 Amps 380 Volts
10mm / 0.394 Ceramic Barrier Screw Terminal Blocks 800℃ High Temperature Resistance 30 Amps 380 Volts
10mm / 0.394 Ceramic Barrier Screw Terminal Blocks 800℃ High Temperature Resistance 30 Amps 380 Volts
10mm / 0.394 Ceramic Barrier Screw Terminal Blocks 800℃ High Temperature Resistance 30 Amps 380 Volts
10mm / 0.394 Ceramic Barrier Screw Terminal Blocks 800℃ High Temperature Resistance 30 Amps 380 Volts
10mm / 0.394 Ceramic Barrier Screw Terminal Blocks 800℃ High Temperature Resistance 30 Amps 380 Volts
10mm / 0.394 Ceramic Barrier Screw Terminal Blocks 800℃ High Temperature Resistance 30 Amps 380 Volts
10mm / 0.394 Ceramic Barrier Screw Terminal Blocks 800℃ High Temperature Resistance 30 Amps 380 Volts
10mm / 0.394 Ceramic Barrier Screw Terminal Blocks 800℃ High Temperature Resistance 30 Amps 380 Volts
10mm / 0.394 Ceramic Barrier Screw Terminal Blocks 800℃ High Temperature Resistance 30 Amps 380 Volts
10mm / 0.394 Ceramic Barrier Screw Terminal Blocks 800℃ High Temperature Resistance 30 Amps 380 Volts
10mm / 0.394 Ceramic Barrier Screw Terminal Blocks 800℃ High Temperature Resistance 30 Amps 380 Volts
10mm / 0.394 Ceramic Barrier Screw Terminal Blocks 800℃ High Temperature Resistance 30 Amps 380 Volts
10mm / 0.394 Ceramic Barrier Screw Terminal Blocks 800℃ High Temperature Resistance 30 Amps 380 Volts
Specifications
Place of Origin :
Guang Dong
Brand Name :
Jetacon
Certification :
UL, CE
Model Number :
CRAMIC-1000
MOQ :
50 Pieces
Price :
Get latest price
Packaging Details :
Standard Export Carton
Delivery Time :
7-20 working days
Payment Terms :
T/T, L/C, Paypal, Payoneer
Supply Ability :
1KK poles monthly
Number of Contacts :
11 - 20
Conductor Size :
11 - 20 AWG
Type :
Screw
Description
Certification: CE, Rohs
Poles: 2 to 12 poles
Color: White
Torque: 0.2Nm
Strip length: 5-6mm
Rated Voltage / Current: 380V / 30A, 500V / 20A
Insulation resistance: 5000MΩ / 1000V
Contact resistance: 20mΩ
Withstanding voltage: 2000V / 1min
Wire range: 22~12AWG
Insulation, high and low temperature resistance, and good shock resistance performance;
It will not deform due to heat during use, and the ceramic housing will not shrink or crack under significant temperature changes;
After closely integrating with the circuit, it can achieve dust-proof and waterproof effects.
10mm / 0.394
