9.5mm / 0.375 Barrier Screw Terminal Blocks Side Pin Mounting
9.5mm / 0.375 Barrier Screw Terminal Blocks Side Pin Mounting
9.5mm / 0.375 Barrier Screw Terminal Blocks Side Pin Mounting
9.5mm / 0.375 Barrier Screw Terminal Blocks Side Pin Mounting
9.5mm / 0.375 Barrier Screw Terminal Blocks Side Pin Mounting
9.5mm / 0.375 Barrier Screw Terminal Blocks Side Pin Mounting
9.5mm / 0.375 Barrier Screw Terminal Blocks Side Pin Mounting
9.5mm / 0.375 Barrier Screw Terminal Blocks Side Pin Mounting
9.5mm / 0.375 Barrier Screw Terminal Blocks Side Pin Mounting
9.5mm / 0.375 Barrier Screw Terminal Blocks Side Pin Mounting
9.5mm / 0.375 Barrier Screw Terminal Blocks Side Pin Mounting
9.5mm / 0.375 Barrier Screw Terminal Blocks Side Pin Mounting
9.5mm / 0.375 Barrier Screw Terminal Blocks Side Pin Mounting
9.5mm / 0.375 Barrier Screw Terminal Blocks Side Pin Mounting
9.5mm / 0.375 Barrier Screw Terminal Blocks Side Pin Mounting
9.5mm / 0.375 Barrier Screw Terminal Blocks Side Pin Mounting
9.5mm / 0.375 Barrier Screw Terminal Blocks Side Pin Mounting
9.5mm / 0.375 Barrier Screw Terminal Blocks Side Pin Mounting
9.5mm / 0.375 Barrier Screw Terminal Blocks Side Pin Mounting
9.5mm / 0.375 Barrier Screw Terminal Blocks Side Pin Mounting
9.5mm / 0.375 Barrier Screw Terminal Blocks Side Pin Mounting
9.5mm / 0.375 Barrier Screw Terminal Blocks Side Pin Mounting
Specifications
Place of Origin :
Guang Dong
Brand Name :
Jetacon
Certification :
UL, CE
Model Number :
EC-9500-01
MOQ :
50 pieces
Price :
Get latest price
Packaging Details :
Standard Export Carton
Delivery Time :
7-20 working days
Payment Terms :
T/T, L/C, Paypal, Payoneer
Supply Ability :
1KK poles monthly
Number of Contacts :
11 - 20
Conductor Size :
11 - 20 AWG
Type :
Screw
Description
Specifications:
Condition: Brand New
Certification: CE, Rohs

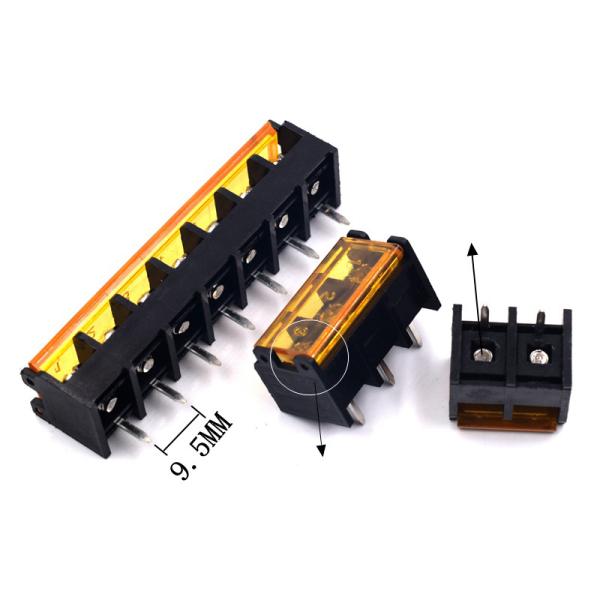

Pitch:9.5mm
Poles: 2 to 30 poles
Color: black
Torque: 0.2Nm
Strip length: 5-6mm
Rated voltage: 300V
Rated current: 30A
Insulation resistance: 5000MΩ/1000V
Contact resistance: 20mΩ
Withstanding voltage: 2000V/1min
Wire range: 22~12AWG
9.5mm / 0.375
