Specifications
Brand Name :
OEM
Model Number :
Mini-Load Cell
Certification :
CE
Place of Origin :
China Mainland
MOQ :
1 Pieces
Price :
US $99.99
Payment Terms :
T/T, L/C, Paypal, Payoneer
Supply Ability :
100 /Pieces per Day
Delivery Time :
7-15 days
Packaging Details :
Standard Export Carton
Material :
Stainless Steel
Waterproof :
IP65
Application :
Force Sensor
Zero output :
± 0.2 mV / V
Capacity :
5N 10N 20N 50N 100N 200N 300N 500N 1000N 2000N
Description

Features & Applications:

Tension and compression load cell with metal foil strain gauge technology and over load protection, made of stainless steel

Mainly used for pull and push dynamometer, hopper scale and industrial measuring systems.
Capacity : 5N, 10N, 20N, 50N, 100N, 200N, 300N,500N, 1000N, 2000N

Parameters:

Capacity 0-5N~2000N Material Stainless Steel
Rated output 1.5 ±10% mV/V Output Impedance 350±3Ω
Non-linearity 0.05 % F.S. Insulation >5000MΩ/10VDC
Hysteresis 0.05 % F.S. Recommended Excitation 2.5-5V
Repeatability 0.05 % F.S. Excitation max 10V
Creep(30min) 0.05 % F.S. Compensated Temp Range -10~60℃
Temp Effect On Output 0.1 % F.S./ 10℃ Operating Temp Range -20~80℃
Temp Effect On Zero 0.1 % F.S./ 10℃ Safe Load 1.2
Protection Class IP 65 Ultimate Load Limit 1.5
Input Impedance 350±15Ω Cable Length ∅2-3 x 3m
Wire Connection

Ex +: Red; Ex -Black; Sig +: Green; Sig -: White

(Pressure is positive, pulling is negative);

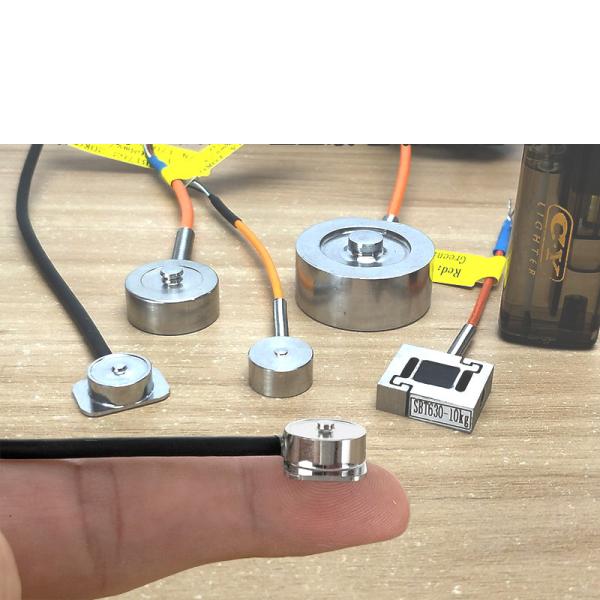

Photos:

Small Stainless Steel Mini Micro Button Load Cell Miniature Compression Tension Thin Film Sensor 5N 10N 100N 200N
