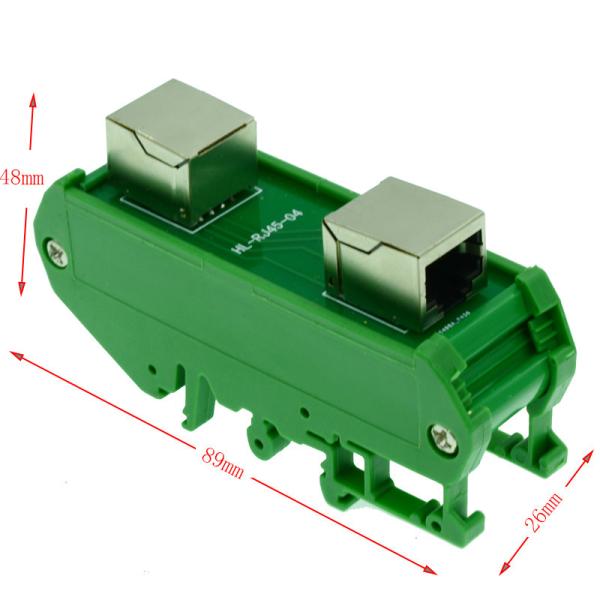

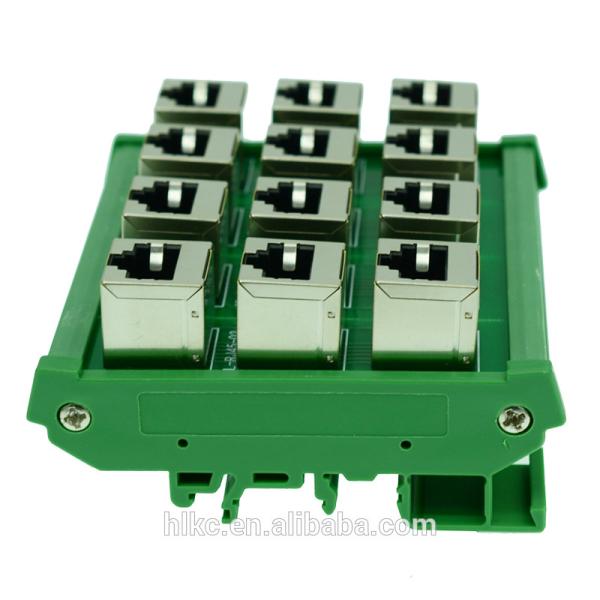

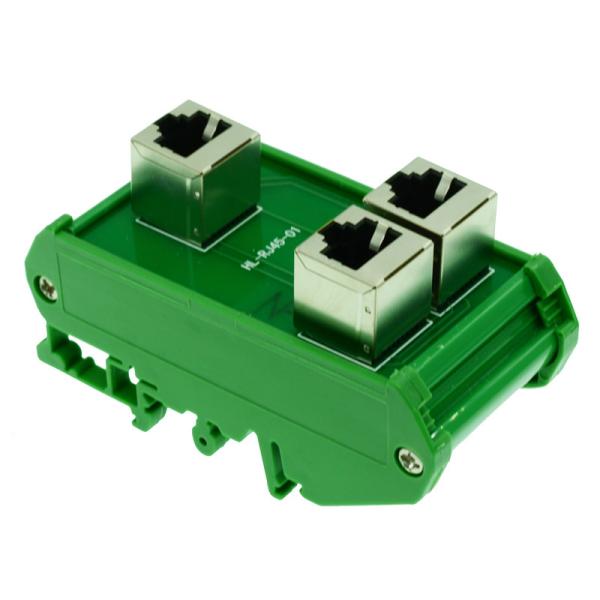

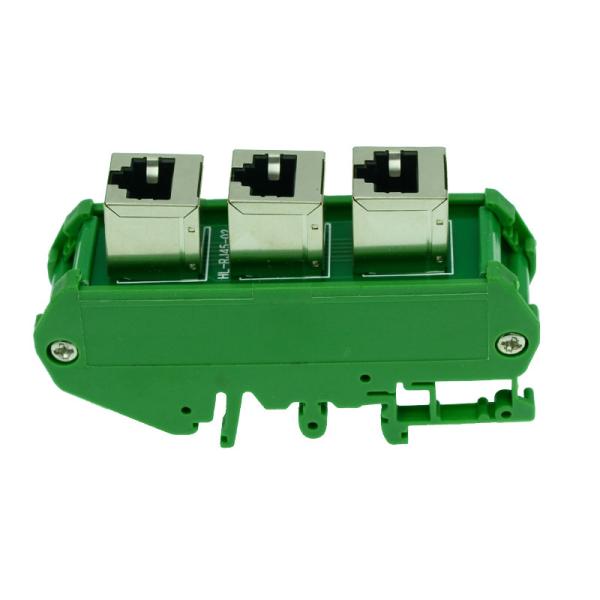

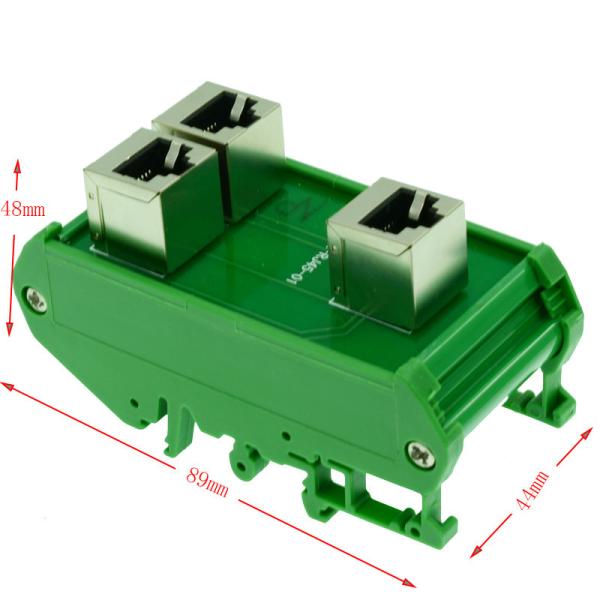

RJ45 8P8C Female Jack Extension Cable Adapter Splitter Buss Board Din Rail
RJ45 8P8C Female Jack Extension Cable Adapter Splitter Buss Board Din Rail
RJ45 8P8C Female Jack Extension Cable Adapter Splitter Buss Board Din Rail
RJ45 8P8C Female Jack Extension Cable Adapter Splitter Buss Board Din Rail
RJ45 8P8C Female Jack Extension Cable Adapter Splitter Buss Board Din Rail
RJ45 8P8C Female Jack Extension Cable Adapter Splitter Buss Board Din Rail
RJ45 8P8C Female Jack Extension Cable Adapter Splitter Buss Board Din Rail
RJ45 8P8C Female Jack Extension Cable Adapter Splitter Buss Board Din Rail
RJ45 8P8C Female Jack Extension Cable Adapter Splitter Buss Board Din Rail
RJ45 8P8C Female Jack Extension Cable Adapter Splitter Buss Board Din Rail
RJ45 8P8C Female Jack Extension Cable Adapter Splitter Buss Board Din Rail
RJ45 8P8C Female Jack Extension Cable Adapter Splitter Buss Board Din Rail
RJ45 8P8C Female Jack Extension Cable Adapter Splitter Buss Board Din Rail
RJ45 8P8C Female Jack Extension Cable Adapter Splitter Buss Board Din Rail
RJ45 8P8C Female Jack Extension Cable Adapter Splitter Buss Board Din Rail
RJ45 8P8C Female Jack Extension Cable Adapter Splitter Buss Board Din Rail
RJ45 8P8C Female Jack Extension Cable Adapter Splitter Buss Board Din Rail
RJ45 8P8C Female Jack Extension Cable Adapter Splitter Buss Board Din Rail
Specifications
Brand Name :
Jetacon
Model Number :
RJ45-XPort-Splitter
Certification :
UL, CE
Place of Origin :
Guang Dong
MOQ :
10 Pieces
Price :
Get latest price
Payment Terms :
T/T, L/C, Paypal, Payoneer
Supply Ability :
1KK poles monthly
Delivery Time :
7-20 working days
Packaging Details :
Standard Export Carton
Connector :
CAT6 RJ45 8P8C
Application :
Automation
Type :
Vetical or Horizontal
Description

Product types:

1 in 1 out ( vertical or horizontontal )
1 in 2 out ( vertical or horizontontal )
3 ways, T types. 12 ways ...
FR-4 fiber glass PCB, dual copper layers.
Rated voltage: 100V.
Rated current: 0.5A / per pin.
Operating Temperature: -20ºC to 50ºC
Terminal block specifications:
Wire range: 26AWG - 16AWG.
Strip length: 5mm.
Screws: M2, steel, Cr3+ Zn plated.
Pin header and Cage: Brass
Din rail mountable - For EN 50 022/035/045 (TS 35/32/15) rails
Din mount case can be taken apart for panel mount use
Weight:45g
Note: some times the item is from customized products, the actual product will have some minor difference from the photo, thanks.
RJ45 8P8C Female Jack Extension Cable Adapter Splitter Buss Board Din Rail
