Specifications
Brand Name :
Jetacon
Model Number :
Encoder 1- 2
Certification :
UL, CE
Place of Origin :
Guang Dong
MOQ :
5 pieces
Price :
Get latest price
Payment Terms :
T/T, L/C, Paypal, Payoneer
Supply Ability :
1KK poles monthly
Delivery Time :
7-20 working days
Packaging Details :
Standard Export Carton
Color :
Green
Size :
52mm x 85mm x 53mm
Input :
A/A B/B Z/Z X1
Output :
A/B B/B Z/Z X2 differential signal
Description

Introduction:

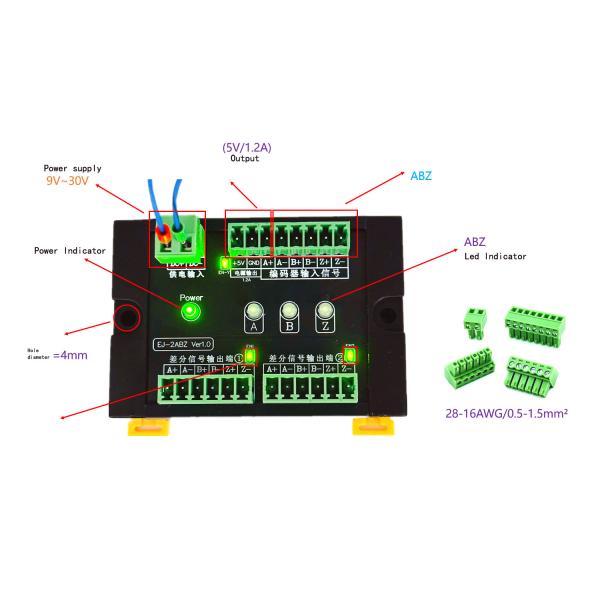

1 encoder input programmable with format A, /A, B, /B, Z, /Z [TTL / RS422]
2 pulse output with format A, /A, B, /B, Z, /Z with differential signal output
Power supply optionally 9-24 VDC
Frequency Range: 0 - 3MHz
Wire Gauge Accepted: 26 -16 AWG
Mounting Options: DIN 35
Operating Temperature: 0°C to 50°C
Storage Temperature: -20°C to 70°C
Operational Humidity: 98% non-condensing
Product size:62mm Width x 87mm Length x 46mm Height

Applications:

Package Included:
1 * 2-Way Pulse Distributor
Note: some times the item is from customized products, the actual product will have some minor difference from the photo, thanks.
