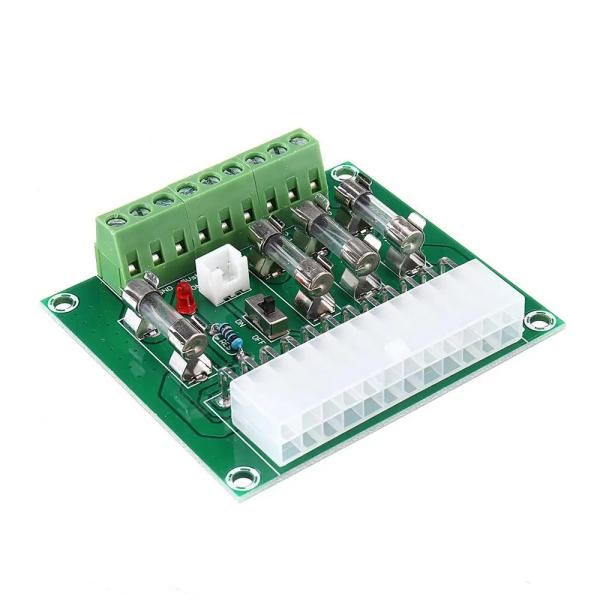

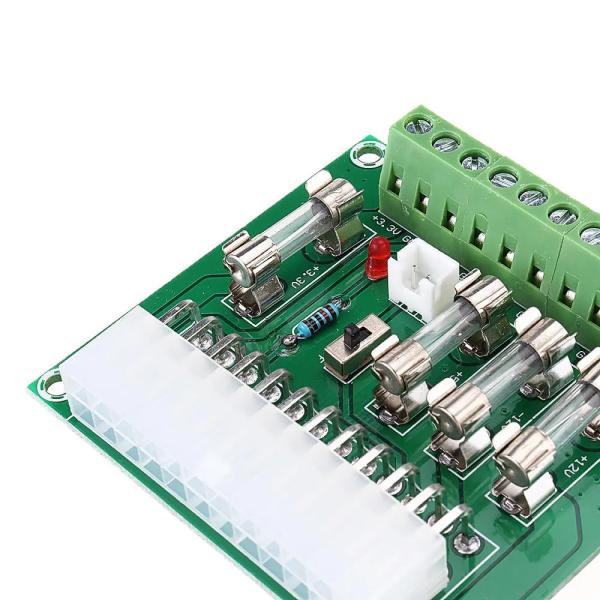

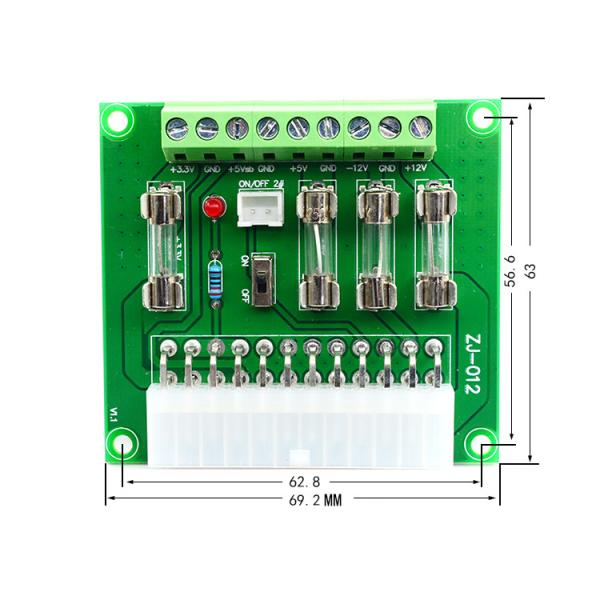

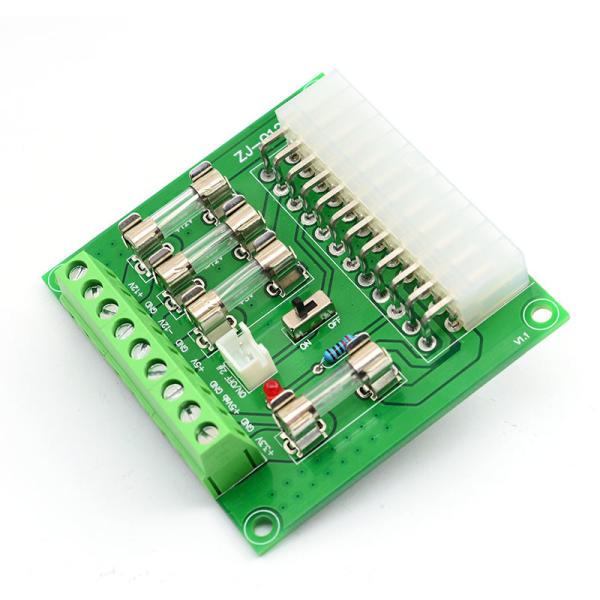

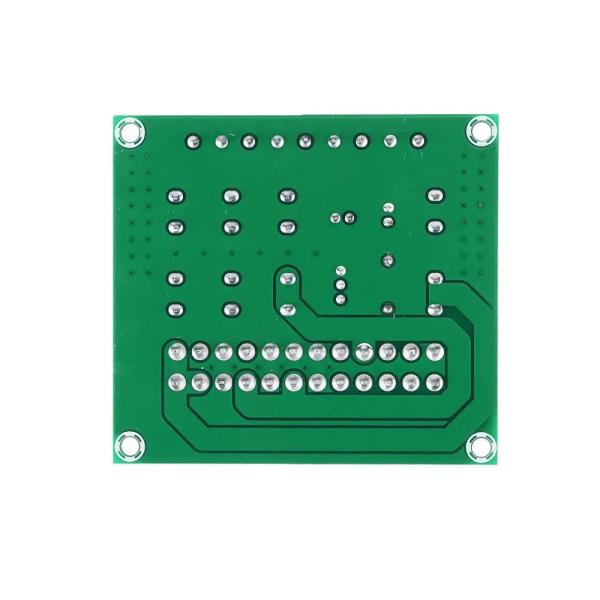

Computer ATX DC Power Supply Distribution Terminal Blocks Breakout Board +3.3V +5V -12V +12V +5V
Computer ATX DC Power Supply Distribution Terminal Blocks Breakout Board +3.3V +5V -12V +12V +5V
Computer ATX DC Power Supply Distribution Terminal Blocks Breakout Board +3.3V +5V -12V +12V +5V
Computer ATX DC Power Supply Distribution Terminal Blocks Breakout Board +3.3V +5V -12V +12V +5V
Computer ATX DC Power Supply Distribution Terminal Blocks Breakout Board +3.3V +5V -12V +12V +5V
Computer ATX DC Power Supply Distribution Terminal Blocks Breakout Board +3.3V +5V -12V +12V +5V
Computer ATX DC Power Supply Distribution Terminal Blocks Breakout Board +3.3V +5V -12V +12V +5V
Computer ATX DC Power Supply Distribution Terminal Blocks Breakout Board +3.3V +5V -12V +12V +5V
Computer ATX DC Power Supply Distribution Terminal Blocks Breakout Board +3.3V +5V -12V +12V +5V
Computer ATX DC Power Supply Distribution Terminal Blocks Breakout Board +3.3V +5V -12V +12V +5V
Computer ATX DC Power Supply Distribution Terminal Blocks Breakout Board +3.3V +5V -12V +12V +5V
Computer ATX DC Power Supply Distribution Terminal Blocks Breakout Board +3.3V +5V -12V +12V +5V
Computer ATX DC Power Supply Distribution Terminal Blocks Breakout Board +3.3V +5V -12V +12V +5V
Computer ATX DC Power Supply Distribution Terminal Blocks Breakout Board +3.3V +5V -12V +12V +5V
Specifications
Brand Name :
Jetacon
Model Number :
ZJ-024_ATX
Certification :
CE
Place of Origin :
Guang Dong
MOQ :
2 pieces
Price :
US $6.99 / Piece
Payment Terms :
T/T, L/C, Paypal, Payoneer
Supply Ability :
1000ea monthly
Delivery Time :
7-20 working days
Packaging Details :
Standard Export Carton
Number of Contacts :
20 - 24
Conductor Size :
11 - 20 AWG
Type :
Screw
Description

Feature:

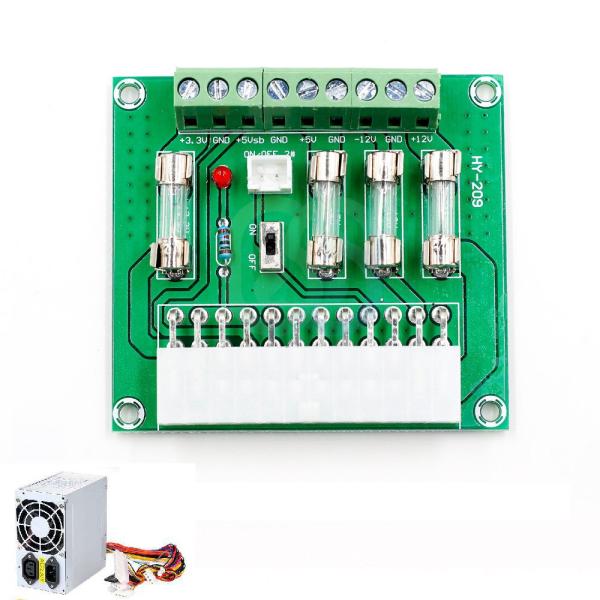

Output voltage: +3.3V +5V -12V +12V +5V
Control mode: toggle switch or second switch.
The second switch: can be used for front panel, two pins shorted to open the power.
Supported voltage: +5vsb is the standby power supply, the power supply is available, can be used for standby control circuit.

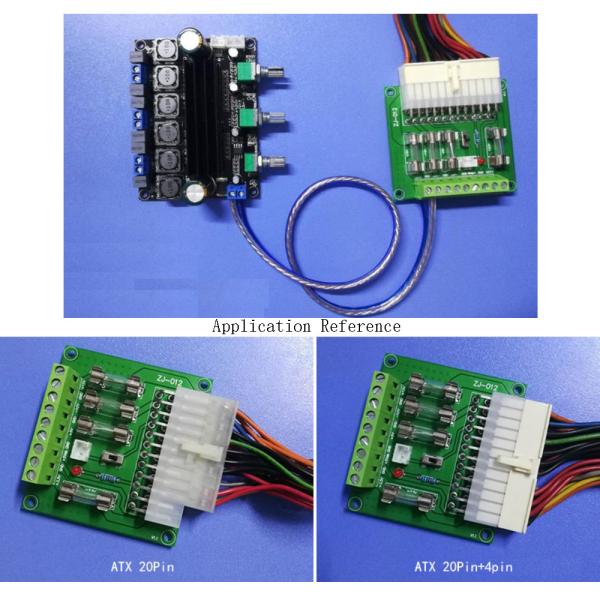

Application: Applicable to some of our power amplifier boards, other electronic equipment, etc.

24-pins Standard ATX Connector, support 20 / 20+4 / 24 pins wire header.

Stand-By and Power-ON indicator LEDs.
Having latching button switch to control power ON/OFF.
High quality 24Amp(per position) screw terminal blocks.

Terminal Blocks :
Pitch 5.0mm/0.197"
Wire range 26AWG ~ 12AWG / 2.5mm2
Rated voltage 400V, rated current 24Amp.
Strip length 7mm.
Screws - M3,steel,Cr3+ Zn plated.
Pin header and Cage - Brass.


Note: some times the item is from customized products, the actual productwill have some minor difference from the photo, thanks.
