Specifications
Brand Name :
OEM
Model Number :
Mini-Load Cell
Certification :
CE
Place of Origin :
China Mainland
MOQ :
1 Pieces
Price :
US $99.99
Payment Terms :
T/T, L/C, Paypal, Payoneer
Supply Ability :
100 /Pieces per Day
Delivery Time :
7-15 days
Packaging Details :
Standard Export Carton
Material :
Stainless Steel
Waterproof :
IP65
Application :
Force Sensor
Zero output :
± 0.2 mV / V
Capacity :
3kg 10kg 20kg 50kg 100kg 200kg 300kg 500kg 1000kg 2000kg
Description

Features & Applications:

Tension and compression load cell with metal foil strain gauge technology and over load protection, made of stainless steel

Mainly used for pull and push dynamometer, hopper scale and industrial measuring systems.
Capacity : 3kg 5kg, 10kg, 20kg, 50kg, 100kg, 200kg, 300kg,500kg, 1000kg, 2000kg

Cable Length: 3 meters long typically

Parameters:

Capacity 0 - 3kg ~ 2000kg Material Stainless Steel
Rated output 1.5 ±10% mV/V Output Impedance 350±3Ω
Non-linearity 0.05 % F.S. Insulation >5000MΩ/10VDC
Hysteresis 0.05 % F.S. Recommended Excitation 2.5-5V
Repeatability 0.05 % F.S. Excitation max 10V
Creep(30min) 0.05 % F.S. Compensated Temp Range -10~60℃
Temp Effect On Output 0.1 % F.S./ 10℃ Operating Temp Range -20~80℃
Temp Effect On Zero 0.1 % F.S./ 10℃ Safe Load 1.2
Protection Class IP 65 Ultimate Load Limit 1.5
Input Impedance 350±15Ω Cable Length ∅2-3 x 3m
Wire Connection

Ex +: Red; Ex -Black; Sig +: Green; Sig -: White

(Pressure is positive, pulling is negative);

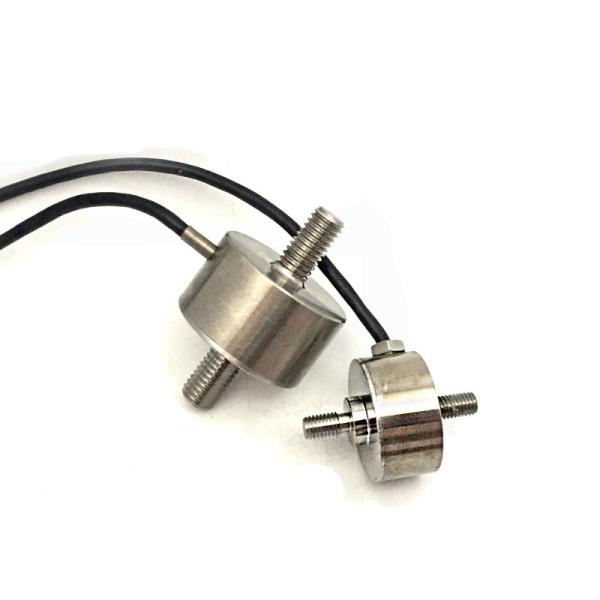

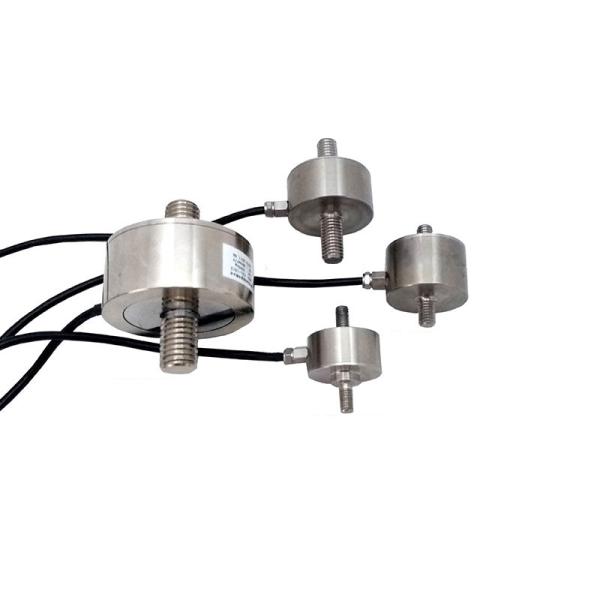

Photos:

Small Mini Micro Load Cell Miniature Compression Tension Force Sensor Transducers 3kg 5kg 100kg 2000kg
