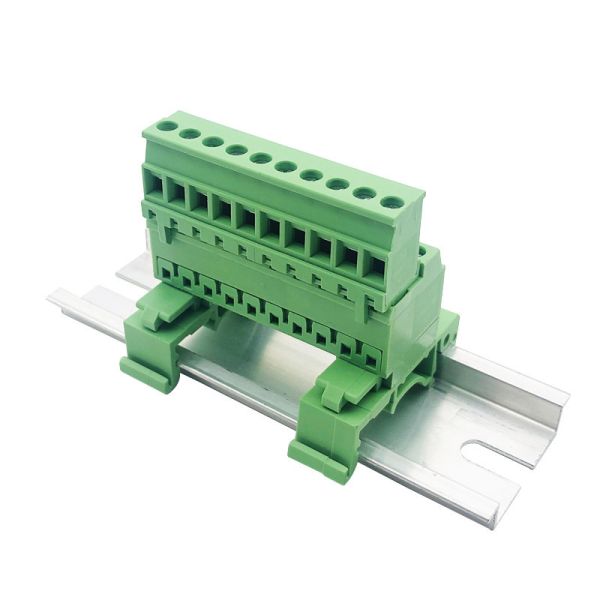

5.08mm / 0.2 Pitch Pluggable Screw Terminal Blocks Din Rail Mounting
5.08mm / 0.2 Pitch Pluggable Screw Terminal Blocks Din Rail Mounting
5.08mm / 0.2 Pitch Pluggable Screw Terminal Blocks Din Rail Mounting
5.08mm / 0.2 Pitch Pluggable Screw Terminal Blocks Din Rail Mounting
5.08mm / 0.2 Pitch Pluggable Screw Terminal Blocks Din Rail Mounting
5.08mm / 0.2 Pitch Pluggable Screw Terminal Blocks Din Rail Mounting
5.08mm / 0.2 Pitch Pluggable Screw Terminal Blocks Din Rail Mounting
5.08mm / 0.2 Pitch Pluggable Screw Terminal Blocks Din Rail Mounting
5.08mm / 0.2 Pitch Pluggable Screw Terminal Blocks Din Rail Mounting
5.08mm / 0.2 Pitch Pluggable Screw Terminal Blocks Din Rail Mounting
5.08mm / 0.2 Pitch Pluggable Screw Terminal Blocks Din Rail Mounting
5.08mm / 0.2 Pitch Pluggable Screw Terminal Blocks Din Rail Mounting
5.08mm / 0.2 Pitch Pluggable Screw Terminal Blocks Din Rail Mounting
5.08mm / 0.2 Pitch Pluggable Screw Terminal Blocks Din Rail Mounting
Specifications
Place of Origin :
Guang Dong
Brand Name :
Jetacon
Certification :
UL, CE
Model Number :
EDG2-08-5.08
MOQ :
50 pieces
Price :
Get latest price
Packaging Details :
Standard Export Carton
Delivery Time :
7-20 working days
Payment Terms :
T/T, L/C, Paypal, Payoneer
Supply Ability :
1KK poles monthly
Rated Voltage :
300V
Rated Current :
10A
Type :
Plug with Socket
Grounding :
Non-Grounding
Application :
Industrial
Description
Specifications:
Condition: Brand New
Certification: CE, Rohs
Pitch: 5.08mm
Poles: 2 Pins to 20 pins
Color:Green
Torque: 0.2Nm
Strip length: 5-6mm
Rated voltage: 300V
Rated current: 10A
Insulation resistance: 5000MΩ/1000V
Contact resistance: 20mΩ
Withstanding voltage: 2000V/1min
Wire range: 28~16AWG
Din Rail: TS35 international Standard
5.08mm / 0.2
5.08mm / 0.2
Note:
The terminal blocks are in stock from 2 poles to 20 poles
