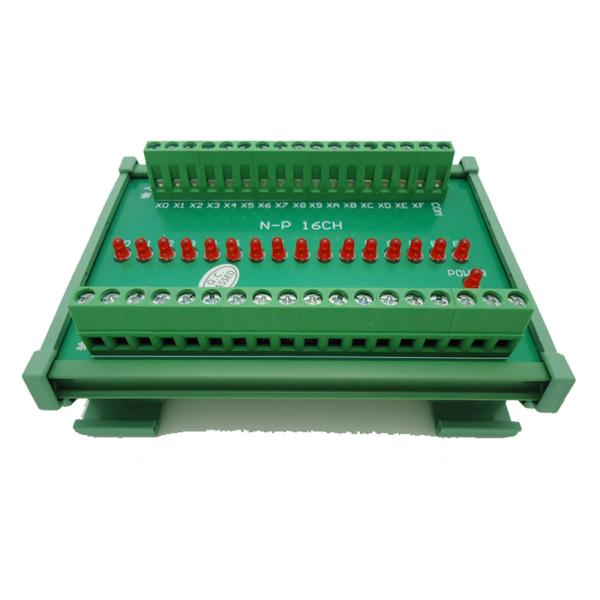

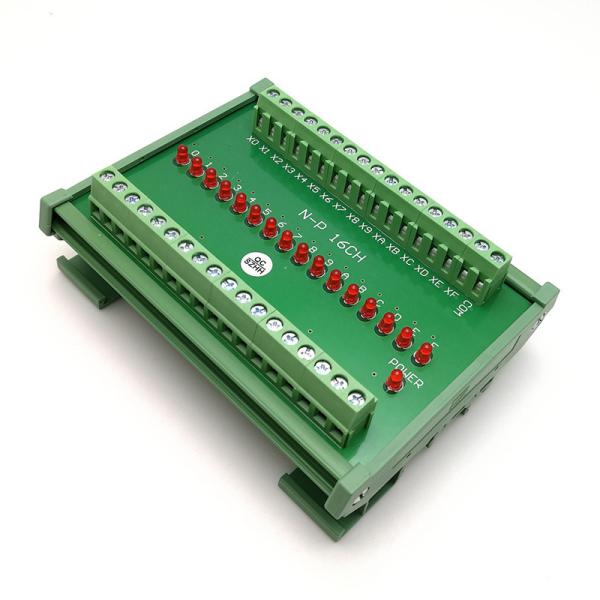

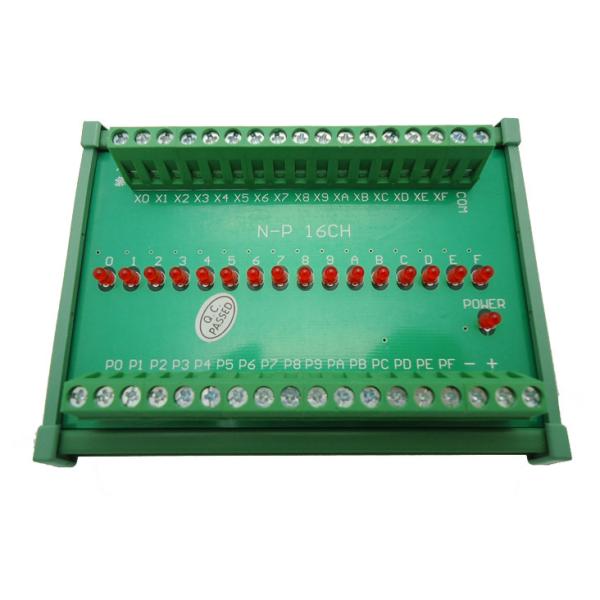

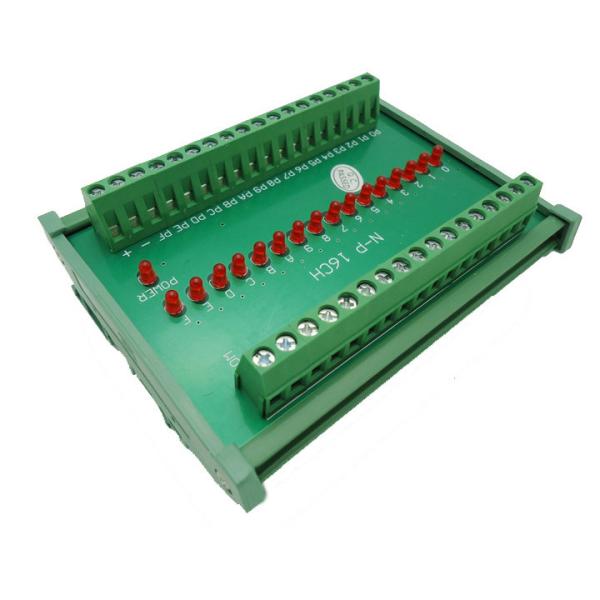

PLC Signal Conversion Module Level Polarity Converter NPN to PNP 16 Ways
PLC Signal Conversion Module Level Polarity Converter NPN to PNP 16 Ways
PLC Signal Conversion Module Level Polarity Converter NPN to PNP 16 Ways
PLC Signal Conversion Module Level Polarity Converter NPN to PNP 16 Ways
PLC Signal Conversion Module Level Polarity Converter NPN to PNP 16 Ways
PLC Signal Conversion Module Level Polarity Converter NPN to PNP 16 Ways
PLC Signal Conversion Module Level Polarity Converter NPN to PNP 16 Ways
PLC Signal Conversion Module Level Polarity Converter NPN to PNP 16 Ways
PLC Signal Conversion Module Level Polarity Converter NPN to PNP 16 Ways
PLC Signal Conversion Module Level Polarity Converter NPN to PNP 16 Ways
Specifications
Place of Origin :
Guang Dong
Brand Name :
Jetacon
Certification :
UL, CE
Model Number :
N-P 16CH 24V
MOQ :
5 pieces
Price :
Get latest price
Packaging Details :
Standard Export Carton
Delivery Time :
7-20 working days
Payment Terms :
T/T, L/C, Paypal, Payoneer
Supply Ability :
1KK poles monthly
Color :
Green
Ways :
16 ways
Rate :
10Khz
Current :
500mA Maxium each channel
Description
Item Number: N-P 16CH or P-N 16CH
NPN to PNP ( or PNP to NPN ) signals level converters, Opto-couplers isolation
LED indicator for output ON
Supply Voltage : 24 VDC
Output Voltage : 24 VDC
Current consumption each channel: 500mA maxium
Standard DIN rail mounting ( 35 mm)
Temperature range 10 to 55 C
high speed counting up to 10Khz
Product size : 113mm L x 87mm W x 43mm H
Weight: 120g
PLC Signal Conversion Module Level Polarity Converter NPN to PNP 16 Ways
PLC Signal Conversion Module Level Polarity Converter NPN to PNP 16 Ways
---
Note: Item number: P-N 16CH, PNP to NPN 16 channes Converter is also available
PLC Signal Conversion Module Level Polarity Converter NPN to PNP 16 Ways
