Specifications
Brand Name :
JETEX-LLOYD'S
Model Number :
HRDX
Certification :
Utility Model Patent Certificate
Place of Origin :
Guangzhou, Guangdong, China
MOQ :
One
Payment Terms :
Bank transfer
Supply Ability :
500 units per month
Delivery Time :
25 work days
Packaging Details :
Specialized packaging film
Price :
negotiable
Air volume :
3000m³/h-50000m³/h
Panel material :
Double-layer insulation cotton board, color steel plate, galvanized steel plate, stainless steel plate
Function :
Efficient and energy-saving
Name :
HVAC Heat Recovery Unit
Description

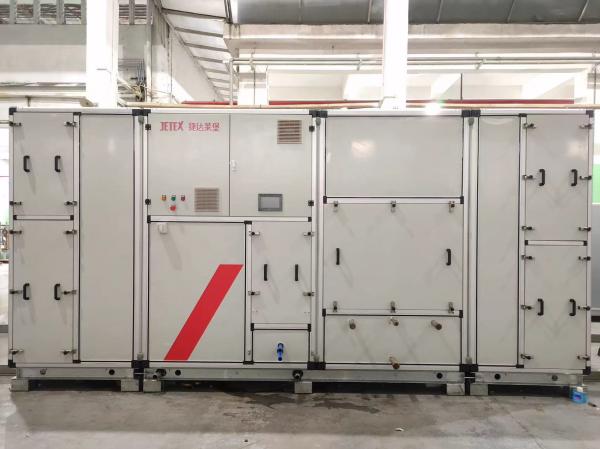

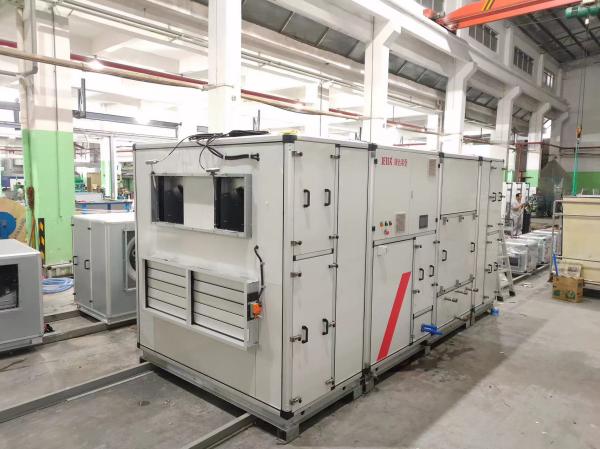

Evaporative Heat Recovery Air Conditioning Unit

The unit is specially designed for different fresh air areas. The air volume covers 3000-50000m³/h. It adopts exclusive heat recovery technology and is especially suitable for areas with large air volume and long transition seasons to achieve significant energy saving effects. The unit integrates refrigeration, heating, humidification, dehumidification and purification and sterilization functions, and supports precision and remote control.
The unit adopts three-stage heat recovery technology: high-efficiency two-way hot and wet filler full heat recovery, refrigerant heat pump direct expansion full heat recovery and condensate water replenishment technology. The full heat recovery efficiency is as high as more than 70%. The unique "airflow variable air channel" technology realizes multi-working mode operation, including cooling, cooling and dehumidification, heating heat recovery and non-refrigeration cooling functions, making the air conditioning system energy-saving by more than 35%.
Product advantages:
1. There is zero contact between indoor and outdoor air, no cross-contamination, and air quality is guaranteed.
2. Variable working conditions, one machine for multiple purposes.
3. High efficiency, energy saving, intelligent control.
4. Flexible installation to adapt to different project needs.
Low maintenance cost, long service life and high cost performance

Model No HRDX
Air volume 3000m³/h-50000m³/h
Panel material Double-layer insulation cotton board, color steel plate, galvanized steel plate, stainless steel plate
Cooling capacity 30KW-800KW
Product features Efficient and energy-saving
Heating capacity /
Humidification capacity /
Motor power 0.5KW-55KW
Pressure 250Pa-500Pa
Power supply 380V/3PH/50HZ-415V/3PH/50HZ
Cooling water coil 4 Rows-8 Rows
size Customizable
