Specifications
Brand Name :
XiTan Equipment
Model Number :
ZJB-132/132(A)
Certification :
CE;
Place of Origin :
China
MOQ :
1 set
Price :
Negotiation
Supply Ability :
200 set/year
Delivery Time :
7-120 days
Packaging Details :
Container
Payment Terms :
T/T
Structure :
Compact
Motor Power :
132 kw
Application :
Ground Improvement Construction
Performance :
High pressure, Variable Frequency
Inlet Diameter :
50 mm
Outlet Diameter :
25 mm
Package :
Nude, woody box, As customized
Condition :
New
Description

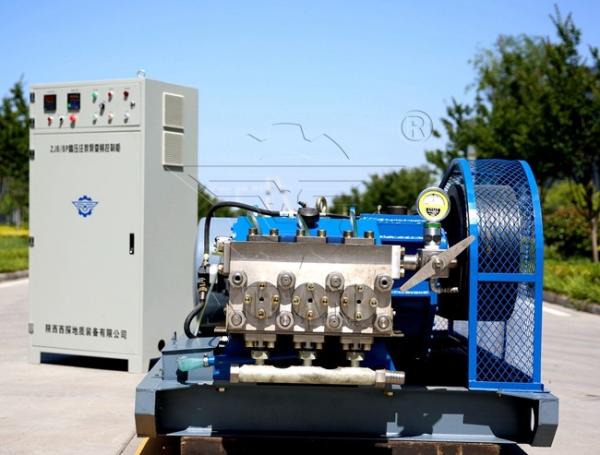

High-Pressure Mud Slurry Water Pump Triplex Motor or Diesel

Construction Application:

Grout Pump is used for grouting in soil, earth foundation stabilization, waterproofing, tunnel lining, underwater foundations, bridge decks, deep well casing, slope line grouting, etc.

Pump Structure:

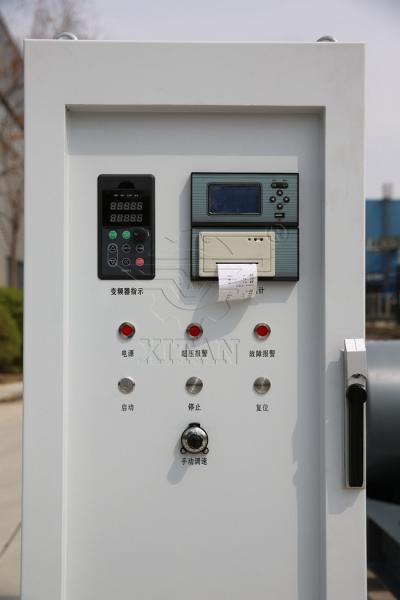

It is mainly composed of a pump head, pump body, frame, filter, VFD cabinet, grout inlet pipe, and tap of grout inlet.

Main Feature:

1. High Pressure

2. Variable Frequency

3. Pure cement grouting only

Technic Parameter

Model Name ZJB/BP132 ZJB/BP 132(A)
Plunger diameter 60mm 65mm
Plunger stroke 100mm 100mm
Maximum grouting flow 150L/min 170L/min
Maximum pressure 50MPa 50MPa
Motor power 132Kw 132Kw
Inlet diameter 50mm 50mm
Outlet diameter 25mm 25mm
Total weight 2900Kg 2900Kg
Dimensions

2673X1546X1100mm

2673X1546X1100mm
