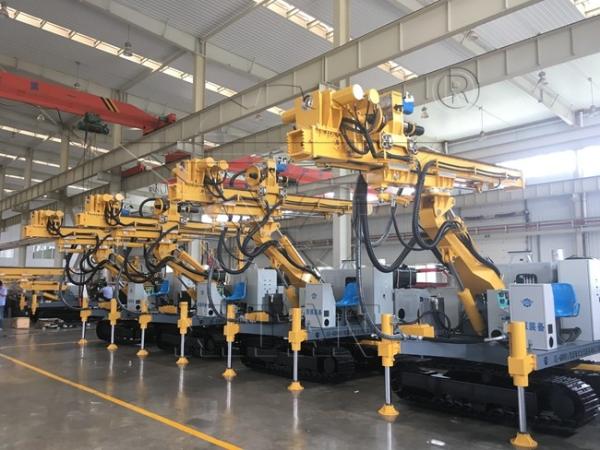

DTH or Casing Construction Drilling Rig Electric or Diesel Power Hydraulic System
DTH or Casing Construction Drilling Rig Electric or Diesel Power Hydraulic System
DTH or Casing Construction Drilling Rig Electric or Diesel Power Hydraulic System
DTH or Casing Construction Drilling Rig Electric or Diesel Power Hydraulic System
Specifications
Brand Name :
XiTan Equipment
Model Number :
GL-6000S
Certification :
CE; ISO9001:2015
Place of Origin :
China
MOQ :
1set
Price :
Negotiation
Payment Terms :
T/T
Supply Ability :
200 set/year
Delivery Time :
7-120 days
Packaging Details :
Container
Drilling Machine Name :
Borehole drilling machine
Drilling Rig :
Crawler mounted
Power System :
Electric/Diesel
Dimension :
5.6m×2m×2.93m
Drilling Hole :
110-400mm dia
Drilling Depth :
50-200m
Drilling Angle :
360°
Application Range :
Construction works,ground improvement
Drilling Rod Diameter :
Φ60mm,Φ89mm
Voltage :
As Requirement
Description

DTH or Casing Construction Drilling Rig Electric or Diesel Power Hydraulic System

Application of DTH or Casing Drilling Machine:

The DTH or Casing Drilling Machine can be appropriate for carbide bits drilling, rotation drilling, auger drilling, pneumatic DTH hammer drilling, and following-up casing drilling. Besides, extensional functions such as rotary jet grouting, swivel jet grouting, or fixed jet grouting drilling techniques can be done as well; This engineering driller can be applied in tunnels Pipe shed support, rock and soil anchoring, blasting holes, embankments,s and dam reinforcement, drilling hole for geothermal energy, hydrological wells, foundation pile construction and geological disaster treatment and other engineering fields.

Note: The user can choose diesel engine power, electric motor power, or diesel engine power/motor dual power.

Technical Data:

Mode GL6000S
Motor Motor 55kW Diesel 56kW
Weight 7.9t
Size 5600mm×2000mm×2930mm
Speed High 5.06 km/h Low 2.6km/h
Climbing Capacity 20°
Diameter Pile
Max Diameter Max 2.2m
Max Depth 200m
Power Head
Feeding Stroke 3m
Feeding Force 58kN
Rotation Speed Low 8～50.6r/min
High 16～101r/min
Lifting Power 110kN
Torque 3000N.m～6000N.m
Borehole
Depth 50～200m
Diameter 110～400mm
Drill pipe (diameter x length) 60～89×2500mm
Horizontal Hole Height High 3450mm Low 338mm
Column
Sliding Stroke 1200mm
Pitch Angle 120°
Swing Angle 0°～90°
Drill Arm Pitching Angle Elevation angle 35°

Pitch Angle

16°
Hydraulic System
Rated Flow Main Pump 100L/min
Sub-pump 30L/min 15L/min
Rated Pressure Main Pump 21MPa
Sub-pump 18MPa




DTH or Casing Construction Drilling Rig Electric or Diesel Power Hydraulic SystemDTH or Casing Construction Drilling Rig Electric or Diesel Power Hydraulic SystemDTH or Casing Construction Drilling Rig Electric or Diesel Power Hydraulic SystemDTH or Casing Construction Drilling Rig Electric or Diesel Power Hydraulic SystemDTH or Casing Construction Drilling Rig Electric or Diesel Power Hydraulic System
