Specifications
Brand Name :
XiTan Equipment
Model Number :
XL-3
Certification :
CE; ISO9001:2015
Place of Origin :
China
MOQ :
1set
Price :
Negotiation
Payment Terms :
T/T
Supply Ability :
200 pieces/year
Delivery Time :
7-120 days
Packaging Details :
Container
Condition :
New
Drill Hole Diameter :
100mm-200mm
Drill Hole Depth :
75m
Pile Diameter :
0.6-0.8m
Drilling Way :
Rotary
Type :
Crawler
Description

Diesel Engine High-pressure Construction Drill Rig for jet grouting anchor cable in Tajikistan

Description:

Diesel Engine High-pressure Construction Drill Rig for jet grouting anchor cable in Tajikistan is suitable for different requirements such as high-pressure jet grouting, jet grouting anchor cable, rock bolt supporting, single-tube, double-tube, and triple-tube spraying (swing spraying, fixed spraying, intermittent lifting), spraying anchor rope. And it is also applied to cemented carbide rotary drilling, screw drilling, pneumatic down-the-hole hammer drilling, pneumatic (DTH) hammer drilling with simultaneous casing tool (following pipe), engineering exploration, and other drilling techniques.

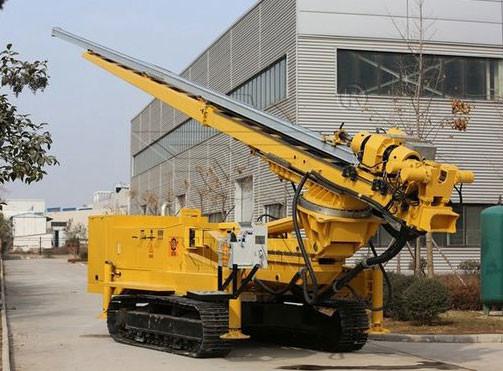

Diesel Engine High-pressure Construction Drill Rig for jet grouting anchor cable in Tajikistan

Technical Data:

Mode XL-3
Diesel Engine brand: Cummins model No.:4BTA3.9-C125
electric power: 93kw speed:2200 r/mp
Weight 26t
Size Working (mm) 9000×2800×19000
Transmission (mm) 8600×2800×3200
Speed 1km/h
Climbing Capacity 15°
Power Head
Stroke 4m
Diameter Ф94mm
Feeding Force 35kN
Rapid Lifting 0~8/0~11.8 m/min
Lifting/Pressurizing Speed of Power Head accurate speed adjustment of rotary jet:0.06~0.8/1.6 m/min
Gear Control Rotate Speed Maximum Torque
1 0~32r/min 13215Nm
2 0~132r/min 3199Nm
3 0~252r/min 1681Nm
4 0~500r/min 946Nm
Rated Lifting Force 120kN
Added Pressure 60kN
Column
Stretch 800m
Drill Tower Telescopic Distance 1500mm
Drilling Rig Height 14m
Mast Height 12m
Rob Length 16m
Main Swing Machine Swing Amplitude -18°~18°
Rig Swing Amplitude -90°~90°
Rotation Range of Rig Frame 360°(hydraulic drive)
Hydraulic Chuck spring clamp, hydraulic open

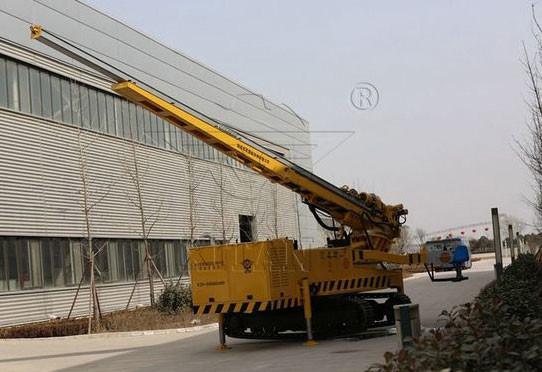

Diesel Engine High-pressure Construction Drill Rig for jet grouting anchor cable in Tajikistan

RFQ:

1. Are you the manufacturer?

Ans: Yes, we are a factory with more than 60years of manufacturing experience.

2. What are your terms of payment?

Ans: 50% deposit prepaid by T/T, and 50% before delivery. We'll show you the photos of the products and packages before you pay the balance.

3. How about your delivery time?

Ans: Common drilling rig have in stock, could delivery in one week after get your full payment.

Customize drilling rig will take 15-45 days after receiving your advance payment. The specific delivery depends on the items and the quantity of your order.

4. What is the warranty of our machine?

Ans: Our main machine enjoys one year warranty. But unreasonable operation and wearing parts exclude.

5. Do you test all your goods before delivery?

Ans: Yes, we have 100% test before delivery. And we will attach our inspection report for every machine.

6. Do you have after-service?
Ans: Yes, we have a special after-sales service team that will supply you with professional guidance. And we provide videos for machine installation and operation.

If you need, we can send our engineers to your worksite and provide the training for your staff.

Send your message to this supplier
Send Now

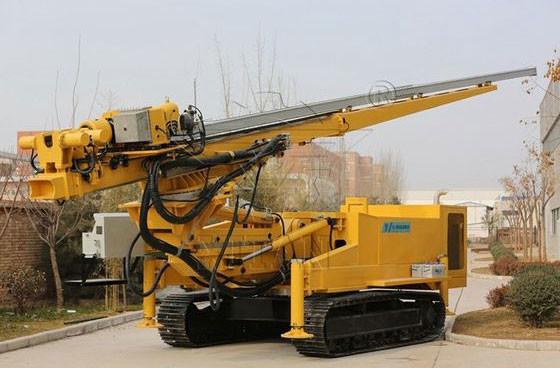

Diesel Engine High-pressure Construction Drill Rig for jet grouting anchor cable in Tajikistan
