12 Channels TLC5000 24 Hours ECG Holter with LCD Display Monitoring EKG System Heart Rate Tester
12 Channels TLC5000 24 Hours ECG Holter with LCD Display Monitoring EKG System Heart Rate Tester
12 Channels TLC5000 24 Hours ECG Holter with LCD Display Monitoring EKG System Heart Rate Tester
12 Channels TLC5000 24 Hours ECG Holter with LCD Display Monitoring EKG System Heart Rate Tester
12 Channels TLC5000 24 Hours ECG Holter with LCD Display Monitoring EKG System Heart Rate Tester
12 Channels TLC5000 24 Hours ECG Holter with LCD Display Monitoring EKG System Heart Rate Tester
Specifications
Place of Origin :
China
Brand Name :
HUGE OEM ODM
Certification :
CE RoHS
Model Number :
TLC5000
MOQ :
1PC
Price :
US $ 470-530 / PC
Packaging Details :
box
Delivery Time :
5-10days
Payment Terms :
TT paypay wester union
Supply Ability :
100000 PCS per Month
Description

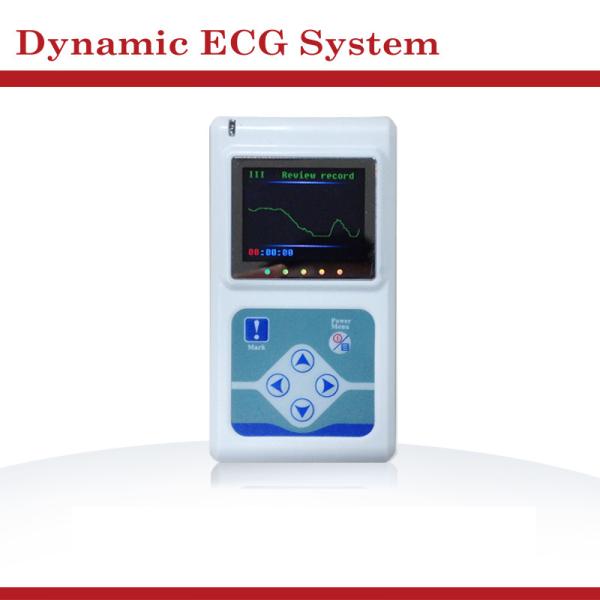

12 Channels TLC5000 24 Hours Holter ECG Holter with LCD Display ECG Monitoring EKG System Heart Rate Tester

Model no.: TLC5000

Features


1.The recorder can work stably, dependable and durable.
2.Be provided with the capability of anti-jamming and shock-pro.
3.Small volume with OLED screen. The resolution is 160*128.
4.Be provided with functions of waveform preview, record review and event marking.
5.Accurate record of the start time of the data sampled owing to the real time clock of itself.
6.Avoid damage owing to the repeating inserting and pulling out by using the inbuilt TF card to storage the data.
7.The maximum capability can be 2GB.

8.The average review time of single case can be less than 40 seconds by using interface of USB 2.0.
9.Record waveform details inextenso by the design of high precision and sampling frequency.
10.Record the state of pacemaker exactly by higher sampling frequency.
11.Record 24-hour DECG with the same standard of the ECG.


The features of software
1.Quick and accurate analysis system.
2.With 12 leads synchro analysis , QRS search can be more exactly.
3.There are more than 10 templates as atrial premature beat module, ventricular premature beat module, long interval module, atrial flutter module, atrial fibrillation module etc. and multiplicate User-defined templates could almost identify every kind of pathologic waveforms.
4.Optional main channel.
5.Agile and exact "Atrial Fibrillation" analysis.
6.The function of pacing analysis could analyse all pacemakers.
7.Many pacine modules have been added.
8.Any period of single lead or 12-leads ECG can be reviewed at any time with the function of fast waveform review and analysis.
9.The types of the analysis system of HR variability include five minutes of short ECG and one hour or 24-hour of long ECG.
10.Print report expediently.
11.Perfect function of case management.
12.With the function of ST segment analysis and general load of the disorder of the heart muscle, the physician can judge a disease or disorder of the heart muscle generally.
13."Sleep breath pause syndrome analysis", the physician could print sleep asphyxia analysis report and diagnose.
14."HRT" analysis, when the adjustable function is natural, this transitory change will be represented by the form of HRT immediately.
15."T Wave alternation" analysis is a important index on judging and preventing Arrhythmia .
16.The report has more reference value with the functions of VCG, VLP, TVCG and QTD analysis.

12 Channels TLC5000 24 Hours ECG Holter with LCD Display Monitoring EKG System Heart Rate Tester

Standard

Number of channels 12 channels
Sampling rate 10000Hz
Sampling accuracy 12bit
Recording time 24 h
Power 2 batteries in size 5
Interface USB2.0
Scale voltage 1mV±5%
Standard Sensitivity 10mm/mV±5%
Noise level ≤30μV
CMRR ≥60dB
Feathers of low frequency Time constant>3.2s
Scan speed 25mm/s±5%
Enduring polarization voltage ±300mV
Least measure signal 50 µV p-p
Product safety type Type B (Internally powered)
Size 111mm(L)*60mm(W)*25mm(H)
Net Weight 102g (Without battery)
