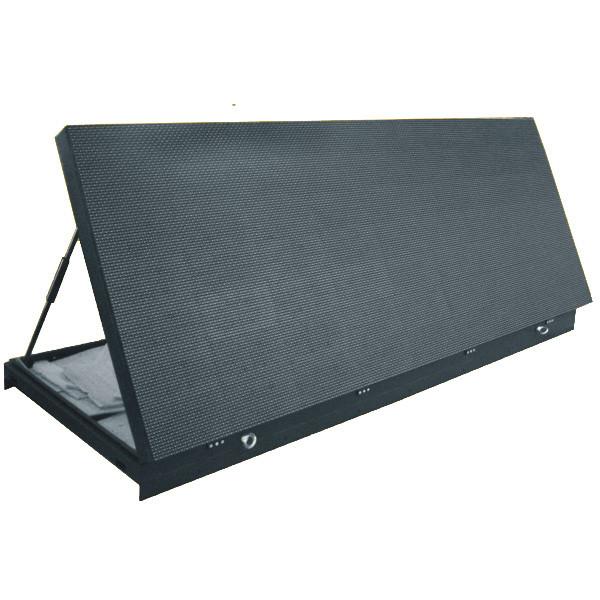

P13.33 DIP outdoor 3 in 1 led sign,led screen,led sign,Outdoor Digital Signage,LED Pantalla
P13.33 DIP outdoor 3 in 1 led sign,led screen,led sign,Outdoor Digital Signage,LED Pantalla
Specifications
Brand Name :
Jinhua
Model Number :
P13.33 DIP outdoor 3 in 1 led sign
Place of Origin :
Shenzhen,China
Payment Terms :
T/T,L/C
Supply Ability :
1000000sqm/month
Delivery Time :
20-15days
Packaging Details :
Wooden case/Flight case
Description

P13.33 outdoor DIP 3 in 1 led sign advantage:

1.Better color mix: Outdoor 3 in 1 dip module put RGB 3 chips into one lamp and lamp is one pixel. RGB 3 color mix inside of one lamp.

2.More close view distance: we can short view distance from 3 meter to see 10mm(Ph10) . And you won't see any RGB lamp even you see it so close.

3.Better Contrast Rate: we only have one lamp in one pixel. we have more black background on module. so it will have better contrast rate compared with traditional 1 R1G1B solutions.

4.Less Producing Cost: we realise full color on one lamp, and save two lamp cost compared with 1R1G1B solutions. we can save 30% cost with traditional led module.

P13.33 outdoor DIP 3 in 1 led sign parameter:

LED Module

 Module Type P13.33(3IN1)
DIP RGB DIP (R.G.B)3in1
Pixel Pitch 13.33mm
Module Resolution(W*H) 24*12 Pixels
Module Size(W*H*D) 320mm*160mm*27mm
Module Weight (g) 670g
Interface Definition HUB-08
Module Max Power Consumption(W) 35W

Cabinet

 Cabinet Resolution(W*H) 3*6
Module Quantity for Each Cabinet(W*H) 72*72
Cabinet Size (W*H*D) 960mm*960mm*167mm
Cabinet Area (SQM) 0.9216/sqm
Cabinet Weight 45KGS/sqm
Dots Density 5628Dots/sqm
Protection Grade Front IP65,Back IP54
Cabinet Flatness Clearance≤1mm

Electrical Parameter

 Power Consumption Max:645W/Cabinet；700W/sqm
Average :325W/Cabinet；350W/sqm
Operating Power AC220V±20%
Safety Standards ETL Domestic LED General Standard

Processing Performance

 Driving Mode Constant Current
Scan Mode 1/3S
Frame Rate 60Hz
Refresh Rate ≥800Hz

Optical Parameter

 White Balance Brightness ≥5500CD/sqm
Horizontal Viewing Angle 100°
Vertical Viewing Angle 50°
Best Viewing Distance 13m-195m
P13.33 outdoor DIP 3 in 1 led sign application:
Usually apply for stations, ports as guiding system, also apply for sports stadium, advertisement, marketplace,telecommunication, department, restaurant, entertainment as information system.
