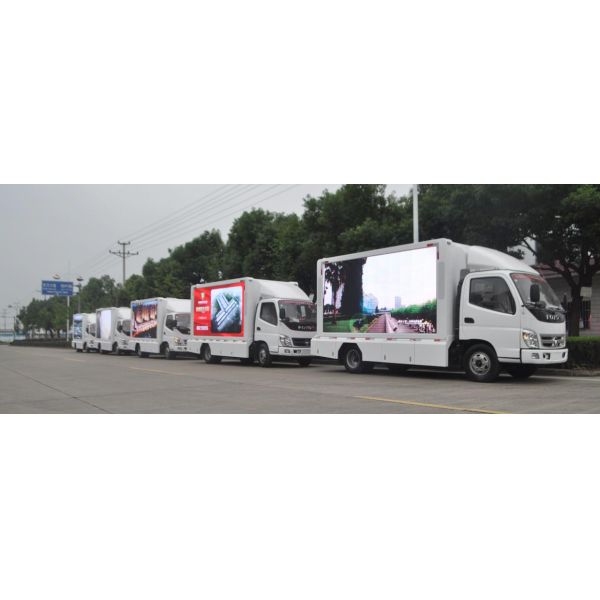

led mobile media truck display
led mobile media truck display
Specifications
Model Number :
led mobile media truck display
Place of Origin :
Shenzhen,China
Payment Terms :
T/T,L/C
Supply Ability :
1000000sqm/month
Delivery Time :
20-15days
Packaging Details :
Wooden case/Flight case
Description

led mobile media truck display

led mobile media truck display

Outdoor DIP 3 in 1 led display advantage:

1.Excellent Color Mix : RGB 3-color mix inside of one lamp. Outdoor DIP 3 in 1 module puts RGB 3 chips into one lamp and one lamp is one pixel.

2.Closer View-Distance: You won't see any RGB lamps even if you see it so close at 3meter distance!

3.Better Contrast Rate: Only one lamp in one pixel gives more black background on module which creates better contrast rate.

4.Save Cost:Using only one lamp instead of 3, cost saving up to 30% compare to traditional module.

P6.67 outdoor DIP 3 in 1 mobile media truck led display parameter:

LED Module

 Module Type P6.67(3IN1)
DIP RGB DIP (R.G.B)3in1
Pixel Pitch 6.67mm
Module Resolution(W*H) 48*24 Pixels
Module Size(W*H*D) 320mm*160mm*27mm
Module Weight (g) 1100g
Interface Definition HUB-75
Module Max Power Consumption(W) 40W

Cabinet

 Module Quantity for Each Cabinet(W*H) 2*4
Cabinet Resolution(W*H) 96*96
Cabinet Size (W*H*D) 640mm*640mm*96mm
Cabinet Area (sqm) 0.4096/sqm
Cabinet Weight 19.5kgs
Dots Density 22478 Dots/sqm
Protection Grade Front IP65,Back IP54
Cabinet Flatness Clearance≤1mm

Electrical Parameter

 Power Consumption Max:320W/Cabinet；780W/sqm
Average :160W/Cabinet；390W/sqm
Operating Power AC220V±20%
Safety Standards ETL

Processing Performance

 Driving Mode Constant Current
Scan Mode 1/6S
Frame Rate ≥60Hz
Refresh Rate ≥1000Hz

Optical Parameter

 White Balance Brightness ≥7500CD/sqm
Horizontal Viewing Angle 100°
Vertical Viewing Angle 50°
Best Viewing Distance 7m-100m

led mobile media truck display

led mobile media truck display

led mobile media truck display

led mobile media truck display
