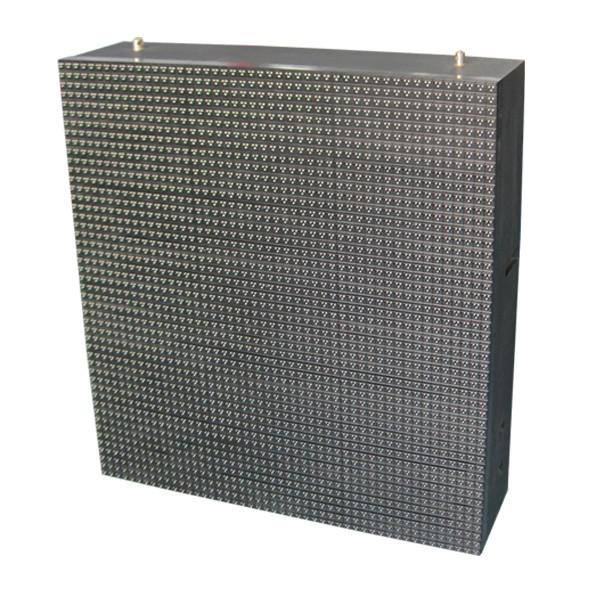

P8mm outdoor led signs,led display,led screen,outdoor signage,led sign board,digital billboard ,DIP 3 in 1 led sign
P8mm outdoor led signs,led display,led screen,outdoor signage,led sign board,digital billboard ,DIP 3 in 1 led sign
Specifications
Brand Name :
Jinhua
Model Number :
P8 DIP outdoor 3 in 1 led sign
Certification :
ETL,FCC,CE,Rohs
Place of Origin :
Shenzhen,China
Payment Terms :
T/T,L/C
Supply Ability :
1000000sqm/month
Delivery Time :
20-15days
Packaging Details :
Wooden case/Flight case
Description

P8mm outdoor DIP 3 in 1 Lamp

P8mm outdoor led signs,led display,led screen,outdoor signage,led sign board,digital billboard ,DIP 3 in 1 led sign

P8mm outdoor led signs,led display,led screen,outdoor signage,led sign board,digital billboard ,DIP 3 in 1 led sign

P8mm outdoor led signs,led display,led screen,outdoor signage,led sign board,digital billboard ,DIP 3 in 1 led sign

P8mm outdoor led signs,led display,led screen,outdoor signage,led sign board,digital billboard ,DIP 3 in 1 led sign

P8mm outdoor led signs,led display,led screen,outdoor signage,led sign board,digital billboard ,DIP 3 in 1 led sign

P8mm outdoor led signs,led display,led screen,outdoor signage,led sign board,digital billboard ,DIP 3 in 1 led sign

P8mm outdoor led signs,led display,led screen,outdoor signage,led sign board,digital billboard ,DIP 3 in 1 led sign

P8mm outdoor led signs,led display,led screen,outdoor signage,led sign board,digital billboard ,DIP 3 in 1 led sign

Outdoor DIP 3 in 1 with ETL/FCC Listed,8500nitd brightness,the best lamp for outdoor led sign and digital Billboard.
1. Better color mix : Outdoor 3 in 1 dip module put RGB 3 chips into one lamp and lamp is one pixel. RGB 3 color mix inside of one lamp.
2. More closer view distance : we can short view distance from 3 meter to see 10mm(Ph10) . And you won't see any RGB lamp even you see it so close.
3. Better Contrast Rate: we only have one lamp in one pixel. we have more black background on module. so it will have better contrast rate compared with traditional 1 R1G1B solutions.

P8 outdoor DIP 3 in 1 Billborad parameter:

LED Module

 Module Type P8(3IN1)
DIP RGB DIP (R.G.B)3in1
Pixel Pitch 8mm
Module Resolution(W*H) 40*20 Pixels
Module Size(W*H*D) 320mm*160mm*27mm
Module Weight (g) 880g
Interface Definition HUB-75
Module Max Power Consumption(W) 35W

Cabinet

 Cabinet Resolution(W*H) 2*4
Module Quantity for Each Cabinet(W*H) 80*80
Cabinet Size (W*H*D) 640mm*640mm*96mm
Cabinet Area (sqm) 0.4096sqm
Cabinet Weight 17.8kgs
Dots Density 15625Dots/sqm
Protection Grade Front IP65,Back IP54
Cabinet Flatness Clearance≤1mm

Electrical Parameter

 Power Consumption Max:290W/Cabinet；720W/sqm
Average :145W/Cabinet；350W/sqm
Operating Power AC220V±20%
Safety Standards ETL&FCC
Driving Mode Constant Current
Scan Mode 1/5S
Frame Rate ≥60Hz
Refresh Rate ≥1000Hz

Processing Performance

 White Balance Brightness ≥7500CD/sqm
Horizontal Viewing Angle 100°
Vertical Viewing Angle 50°
Best Viewing Distance 8m-120m
P8 outdoor DIP 3 in 1 Billboard:
P8mm outdoor led signs,led display,led screen,outdoor signage,led sign board,digital billboard ,DIP 3 in 1 led sign
P8mm outdoor led signs,led display,led screen,outdoor signage,led sign board,digital billboard ,DIP 3 in 1 led sign
